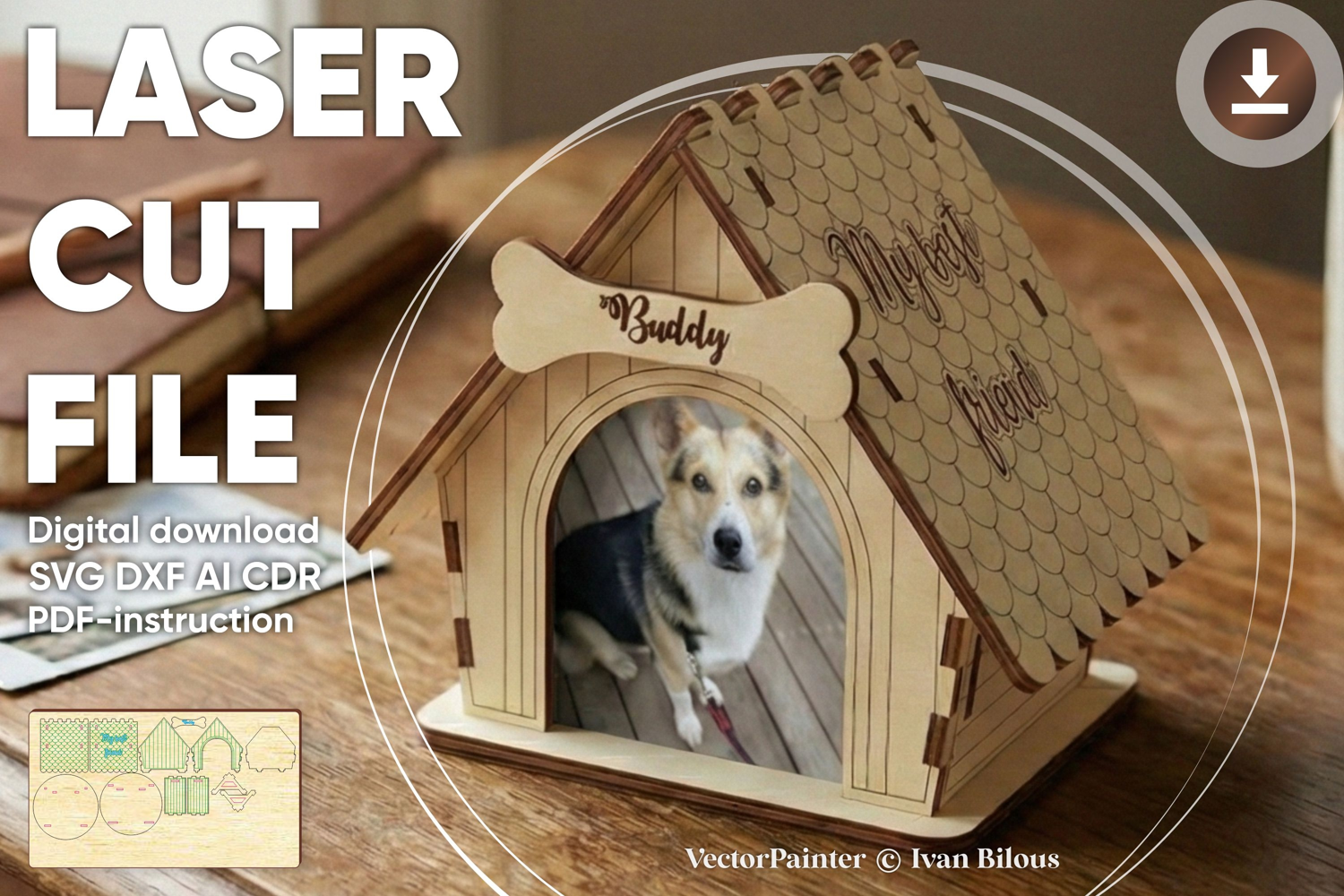

Model "Dog House Photo frame". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 126 x 126 x 110 mm (4,96 x 4,96 x 4,33'')
1/8''(3.175mm) thickness: 133 x 133 x 116 mm (5,25 x 5,25 x 4,58'')
4 mm thickness: 168 x 168 x 147 mm (6,61 x 6,61 x 5,77'')
6 mm thickness: 252 x 252 x 220 mm (9,92 x 9,92 x 8,66'')
1/4''(6.35mm) thickness: 267 x 267 x 233 mm (10,50 x 10,50 x 9,17'')
Work area:
3 mm thickness: 56 x 237 mm (2,20 x 9,33'')
1/8''(3.175mm) thickness: 59 x 251 mm (2,33 x 9,88'')
4 mm thickness: 75 x 316 mm (2,94 x 12,44'')
6 mm thickness: 112 x 474 mm (4,41 x 18,66'')
1/4''(6.35mm) thickness: 119 x 502 mm (4,67 x 19,75'')
Biggest part:
3 mm thickness: 126 x 126 mm (4,96 x 4,96'')
1/8''(3.175mm) thickness: 133 x 133 mm (5,25 x 5,25'')
4 mm thickness: 168 x 168 mm (6,61 x 6,61'')
6 mm thickness: 252 x 252 mm (9,92 x 9,92'')
1/4''(6.35mm) thickness: 267 x 267 mm (10,50 x 10,50'')
In the file:
green color - score (cut mode with low power and high speed)
blue color - engrave
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instructions
If you have any questions feel free to contact me:)
