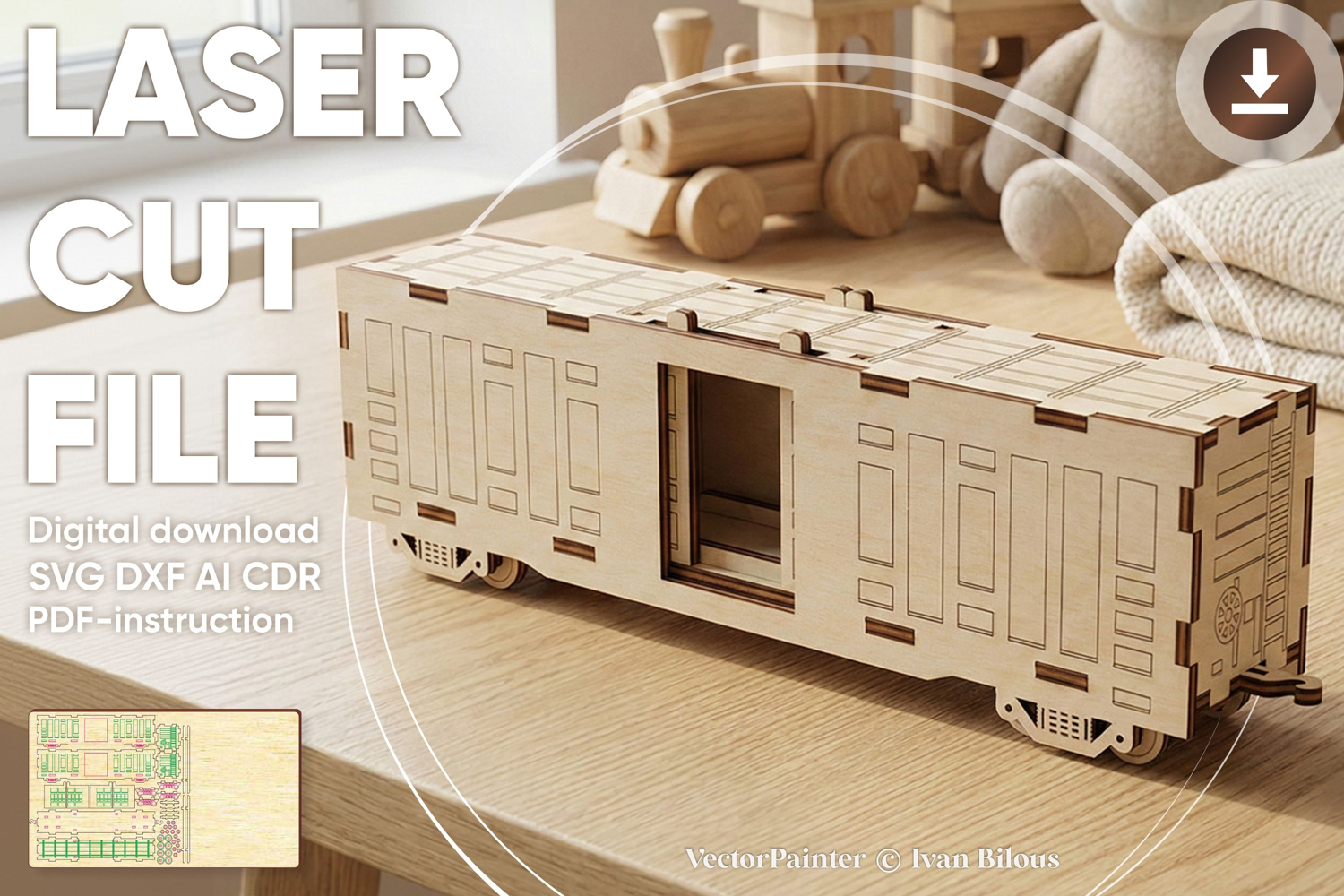

Laser cut design "Railway carriage". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 242 x 44 x 64 mm (9,53 x 1,73 x 2,52'')
1/8''(3.175mm) thickness: 256 x 47 x 68 mm (10,08 x 1,83 x 2,67'')
4 mm thickness: 323 x 59 x 85 mm (12,70 x 2,31 x 3,36'')
6 mm thickness: 484 x 88 x 128 mm (19,06 x 3,46 x 5,04'')
1/4''(6.35mm) thickness: 512 x 93 x 135 mm (20,17 x 3,67 x 5,33'')
Work area:
3 mm thickness: 290 x 268 mm (11,42 x 10,55'')
1/8''(3.175mm) thickness: 307 x 284 mm (12,08 x 11,17'')
4 mm thickness: 387 x 357 mm (15,22 x 14,07'')
6 mm thickness: 580 x 536 mm (22,83 x 21,10'')
1/4''(6.35mm) thickness: 614 x 567 mm (24,17 x 22,33'')
In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
The wheels can moving, the doors can open and close (to slide)
