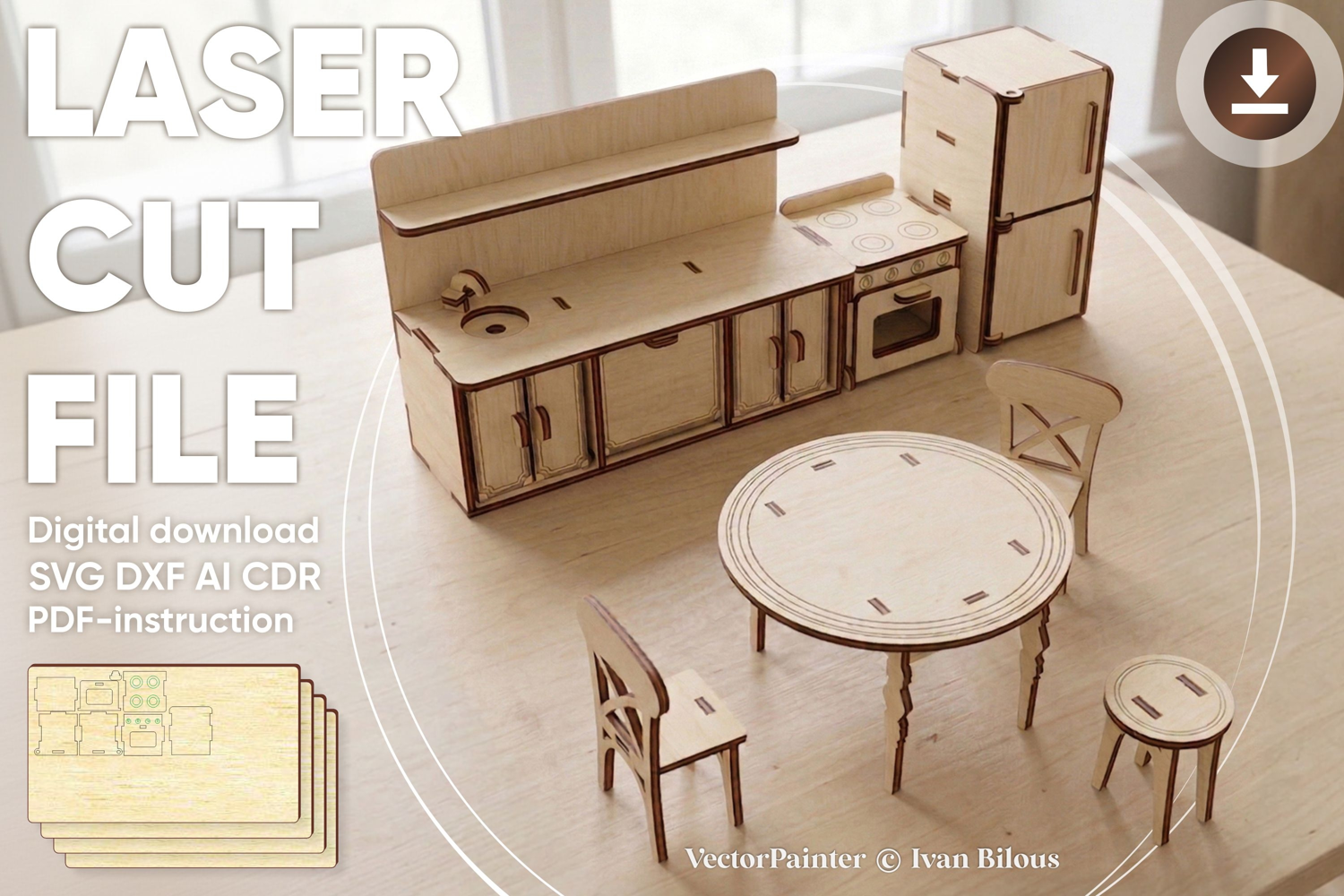

Laser cut design "Kitchen". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Size of the biggest furniture (Tabletop):
3 mm thickness: 160 x 63 x 120 mm (6,30 x 2,48 x 4,72'')
1/8''(3.175mm) thickness: 169 x 67 x 127 mm (6,67 x 2,63 x 5,00'')
4 mm thickness: 213 x 84 x 160 mm (8,40 x 3,31 x 6,30'')
6 mm thickness: 320 x 126 x 240 mm (12,60 x 4,96 x 9,45'')
1/4''(6.35mm) thickness: 339 x 133 x 254 mm (13,33 x 5,25 x 10,00'')
Work area of the biggest furniture (Tabletop):
3 mm thickness: 494 x 178 mm (19,45 x 7,01'')
1/8''(3.175mm) thickness: 523 x 188 mm (20,58 x 7,42'')
4 mm thickness: 659 x 237 mm (25,93 x 9,34'')
6 mm thickness: 988 x 356 mm (38,90 x 14,02'')
1/4''(6.35mm) thickness: 1046 x 377 mm (41,17 x 14,83'')
Biggest part of the biggest furniture (Tabletop):
3 mm thickness: 160 x 120 mm (6,30 x 4,72'')
1/8''(3.175mm) thickness: 169 x 127 mm (6,67 x 5,00'')
4 mm thickness: 213 x 160 mm (8,40 x 6,30'')
6 mm thickness: 320 x 240 mm (12,60 x 9,45'')
1/4''(6.35mm) thickness: 339 x 254 mm (13,33 x 10,00'')
In the file:
blue color - engrave
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
