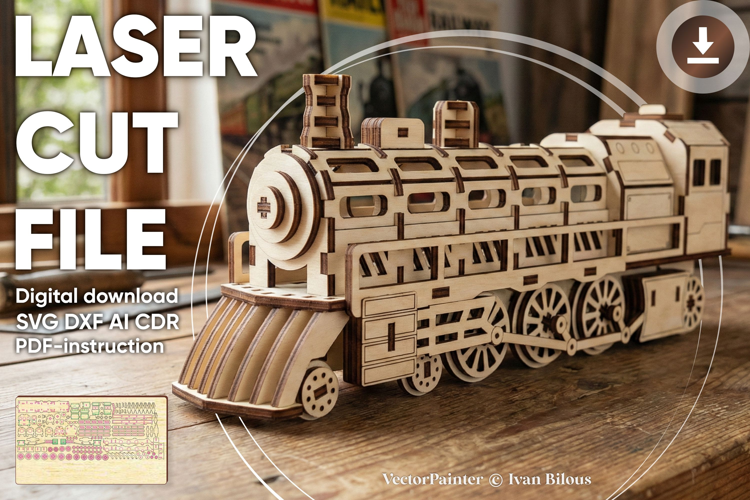

Laser cut design "Locomotive". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 264 x 55 x 94 mm (10.39 x 2.17 x 3.69'')
1/8''(3.175mm) thickness: 279 x 58 x 99 mm (11.00 x 2.29 x 3.92'')
4 mm thickness: 352 x 73 x 125 mm (13.86 x 2.89 x 4.93'')
6 mm thickness: 377 x 96 x 139 mm (14.84 x 3.78 x 5.47'')
1/4''(6.35mm) thickness: 399 x 102 x 147 mm (15.71 x 4.00 x 5.79'')
Work area:
3 mm thickness: 677 x 274 mm (26.65 x 10.79'')
1/8''(3.175mm) thickness: 716 x 290 mm (28.21 x 11.42'')
4 mm thickness: 903 x 365 mm (35.54 x 14.38'')
6 mm thickness: 1354 x 548 mm (53.31 x 21.57'')
1/4''(6.35mm) thickness: 1433 x 580 mm (56.42 x 22.83'')
In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting
If you have any questions feel free to contact me:)
