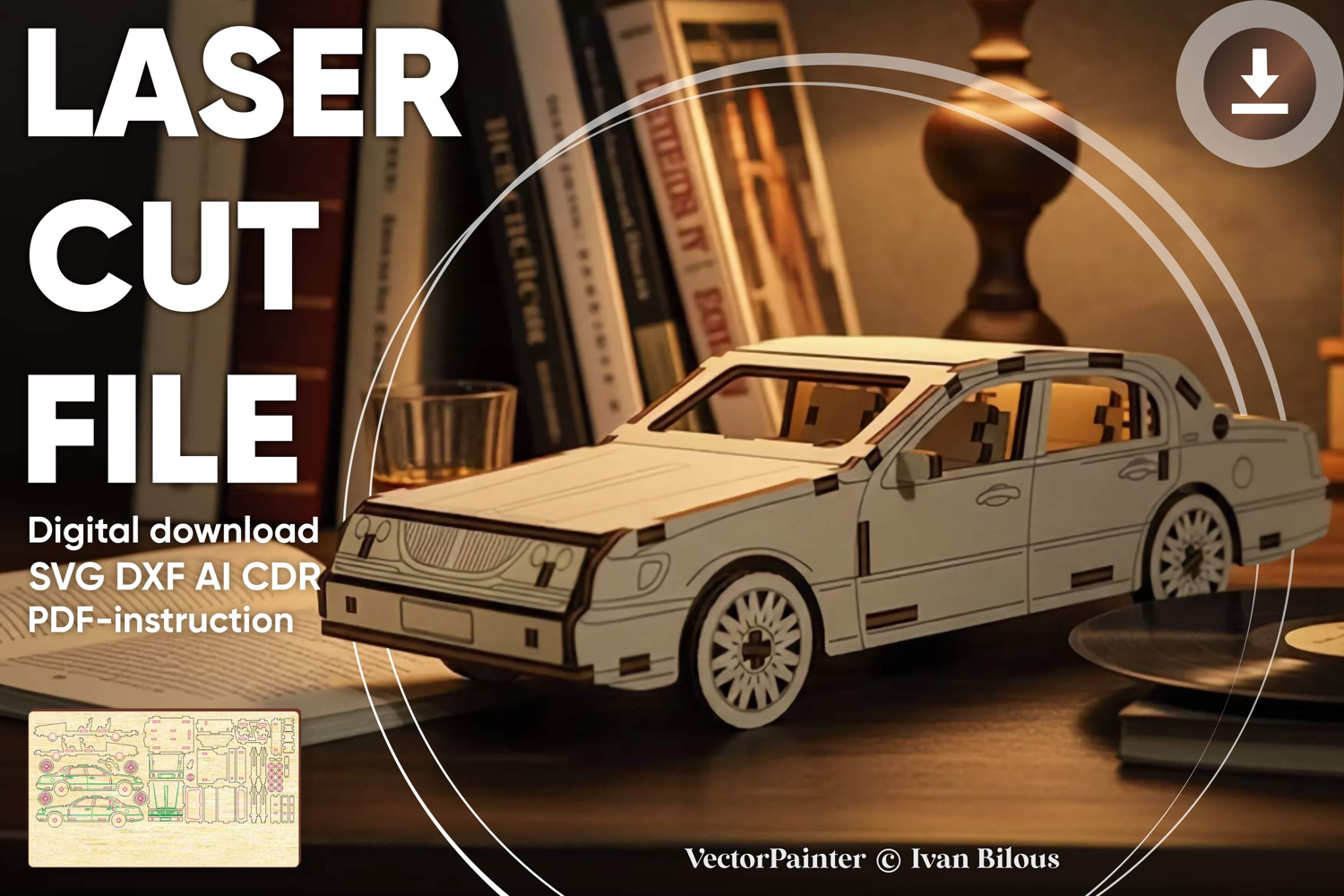

Laser cut design "Car". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 202 x 85 x 59 mm (7.95 x 3.35 x 2.32'')
1/8''(3.175mm) thickness: 214 x 90 x 62 mm (8.42 x 3.54 x 2.46'')
4 mm thickness: 269 x 113 x 79 mm (10.60 x 4.46 x 3.10'')
6 mm thickness: 404 x 170 x 118 mm (15.91 x 6.69 x 4.65'')
1/4''(6.35mm) thickness: 428 x 180 x 125 mm (16.83 x 7.08 x 4.92'')
Work area:
3 mm thickness: 491 x 209 mm (19.33 x 8.23'')
1/8''(3.175mm) thickness: 520 x 221 mm (20.46 x 8.71'')
4 mm thickness: 655 x 279 mm (25.77 x 10.97'')
6 mm thickness: 982 x 418 mm (38.66 x 16.46'')
1/4''(6.35mm) thickness: 1039 x 442 mm (40.92 x 17.42'')
In the file:
green color - draw (cut with little power and big speed)
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
