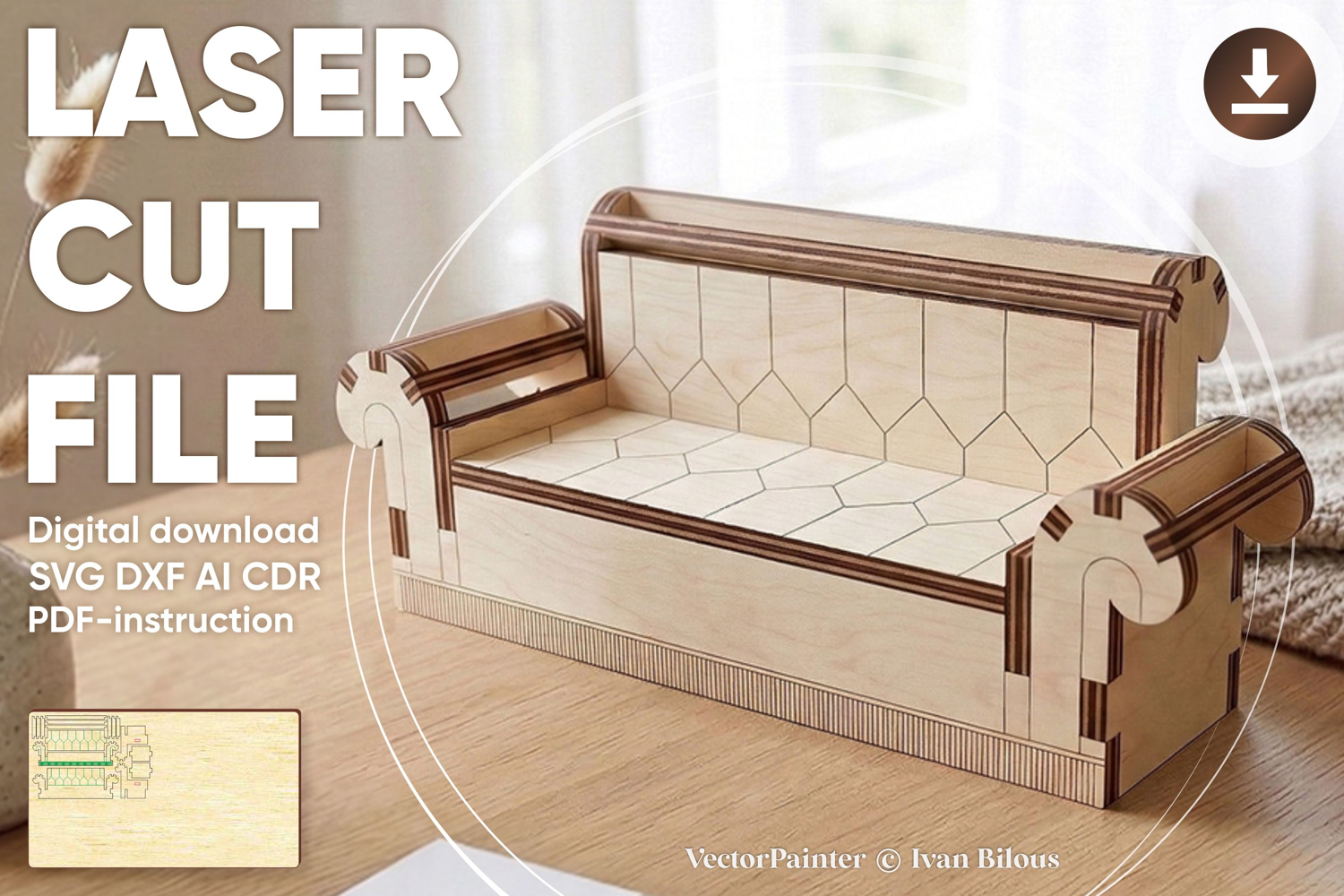

Sofa dollhouse furniture - laser cut file

Laser cut design  "Sofa". Vector plan for CNC.

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 115 x 30 x 47 mm (4.53 x 1.18 x 1.85'')

1/8''(3.175mm) thickness: 122 x 32 x 50 mm (4.79 x 1.25 x 1.96'')

4 mm thickness: 153 x 40 x 63 mm (6.04 x 1.57 x 2.47'')

6 mm thickness: 230 x 60 x 94 mm (9.06 x 2.36 x 3.70'')

1/4''(6.35mm) thickness: 243 x 64 x 99 mm (9.58 x 2.50 x 3.92'')

Work area:

3 mm thickness: 258 x 181 mm (10.16 x 7.13'')

1/8''(3.175mm) thickness: 273 x 192 mm (10.75 x 7.54'')

4 mm thickness: 344 x 241 mm (13.54 x 9.50'')

6 mm thickness: 516 x 362 mm (20.31 x 14.25'')

1/4''(6.35mm) thickness: 546 x 383 mm (21.50 x 15.08'')

In the file:

green color - draw/score (cut with little power and big speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
