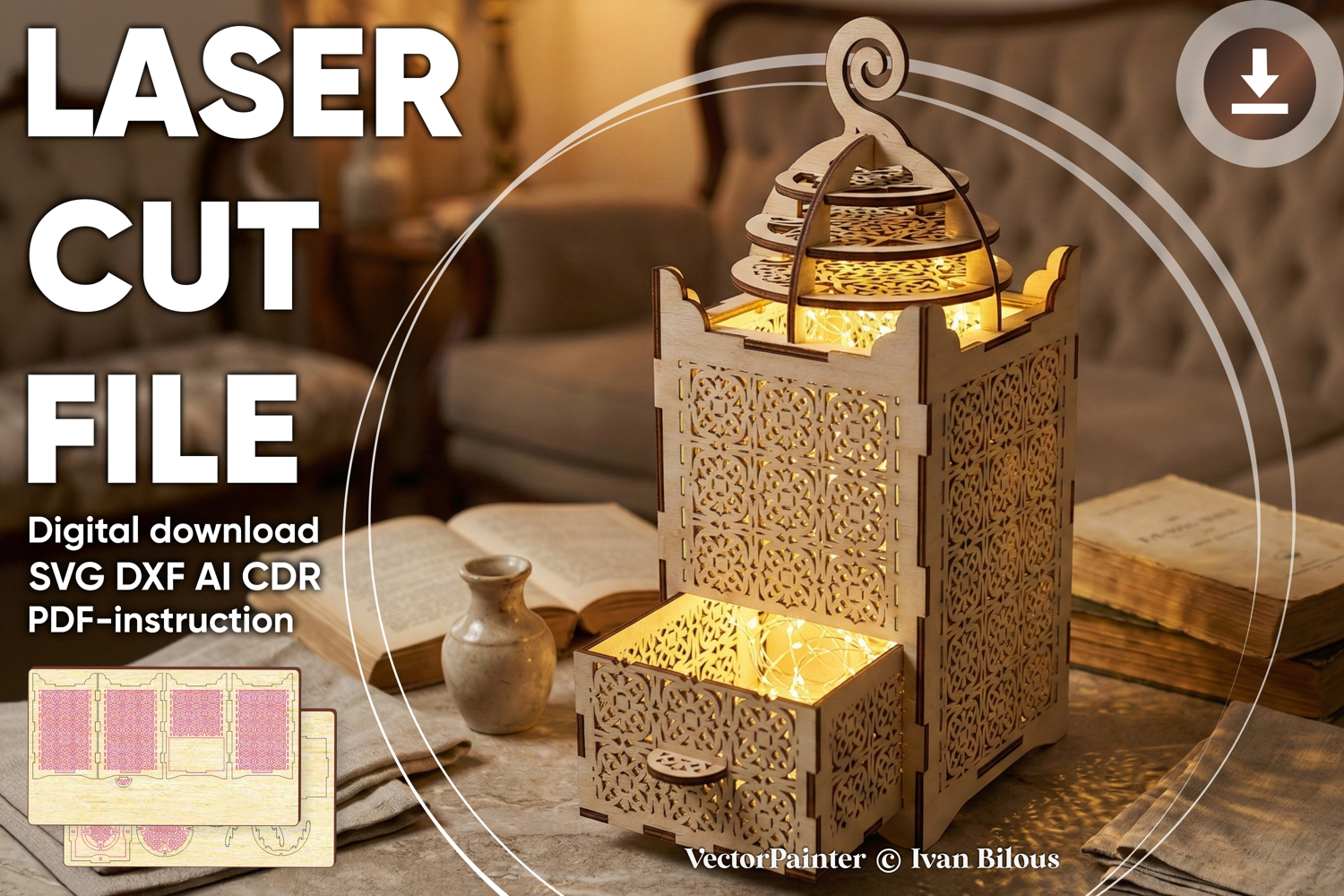

Laser cut design "Shadow lamp". Vector plan for CNC.
Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 100 x 100 x 234 mm (3,94 x 3,94 x 9,21'')
1/8''(3.175mm) thickness: 106 x 106 x 248 mm (4,17 x 4,17 x 9,75'')
4 mm thickness: 133 x 133 x 312 mm (5,25 x 5,25 x 12,28'')
6 mm thickness: 200 x 200 x 468 mm (7,87 x 7,87 x 18,43'')
1/4''(6.35mm) thickness: 212 x 212 x 495 mm (8,33 x 8,33 x 19,50'')
Work area:
3 mm thickness: 411 x 365 mm (16,18 x 14,37'')
1/8''(3.175mm) thickness: 435 x 386 mm (17,13 x 15,21'')
4 mm thickness: 548 x 487 mm (21,57 x 19,16'')
6 mm thickness: 822 x 730 mm (32,36 x 28,74'')
1/4''(6.35mm) thickness: 870 x 773 mm (34,25 x 30,42'')
Biggest part:
3 mm thickness: 100 x 164 mm (3,94 x 6,46'')
1/8''(3.175mm) thickness: 106 x 174 mm (4,17 x 6,83'')
4 mm thickness: 133 x 219 mm (5,25 x 8,61'')
6 mm thickness: 200 x 328 mm (7,87 x 12,91'')
1/4''(6.35mm) thickness: 212 x 347 mm (8,33 x 13,67'')
In the file:
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
