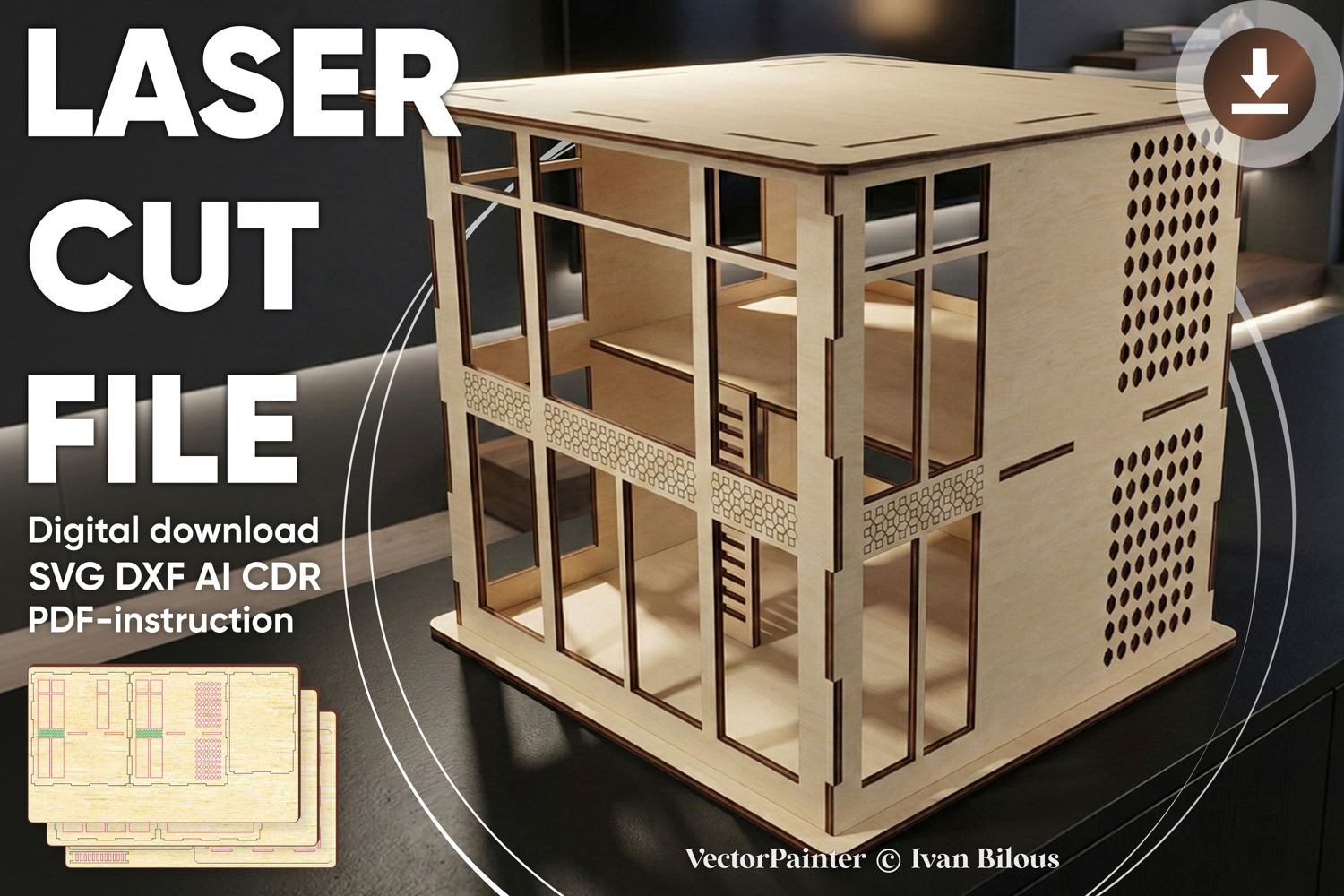

Hi Tech dollhouse - laser cutting file, Glowforge pattern

Laser cut design "Hi Tech dollhouse". Vector plan for laser cutting machine

Material thickness: 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 200 x 194 x 186 mm (7,87 x 7,64 x 7,32'')

1/8''(3.175mm) thickness: 212 x 205 x 197 mm (8,33 x 8,08 x 7,75'')

4 mm thickness: 267 x 259 x 248 mm (10,50 x 10,18 x 9,76'')

6 mm thickness: 400 x 388 x 372 mm (15,75 x 15,28 x 14,65'')

1/4''(6.35mm) thickness: 423 x 411 x 394 mm (16,67 x 16,17 x 15,50'')

Work area:

3 mm thickness: 772 x 385 mm (30,39 x 15,16'')

1/8''(3.175mm) thickness: 817 x 407 mm (32,17 x 16,04'') ( 3 Glowforge sheets)

4 mm thickness: 1029 x 513 mm (40,52 x 20,21'')

6 mm thickness: 1544 x 770 mm (60,79 x 30,31'')

1/4''(6.35mm) thickness: 1634 x 815 mm (64,33 x 32,08'')

Biggest part:

3 mm thickness: 200 x 194 mm (7,87 x 7,64'')

1/8''(3.175mm) thickness: 212 x 205 mm (8,33 x 8,08'')

4 mm thickness: 267 x 259 mm (10,50 x 10,18'')

6 mm thickness: 400 x 388 mm (15,75 x 15,28'')

1/4''(6.35mm) thickness: 423 x 411 mm (16,67 x 16,17'')

In the file:

green color - score / drawing

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
