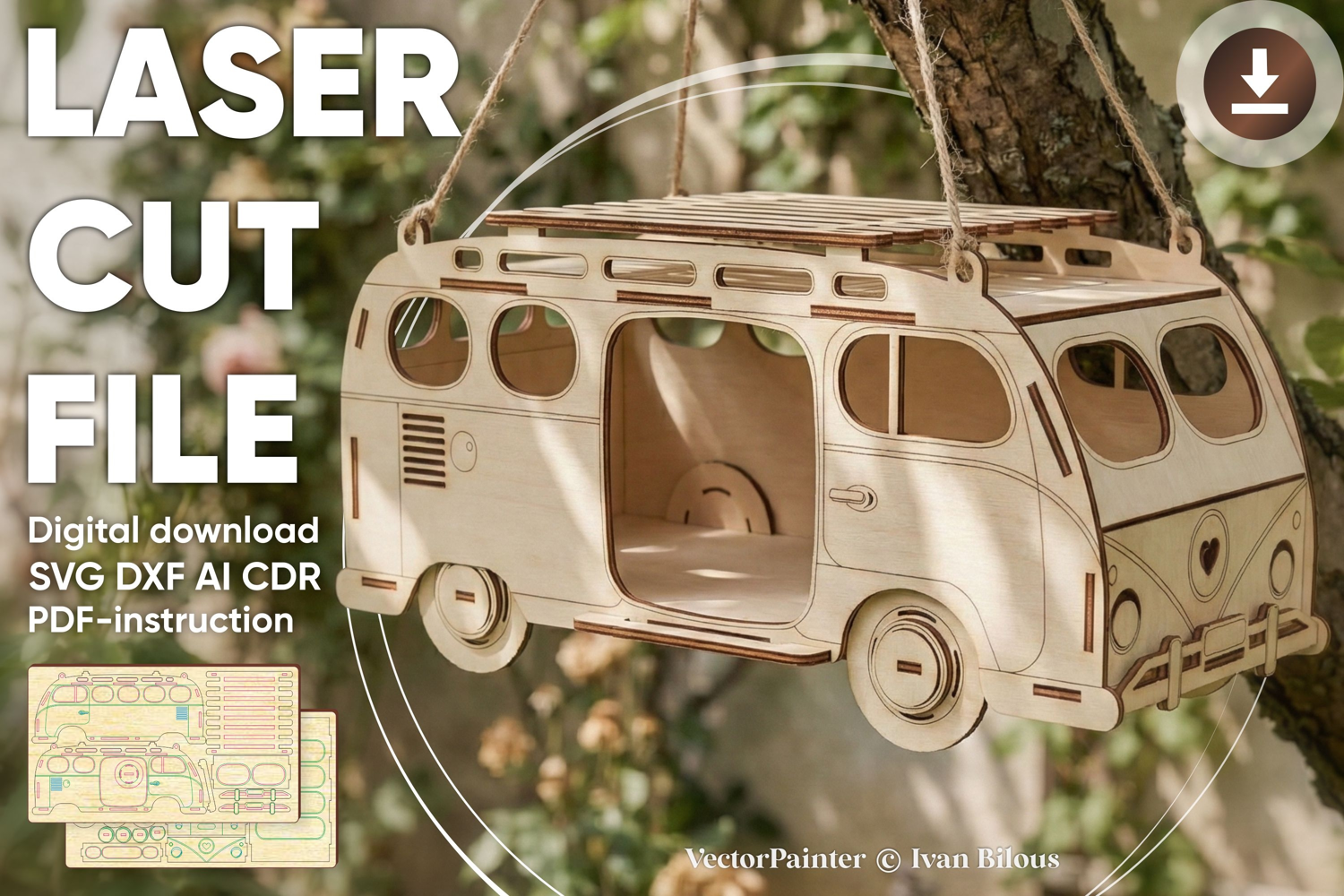

Camper Car Birdhouse - laser cut file, Glowforge pattern

Laser cut design "Camper Car Birdhouse". Vector plan for CNC.

Material thickness (versions of the files): 3mm, 1/8''(3.175mm) , 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 289 x 138 x 135 mm (11,38 x 5,43 x 5,31'')

1/8''(3.175mm) thickness: 306 x 146 x 143 mm (12,04 x 5,75 x 5,63'')

4 mm thickness: 385 x 184 x 180 mm (15,17 x 7,24 x 7,09'')

6 mm thickness: 578 x 276 x 270 mm (22,76 x 10,87 x 10,63'')

1/4''(6.35mm) thickness: 612 x 292 x 286 mm (24,08 x 11,50 x 11,25'')

Work area:

3 mm thickness: 856 x 238 mm (33,70 x 9,37'')

1/8''(3.175mm) thickness: 906 x 252 mm (35,67 x 9,92'') - 2 Glowforge sheets

4 mm thickness: 1141 x 317 mm (44,93 x 12,49'')

6 mm thickness: 1712 x 476 mm (67,40 x 18,74'')

1/4''(6.35mm) thickness: 1812 x 504 mm (71,33 x 19,83'')

Biggest part:

3 mm thickness: 285 x 131 mm (11,22 x 5,16'')

1/8''(3.175mm) thickness: 302 x 139 mm (11,88 x 5,46'')

4 mm thickness: 380 x 175 mm (14,96 x 6,88'')

6 mm thickness: 570 x 262 mm (22,44 x 10,31'')

1/4''(6.35mm) thickness: 603 x 277 mm (23,75 x 10,92'')

In the file:

blue color - engrave

green color - score (cut mode with low power and high speed)

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instructions

If you have any questions feel free to contact me:)
