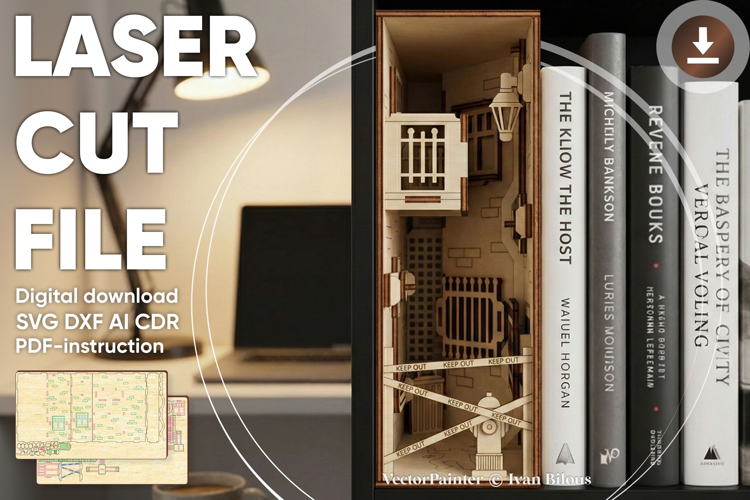

Crime scene Book nook shelf insert - laser cut file, SVG DXF

Laser cut design "Crime Scene Book Nook". Vector plan for CNC.

Material thickness: 3mm or 1/8''(3.175mm) or 4mm

Sizes:

3 mm thickness: 155 x 68 x 201 mm (6,10 x 2,68 x 7,91'')

1/8''(3.175mm) thickness: 164 x 72 x 213 mm (6,46 x 2,83 x 8,38'')

4 mm thickness: 207 x 91 x 268 mm (8,14 x 3,57 x 10,55''

Work area:

3 mm thickness: 858 x 240 mm (33,78 x 9,45'')

1/8''(3.175mm) thickness: 908 x 254 mm (35,75 x 10,00'')

4 mm thickness: 1144 x 320 mm (45,04 x 12,60'')

Biggest part:

3 mm thickness: 158 x 202 mm (6,22 x 7,95'')

1/8''(3.175mm) thickness: 167 x 214 mm (6,58 x 8,42'')

4 mm thickness: 211 x 269 mm (8,29 x 10,60'')

In the file:

green color - score / draw (cut with low power and high speed)

blue color - engrave

pink color - cut

black color - cut

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)
