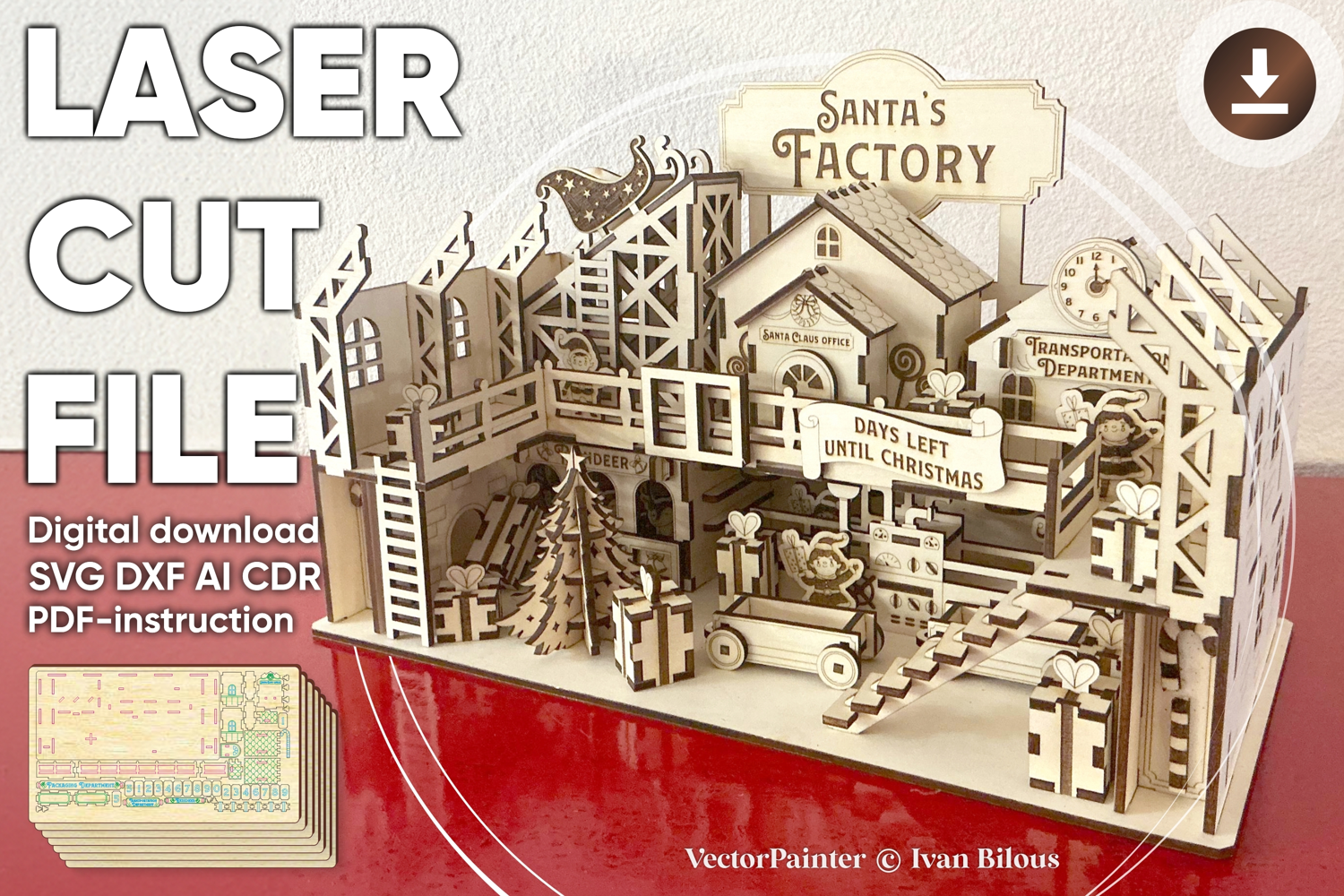

Laser cut design "Santa's Factory". Vector plan for laser cutting machine
This is the factory of Santa Claus himself!
If you look closely, you can see here his office, reindeer, runway with sledges, elves, transport and packaging departments.
In the center, you can count the number of days left until Christmas. You can keep the rest of the numbers in Santa's office (the roof in his house is removable)
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 310 x 150 x 198 mm (12,20 x 5,91 x 7,80'')
1/8''(3.175mm) thickness: 328 x 159 x 210 mm (12,92 x 6,25 x 8,25'')
4 mm thickness: 413 x 200 x 264 mm (16,27 x 7,87 x 10,39'')
6 mm thickness: 620 x 300 x 396 mm (24,41 x 11,81 x 15,59'')
1/4''(6.35mm) thickness: 656 x 318 x 419 mm (25,83 x 12,50 x 16,50'')
Work area:
3 mm thickness: 868 x 570 mm (34,17 x 22,44'')
1/8''(3.175mm) thickness: 919 x 603 mm (36,17 x 23,75'') 4 Glowforge sheets + 10.9 x 3.6in of the 5th sheet
4 mm thickness: 1157 x 760 mm (45,56 x 29,92'')
6 mm thickness: 1736 x 1140 mm (68,35 x 44,88'')
1/4''(6.35mm) thickness: 1837 x 1207 mm (72,33 x 47,50'')
Biggest part:
3 mm thickness: 310 x 150 mm (12,20 x 5,91'')
1/8''(3.175mm) thickness: 328 x 159 mm (12,92 x 6,25'')
4 mm thickness: 413 x 200 mm (16,27 x 7,87'')
6 mm thickness: 620 x 300 mm (24,41 x 11,81'')
1/4''(6.35mm) thickness: 656 x 318 mm (25,83 x 12,50'')
In the file:
green color - score/drawing (cut mode with low power and high speed)
blue color - engrave
pink color - cut
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
