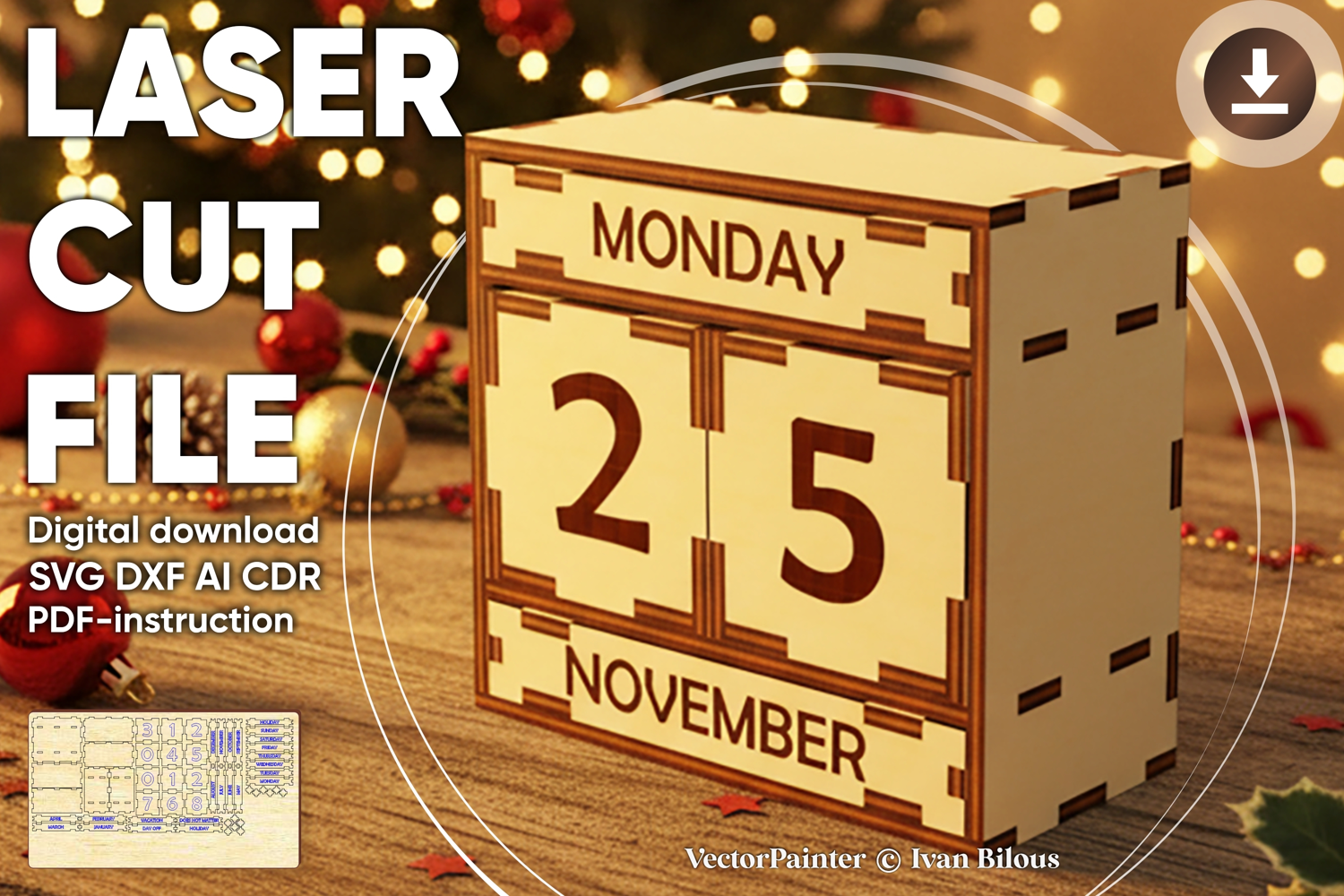

Laser cut design "Perpetual calendar". Vector plan for laser cutting machine
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 49 x 100 x 92 mm (1,93 x 3,94 x 3,62'')
1/8''(3.175mm) thickness: 52 x 106 x 97 mm (2,04 x 4,17 x 3,83'')
4 mm thickness: 65 x 133 x 123 mm (2,57 x 5,25 x 4,83'')
6 mm thickness: 98 x 200 x 184 mm (3,86 x 7,87 x 7,24'')
1/4''(6.35mm) thickness: 104 x 212 x 195 mm (4,08 x 8,33 x 7,67'')
Work area:
3 mm thickness: 521 x 236 mm (20,51 x 9,29'')
1/8''(3.175mm) thickness: 551 x 250 mm (21,71 x 9,83'')
4 mm thickness: 695 x 315 mm (27,35 x 12,39'')
6 mm thickness: 1042 x 472 mm (41,02 x 18,58'')
1/4''(6.35mm) thickness: 1103 x 500 mm (43,42 x 19,67'')
Biggest part:
3 mm thickness: 100 x 92 mm (3,94 x 3,62'')
1/8''(3.175mm) thickness: 106 x 97 mm (4,17 x 3,83'')
4 mm thickness: 133 x 123 mm (5,25 x 4,83'')
6 mm thickness: 200 x 184 mm (7,87 x 7,24'')
1/4''(6.35mm) thickness: 212 x 195 mm (8,33 x 7,67'')
In the file:
blue color - engrave
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
