Horse Barn - laser cut file, SVG DXF plan for laser machine

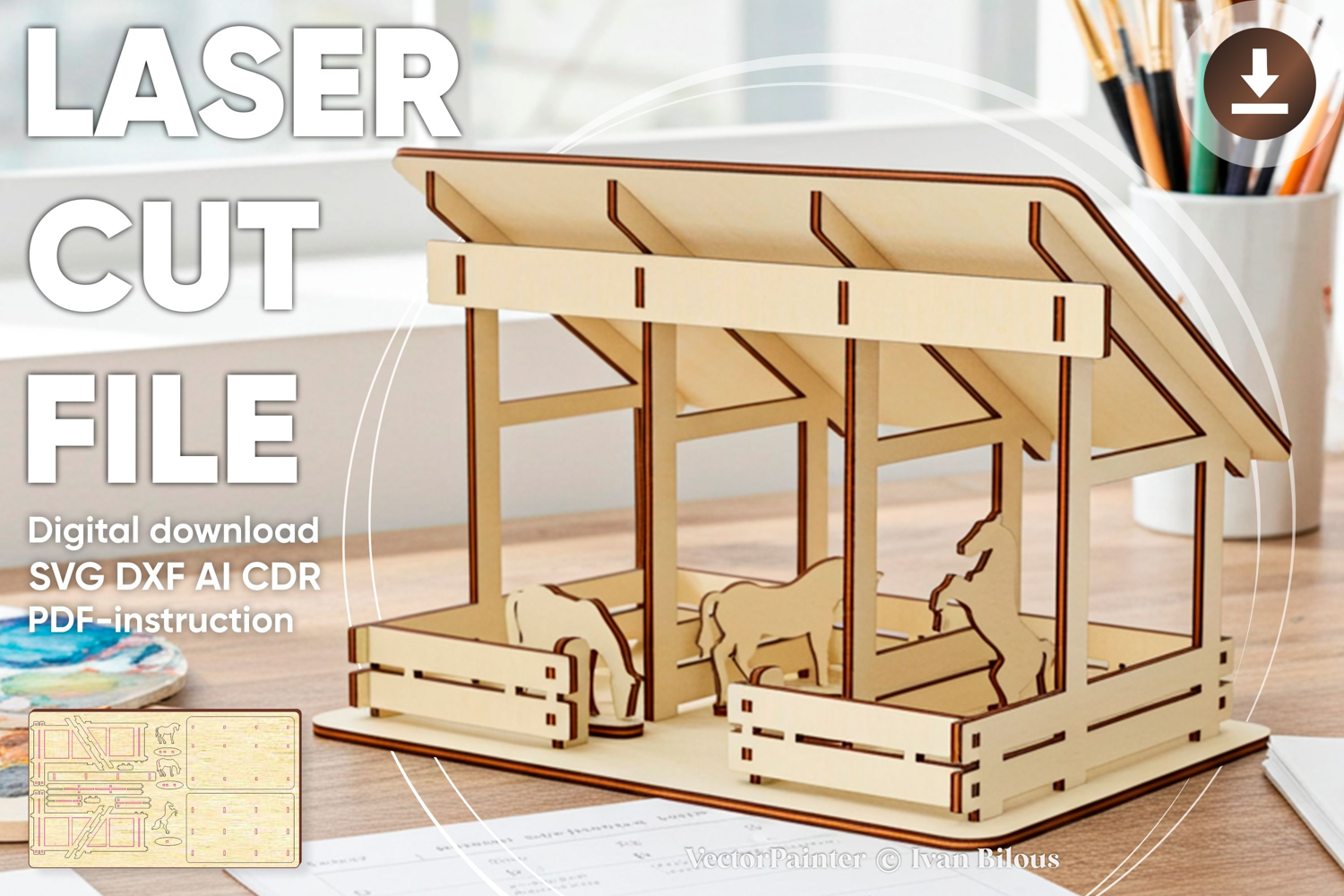

🎨 Laser cut design "Barn" 🎨

DIGITAL FILE for laser cutting machine with ASSEMBLY INSTRUCTION

🤏Material thickness (versions of the files):

3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📏 Finished SIZE of design

3 mm thickness: 135 x 200 x 143 mm (5.31 x 7.87 x 5.63'')

1/8''(3.175mm) thickness: 143 x 212 x 151 mm (5.63 x 8.33 x 5.96'')

4 mm thickness: 180 x 267 x 191 mm (7.09 x 10.50 x 7.51'')

6 mm thickness: 270 x 400 x 286 mm (10.63 x 15.75 x 11.26'')

1/4''(6.35mm) thickness: 286 x 423 x 303 mm (11.25 x 16.67 x 11.92'')

📐WORK AREA - total area of wood required for cutting

3 mm thickness: 490 x 272 mm (19.29 x 10.71'')

1/8''(3.175mm) thickness: 519 x 288 mm (20.42 x 11.33'')

4 mm thickness: 653 x 363 mm (25.72 x 14.28'')

6 mm thickness: 980 x 544 mm (38.58 x 21.42'')

1/4''(6.35mm) thickness: 1037 x 576 mm (40.83 x 22.67'')

🟧 LARGEST PART

3 mm thickness: 200 x 135 mm (7.87 x 5.31'')

1/8''(3.175mm) thickness: 212 x 143 mm (8.33 x 5.63'')

4 mm thickness: 267 x 180 mm (10.50 x 7.09'')

6 mm thickness: 400 x 270 mm (15.75 x 10.63'')

1/4''(6.35mm) thickness: 423 x 286 mm (16.67 x 11.25'')

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🔧SETTINGS and MODES

pink color - cut

black color - cut

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made laser cutting files for 3mm, 1/8''(3.175mm), 4mm, 6 mm, 1/4'' (6.35 mm) material thickness

🟢 each file is saved in SVG, DXF, CDR, AI formats

🟢 detailed PDF-instructions with 3D pictures

🟢 free support consultations and small adjustments

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📧Feel free to contact me if you have any questions

😊 I always happy to help you
