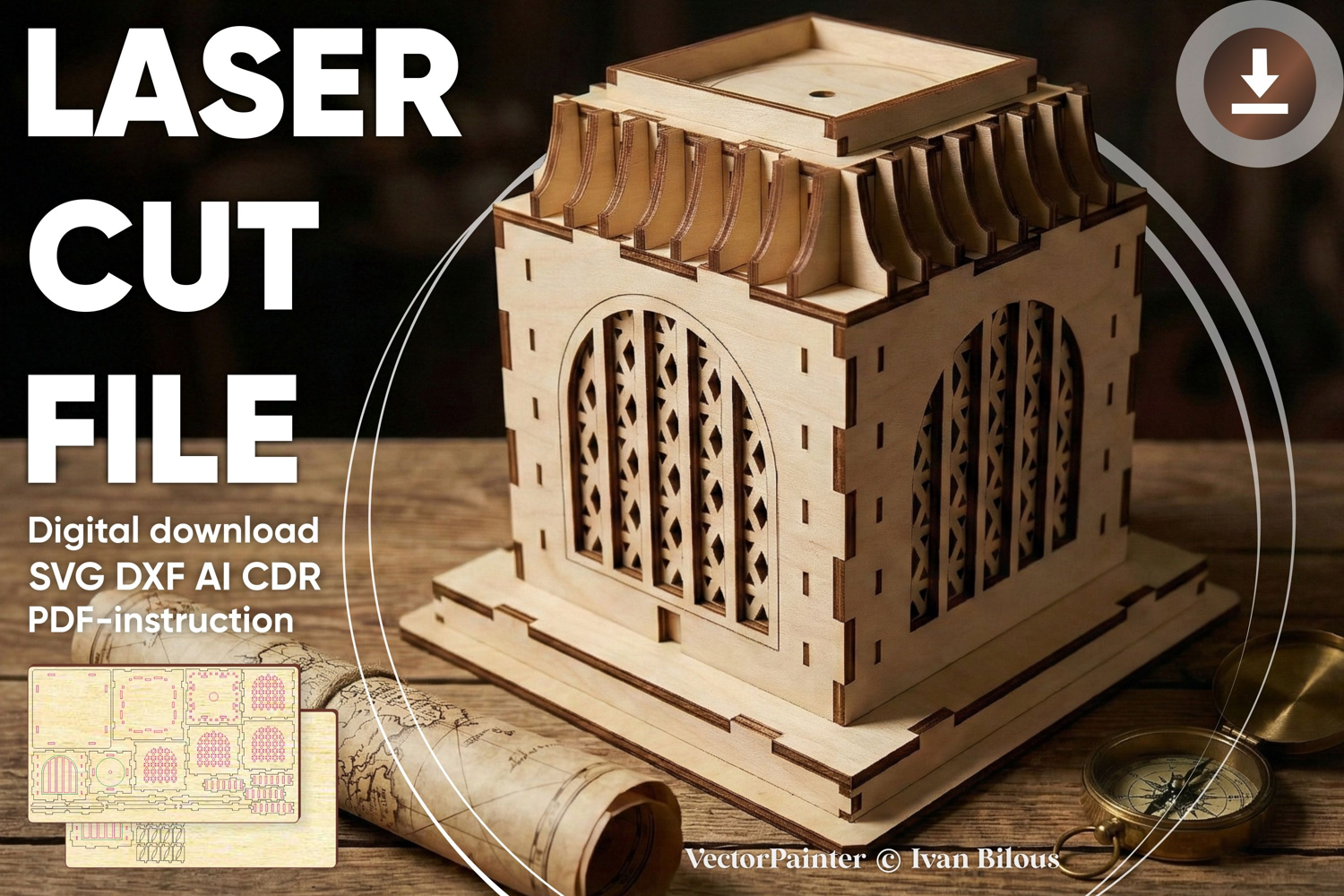

🎨 Laser cut design "Voortrekker Monument" 🎨
DIGITAL FILE for laser cutting machine with ASSEMBLY INSTRUCTION
🤏Material thickness (versions of the files):
2mm, 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
📏 Finished SIZE of design
3 mm thickness: 135 x 135 x 127 mm (5,31 x 5,31 x 5,00'')
1/8''(3.175mm) thickness: 143 x 143 x 134 mm (5,63 x 5,63 x 5,29'')
4 mm thickness: 180 x 180 x 169 mm (7,09 x 7,09 x 6,67'')
6 mm thickness: 270 x 270 x 254 mm (10,63 x 10,63 x 10,00'')
1/4''(6.35mm) thickness: 286 x 286 x 269 mm (11,25 x 11,25 x 10,58'')
📐WORK AREA - total area of wood required for cutting
3 mm thickness: 662 x 251 mm (26,06 x 9,88'')
1/8''(3.175mm) thickness: 701 x 266 mm (27,58 x 10,46'')
4 mm thickness: 883 x 335 mm (34,75 x 13,18'')
6 mm thickness: 1324 x 502 mm (52,13 x 19,76'')
1/4''(6.35mm) thickness: 1401 x 531 mm (55,17 x 20,92'')
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🔧SETTINGS and MODES
green color - score / draw
pink color - cut (inner cut lines)
black color - cut (outer cut lines)
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
🛒WHAT YOU RECEIVE
🟢 ready made laser cutting files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
material thickness
🟢 each file is saved in SVG, DXF, CDR, AI formats
🟢 detailed PDF-instructions with 3D pictures
🟢 free support consultations and small adjustments
▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪
📧Feel free to contact me if you have any questions
😊 I always happy to help you
