Christmas Star Box - laser cut file, SVG DXF plan for laser

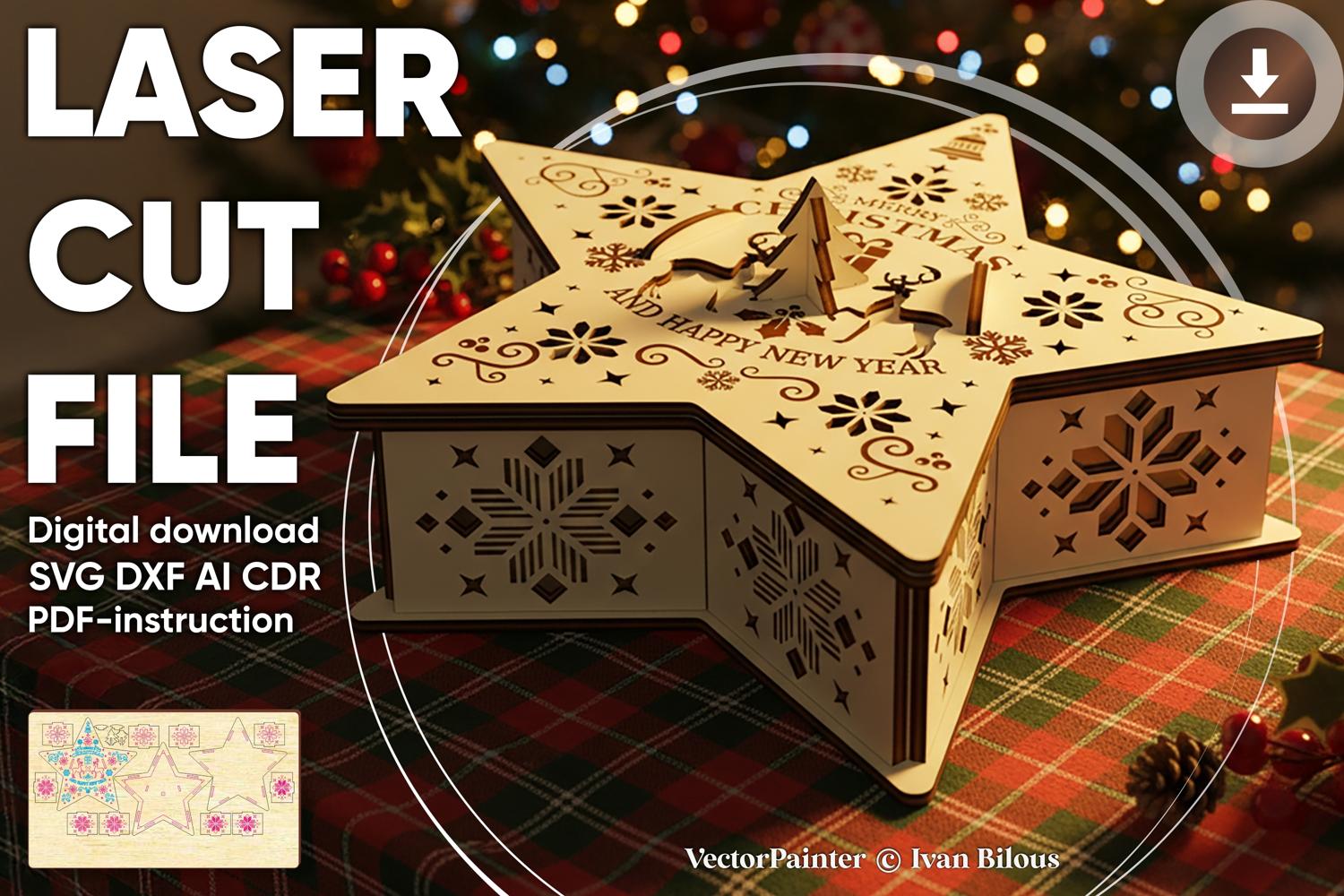

🎨 Laser cut design "Star Box" 🎨

DIGITAL FILE for laser cutting machine with ASSEMBLY INSTRUCTION

🤏Material thickness (versions of the files):

 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📏 Finished SIZE of design

3 mm thickness: 200 x 190 x 80 mm (7,87 x 7,48 x 3,15'')

1/8''(3.175mm) thickness: 212 x 201 x 85 mm (8,33 x 7,92 x 3,33'')

4 mm thickness: 267 x 253 x 107 mm (10,50 x 9,97 x 4,20'')

6 mm thickness: 400 x 380 x 160 mm (15,75 x 14,96 x 6,30'')

1/4''(6.35mm) thickness: 423 x 402 x 169 mm (16,67 x 15,83 x 6,67'')

📐WORK AREA - total area of wood required for cutting

3 mm thickness: 534 x 242 mm (21,02 x 9,53'')

1/8''(3.175mm) thickness: 565 x 256 mm (22,25 x 10,08'')

4 mm thickness: 712 x 323 mm (28,03 x 12,70'')

6 mm thickness: 1068 x 484 mm (42,05 x 19,06'')

1/4''(6.35mm) thickness: 1130 x 512 mm (44,50 x 20,17'')

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🔧SETTINGS and MODES

blue color - engrave

pink color - cut

black color - cut

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

🛒WHAT YOU RECEIVE

🟢 ready made laser cutting files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

 material thickness

🟢 each file is saved in SVG, DXF, CDR, AI formats

🟢 detailed PDF-instructions with 3D pictures

🟢 free support consultations and small adjustments

▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪▪

📧Feel free to contact me if you have any questions

😊 I always happy to help you
