How to fill a user designed image on Brother Scan n Cut.

Posted on 13th October 2017
* CM900 machine used.

If you would like to know how to fill a preset design check out the tutorial HERE

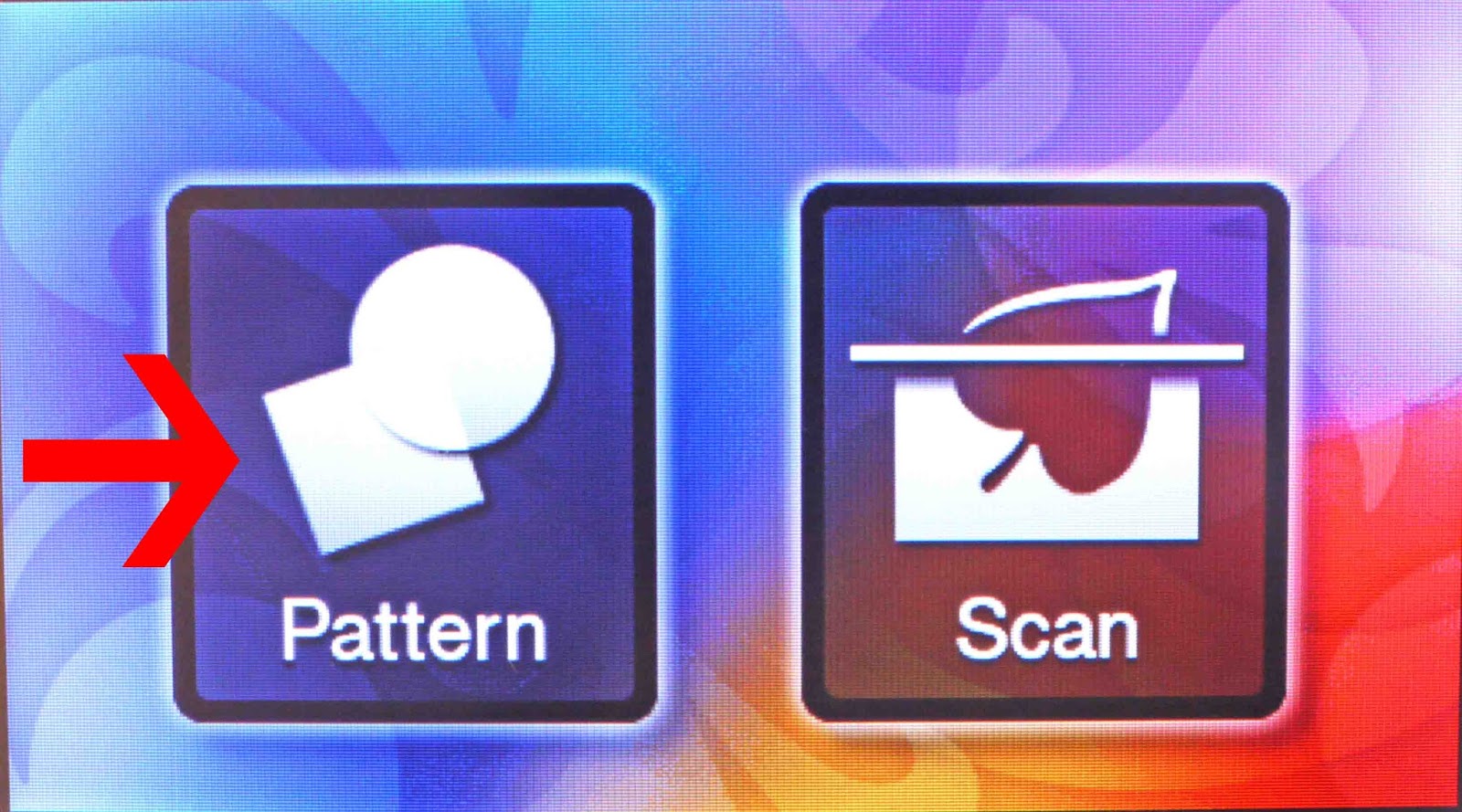

1- Turn on your Scan and cut machine and select pattern.

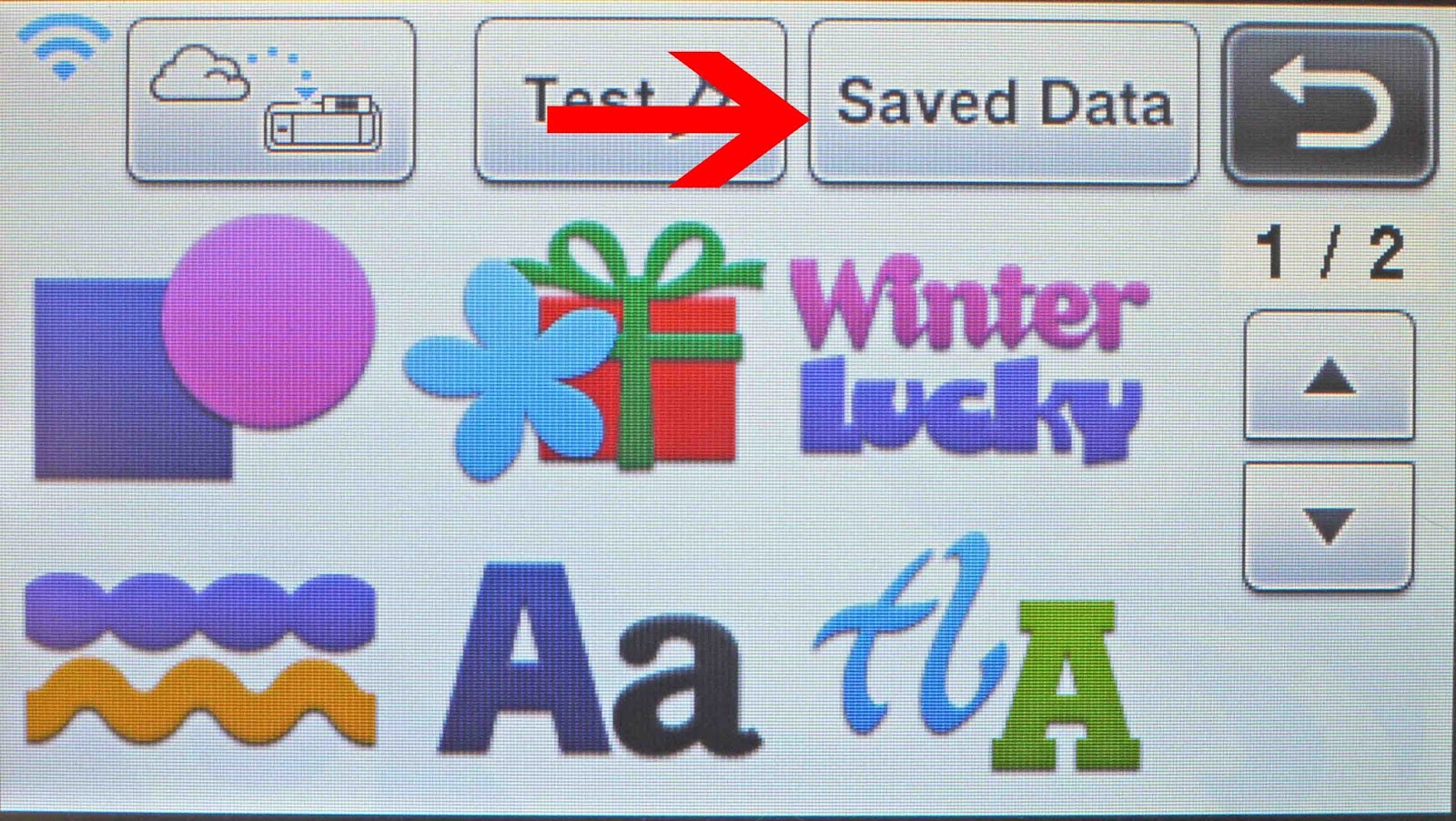

2- Click on the saved data icon.




3- At this point you can select one of the 3 options available saved to scan and cut, saved to USB or saved to PC. all 3 methods are the same. I am going to use a design I saved onto the scan and cut.

Click on the option you would like to use.

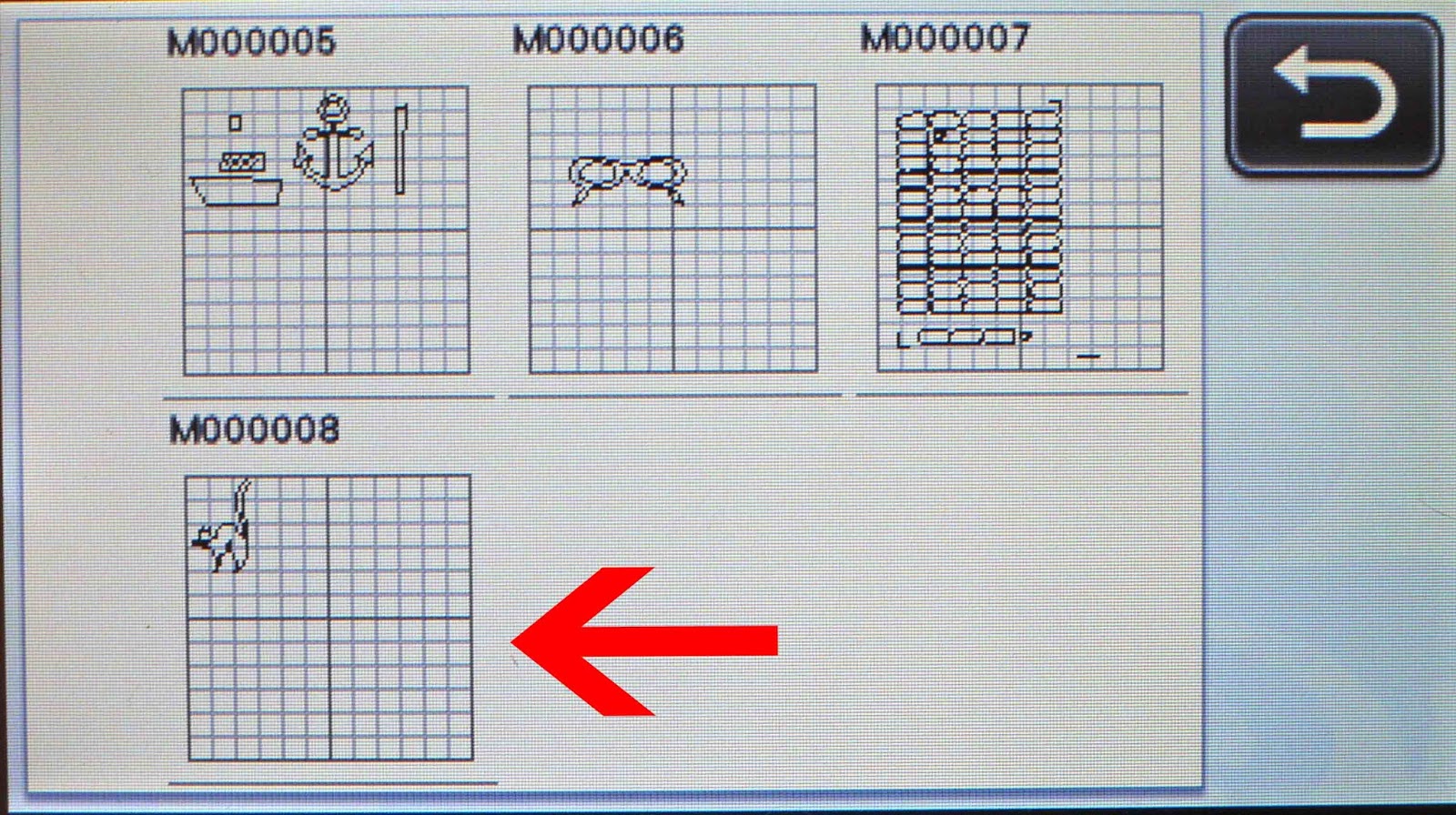

4- All your designs will upload. Select the design you need.

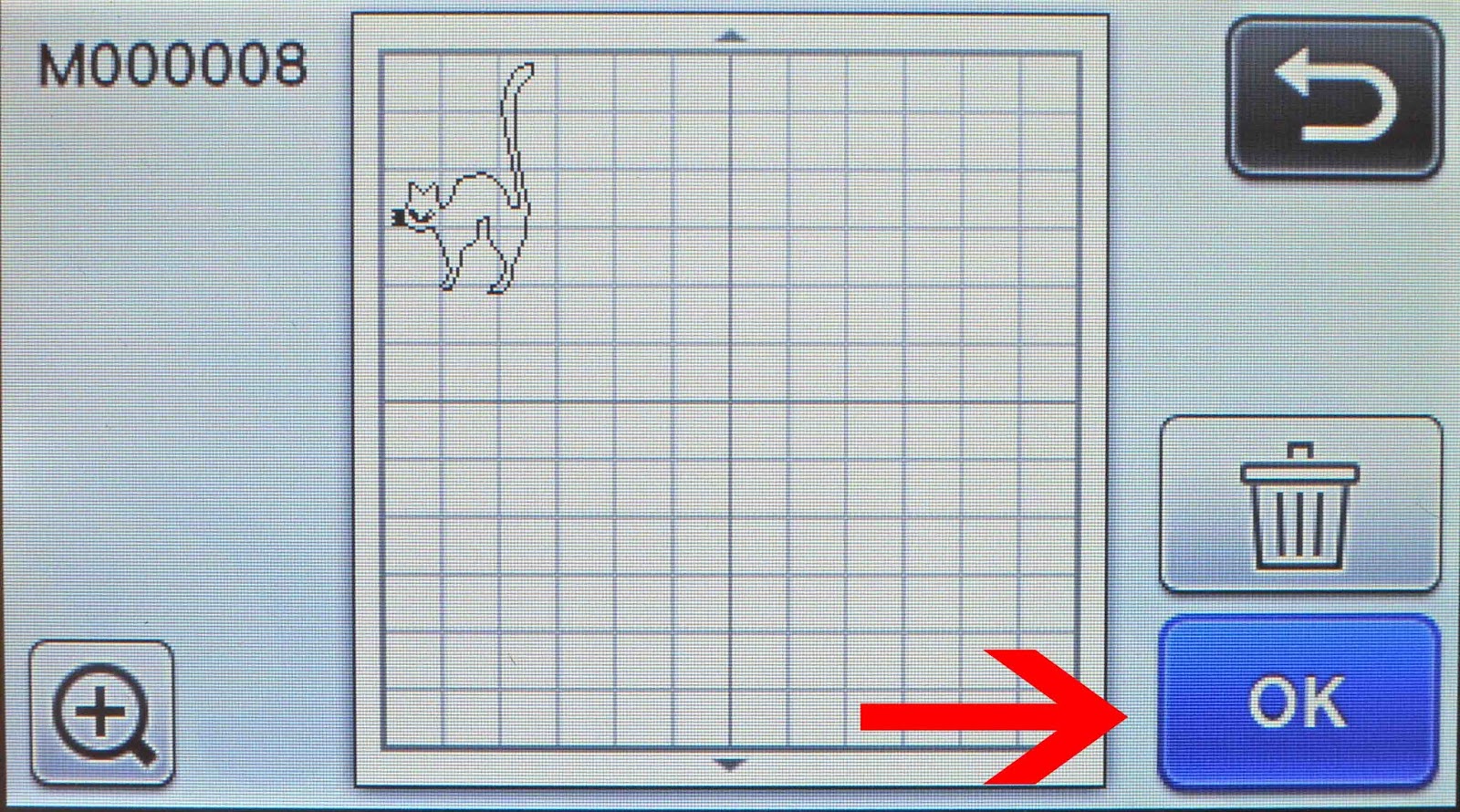

5- Your image will appear on the next screen. Click OK.

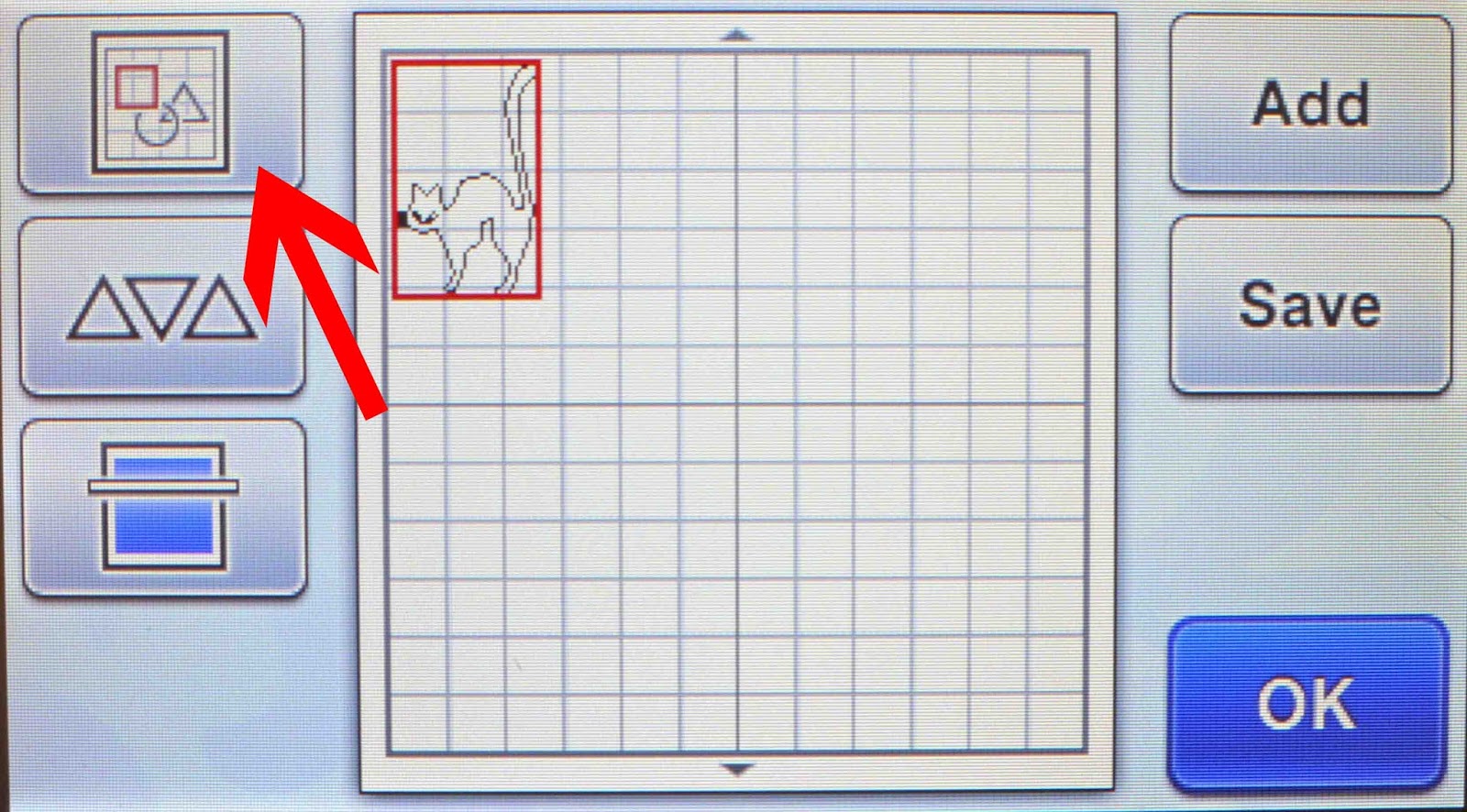

6- Select your image and go to the edit icon.

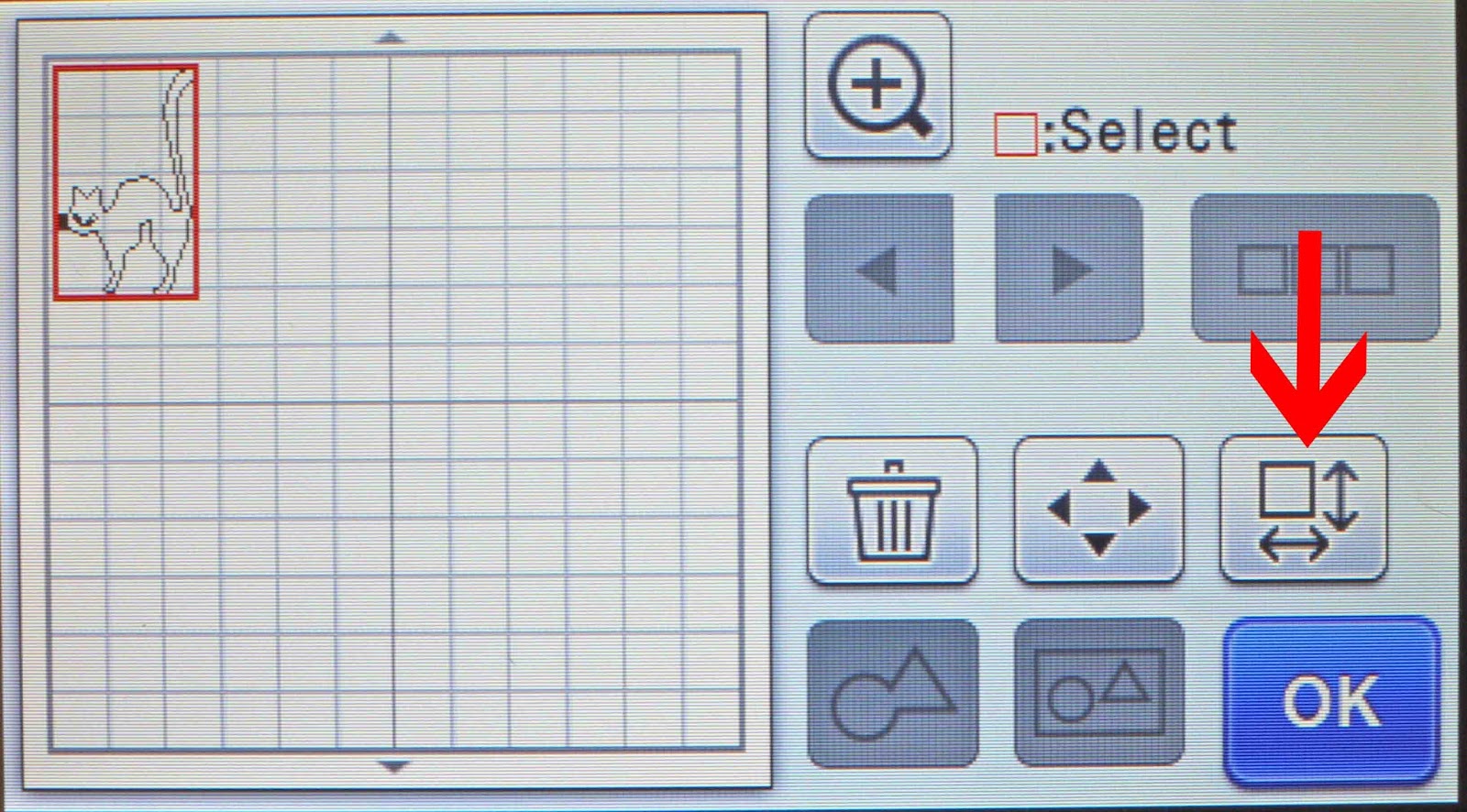

7- Next click on the adjust icon.




8- This is where you will find the fill option. click on it.




9- Your image will fill in. Click OK.




10- Click OK again.




11- At this point you can add any more images to your workspace. Once you are happy click OK once more.




12- Click on the toolbox icon.




13- Scroll through to find the fill pattern option. click on the toolbox icon.




14- You can now see the fill pattern options.




15- Select the pattern you owuld like (1) and then click OK(2).




16-Click OK.

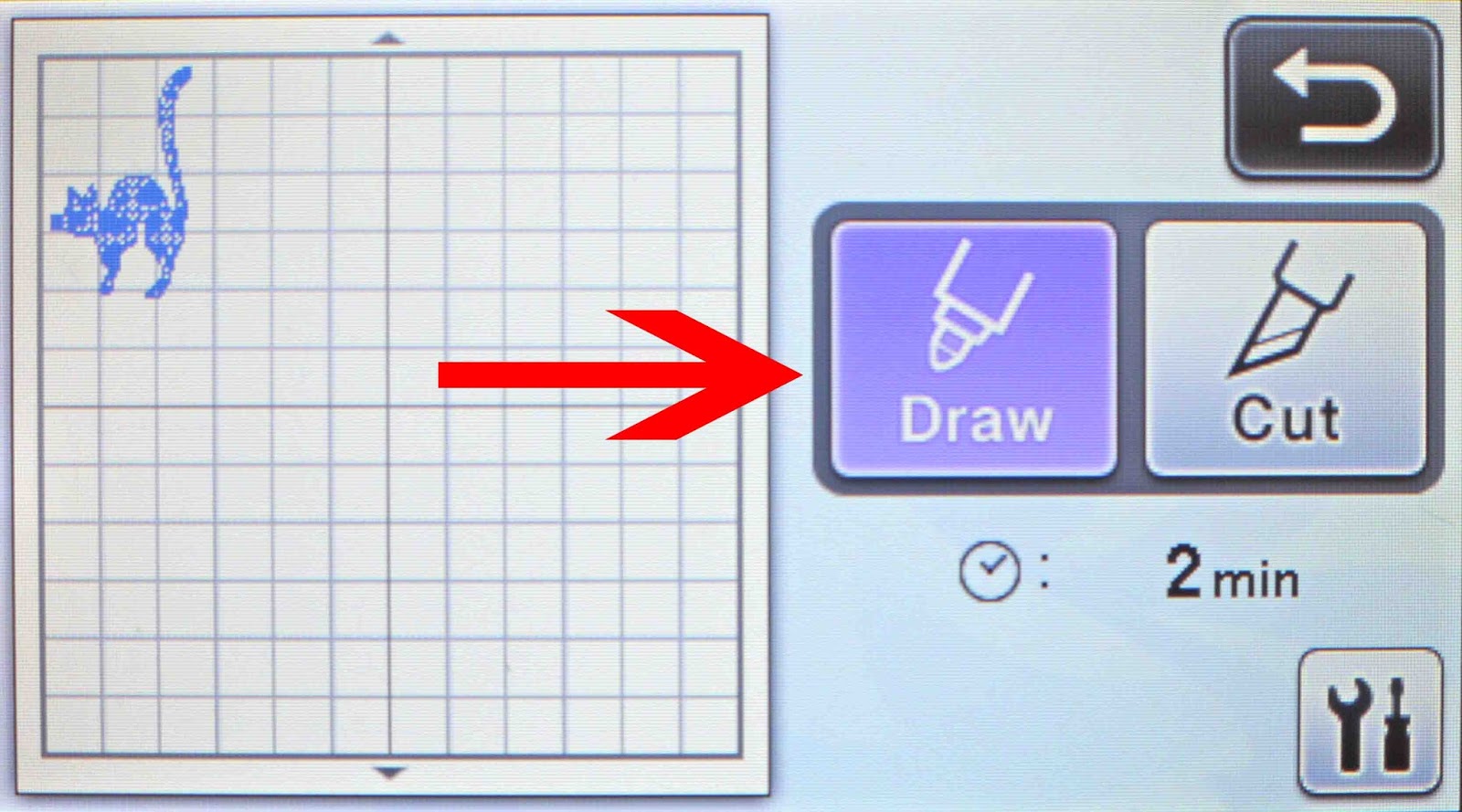

17- Your image will have the new fill pattern in it, and you can click draw.
