How to install the foil quill in the Cricut machine
  • By Design Bundles
  • 1 Min
  • Cricut Tutorials

How to install the foil quill in the Cricut machine

*Cricut expression air 2 machine used.
1- Open the lid of your machine. There are 2 holders A and B. Undo the clamp on side A.

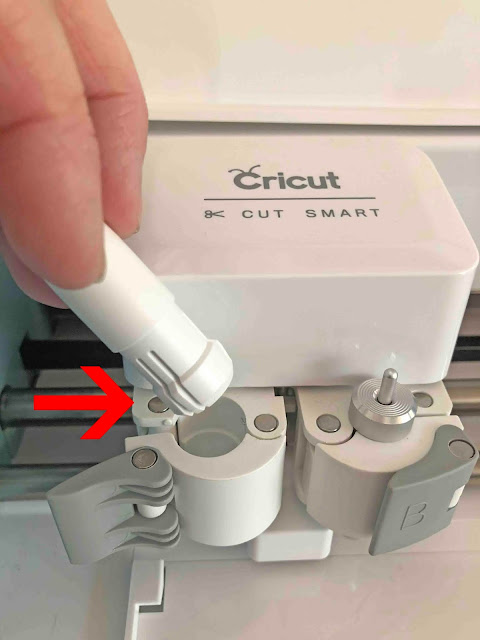

2- Using a little pressure from beneath and at the same time pulling from the top, remove the pen holder from the machine.

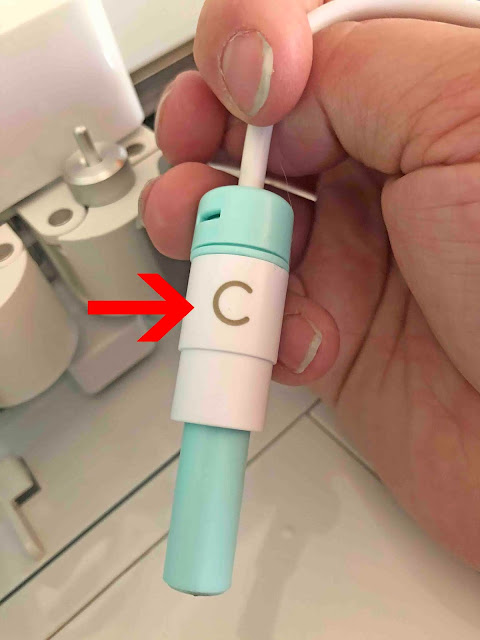

3- Screw in the C adapter onto the foil quill.

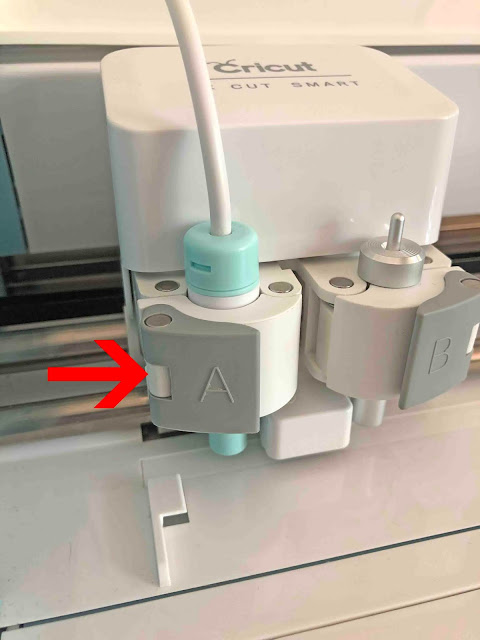

4- Place the foil quill into section A. Clamp the foil quill into it tight.

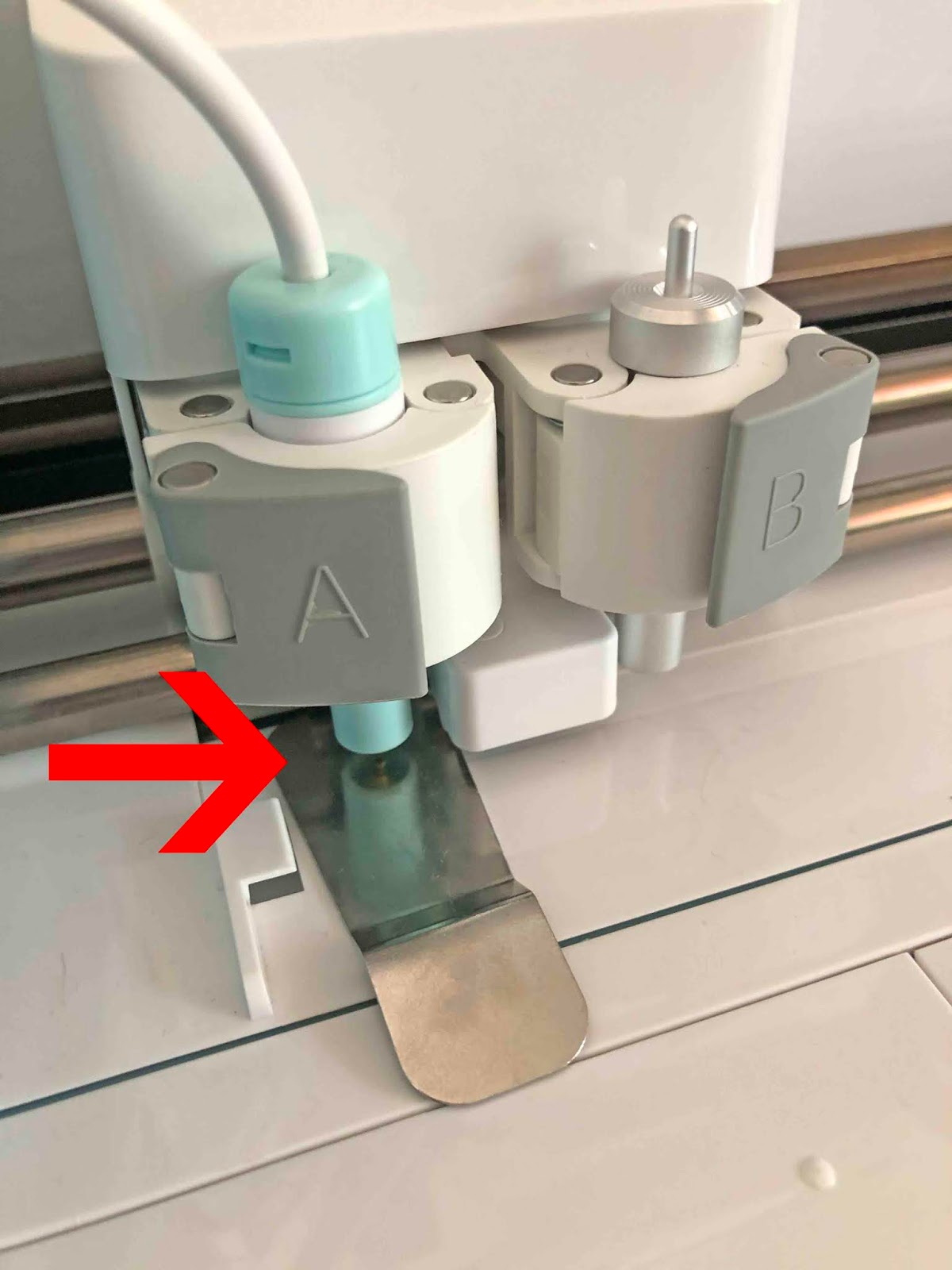

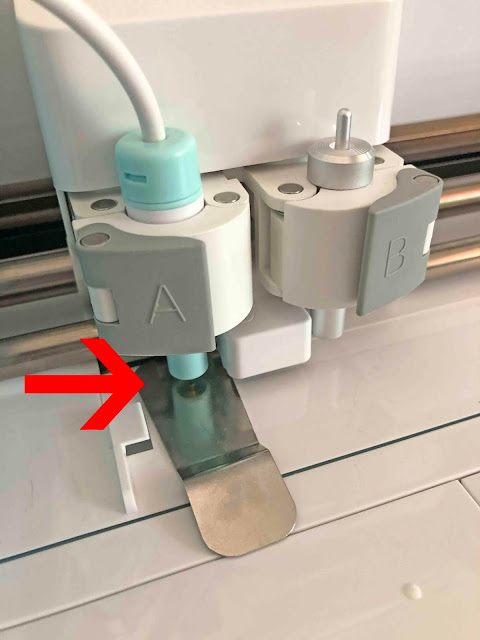

5- Place the metal protector under the quill tip. This is to protect your machine from the heat while the quill is heating up.

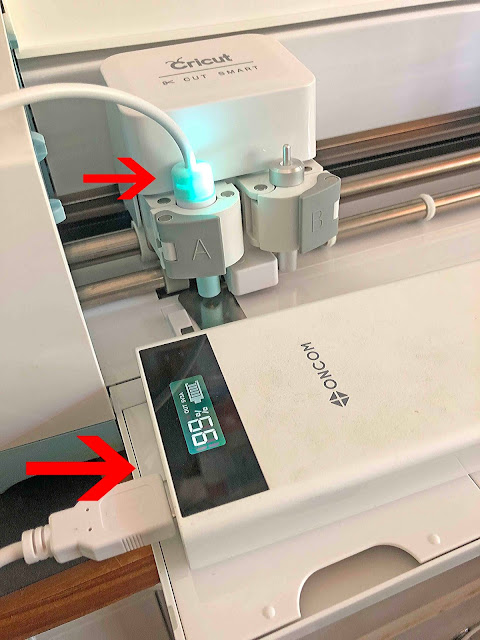

6- Plug your quill into a power source. You will see that the light will turn on once plugged into the power source. Leave to heat up for 5 minutes before you use the quill.
