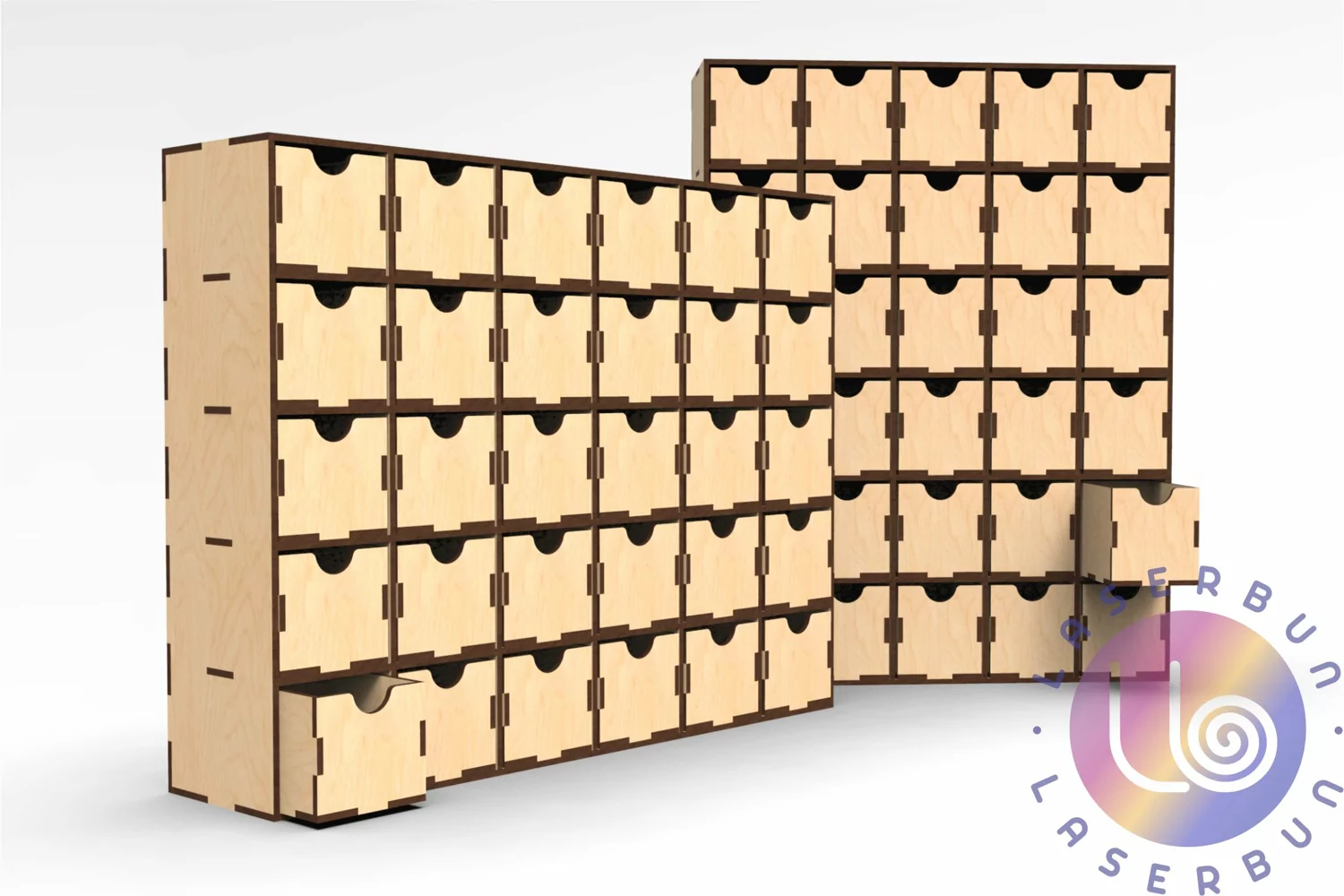

Organizer with 30 drawers. SVG Glowforge laser cutting patterns.
DXF CNC router plans.
Two versions - vertical and horizontal.
Special laser cutting plans for Glowforge.
A special nesting plan will allow you to use the material with maximum efficiency (view of the drawing in photo 10).
The design details are grouped for instant cutting with Glowforge type lasers: working area 50x30cm (20x12 inches).
Material consumption - 9 sheets.
Owners of other lasers can use the general drawing and plan the cutting on their own (view of the drawing in photo 9).
PLEASE NOTE - No physical item will be sent.
You can see the dimensions laser design in millimeters and inches in photos 2, 3, 4, 5.
Material thickness 3mm - .118".
PLEASE use an electronic vernier caliper to check the thickness of your material before purchasing.
If the parameters differ by 2-3 tenths of a millimeter or an inch, you will not be able to get a quality product.
But you can write to me and I will adjust the thickness of the material in this design for you.
The model is assembled with glue.
After payment you will receive an archive with vector files of DXF, AI, SVG, CDR, PDF formats.
Have questions about licensing or need help unzipping the product file?
Please read the instructions for these and many more by checking the help center, by following the link below:
https://designbundles.net/help-center
Take your time, be careful, if there are difficulties - write to me.
