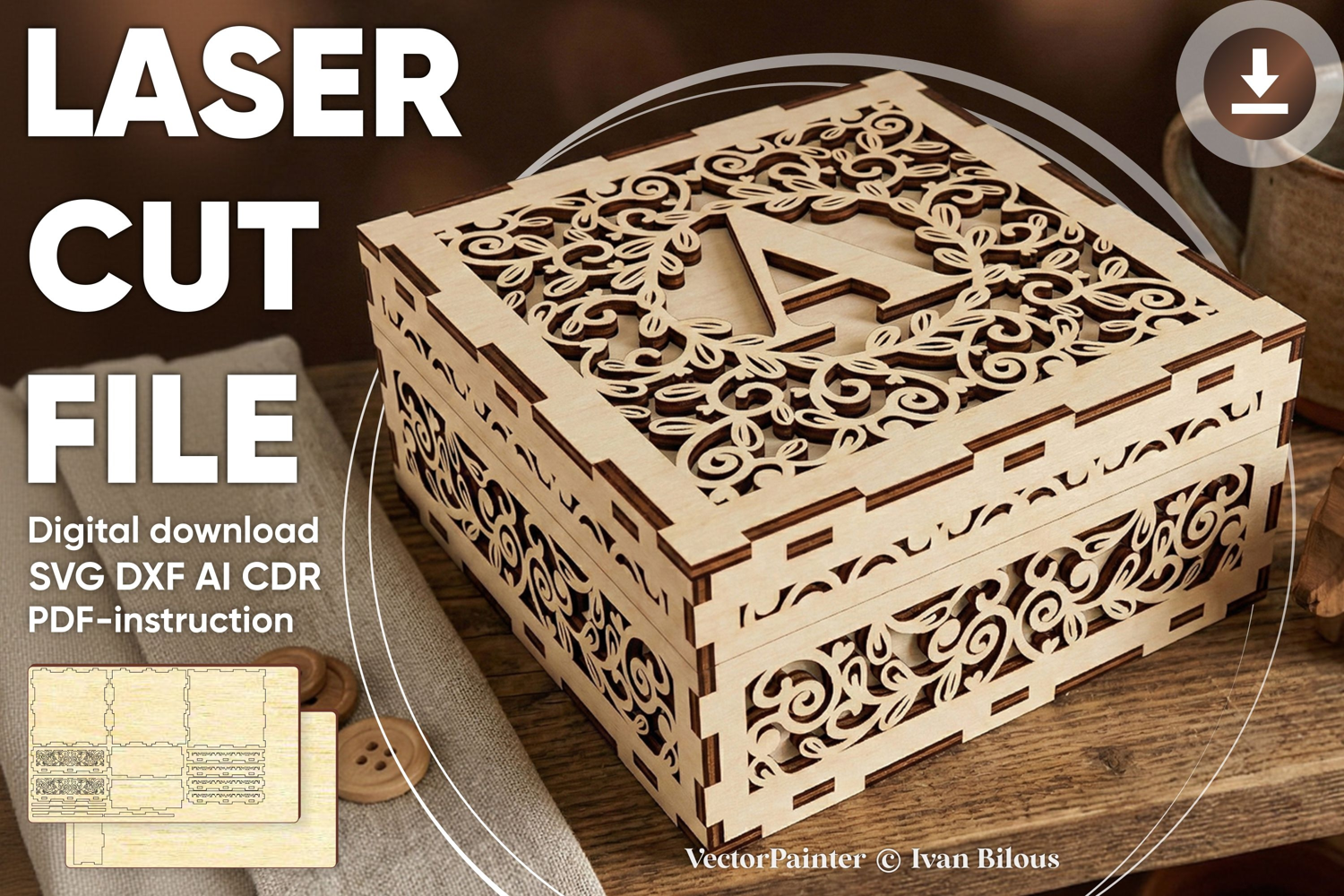

Laser cut design "Monogram Box". Vector plan for laser cutting machine
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 120 x 120 x 60 mm (4,72 x 4,72 x 2,36'')
1/8''(3.175mm) thickness: 127 x 127 x 64 mm (5,00 x 5,00 x 2,50'')
4 mm thickness: 160 x 160 x 80 mm (6,30 x 6,30 x 3,15'')
6 mm thickness: 240 x 240 x 120 mm (9,45 x 9,45 x 4,72'')
1/4''(6.35mm) thickness: 254 x 254 x 127 mm (10,00 x 10,00 x 5,00'')
Work area:
3 mm thickness: 536 x 242 mm (21,10 x 9,53'')
1/8''(3.175mm) thickness: 567 x 256 mm (22,33 x 10,08'')
4 mm thickness: 715 x 323 mm (28,14 x 12,70'')
6 mm thickness: 1072 x 484 mm (42,20 x 19,06'')
1/4''(6.35mm) thickness: 1135 x 512 mm (44,67 x 20,17'')
Biggest part:
3 mm thickness: 120 x 120 mm (4,72 x 4,72'')
1/8''(3.175mm) thickness: 127 x 127 mm (5,00 x 5,00'')
4 mm thickness: 160 x 160 mm (6,30 x 6,30'')
6 mm thickness: 240 x 240 mm (9,45 x 9,45'')
1/4''(6.35mm) thickness: 254 x 254 mm (10,00 x 10,00'')
In the file:
black color - cut
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
