Tray with pattern - laser cut files, Glowforge pattern

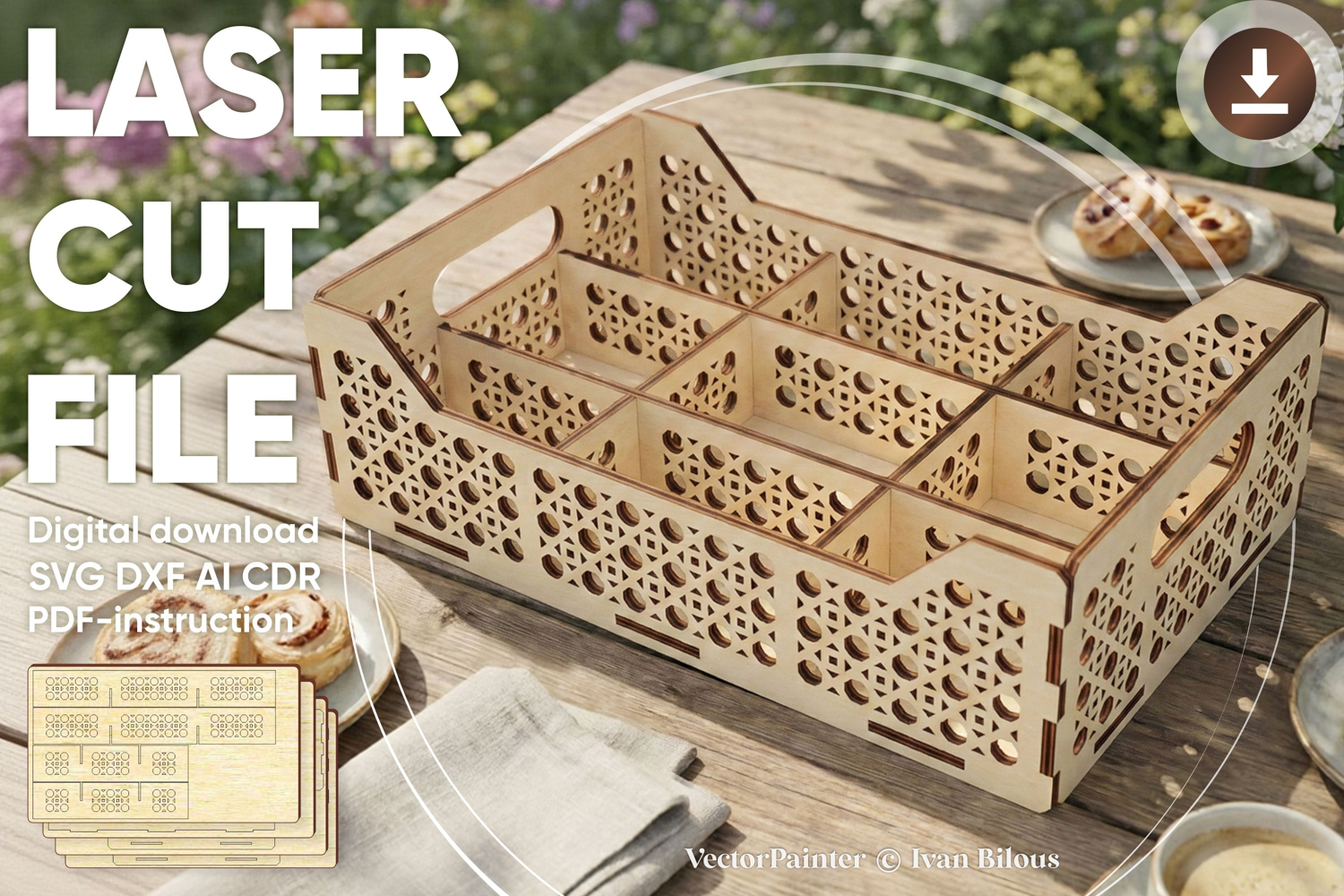

Laser cut design "Tray with pattern". Vector plan for laser cutting machine

Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)

Sizes:

3 mm thickness: 400 x 259 x 123 mm (15,75 x 10,20 x 4,84'')

1/8''(3.175mm) thickness: 423 x 274 x 130 mm (16,67 x 10,79 x 5,13'')

4 mm thickness: 400 x 259 x 123 mm (15,75 x 10,20 x 4,84'')

6 mm thickness:400 x 259 x 123 mm (15,75 x 10,20 x 4,84'')

1/4''(6.35mm) thickness: 423 x 274 x 130 mm (16,67 x 10,79 x 5,13'')

Work area:

3 mm thickness: 811 x 502 mm (31,93 x 19,76'')

1/8''(3.175mm) thickness: 858 x 531 mm (33,79 x 20,92'')

4 mm thickness: 811 x 502 mm (31,93 x 19,76'')

6 mm thickness: 811 x 502 mm (31,93 x 19,76'')

1/4''(6.35mm) thickness: 858 x 531 mm (33,79 x 20,92'')

Biggest part:

3 mm thickness: 400 x 259 mm (15,75 x 10,20'')

1/8''(3.175mm) thickness: 423 x 274 mm (16,67 x 10,79'')

4 mm thickness: 400 x 259 mm (15,75 x 10,20'')

6 mm thickness: 400 x 259 mm (15,75 x 10,20'')

1/4''(6.35mm) thickness: 423 x 274 mm (16,67 x 10,79'')

What you receive:

You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting

If you have any questions feel free to contact me:)
