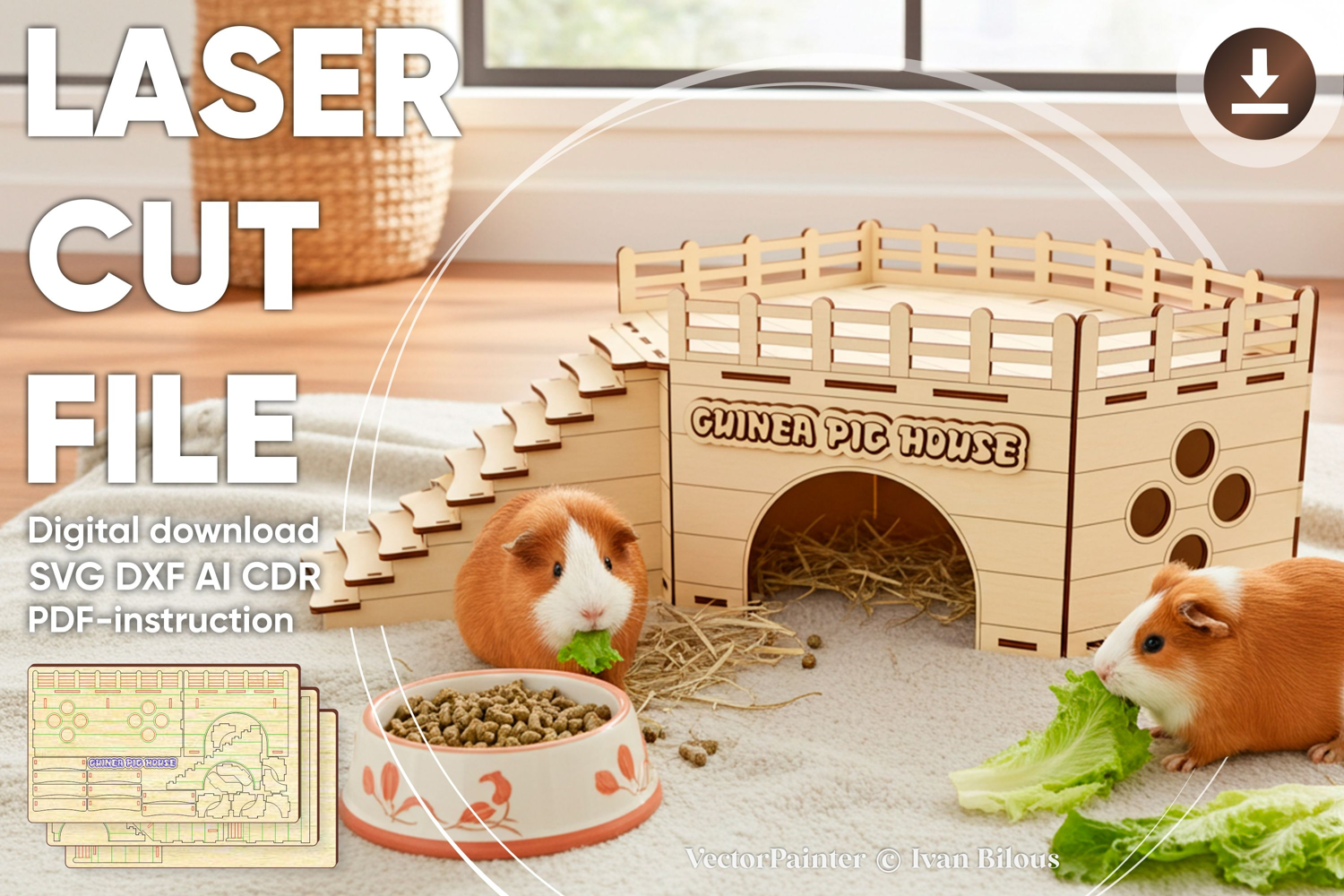

Laser cut design "Guinea Pig House". Vector plan for laser cutting machine
Material thickness (versions of the files): 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm)
Sizes:
3 mm thickness: 395 x 240 x 138 mm (15,55 x 9,45 x 5,43'')
1/8''(3.175mm) thickness: 418 x 254 x 146 mm (16,46 x 10,00 x 5,75'')
4 mm thickness: 527 x 320 x 184 mm (20,73 x 12,60 x 7,24'')
6 mm thickness: 395 x 240 x 138 mm (15,55 x 9,45 x 5,43'')
1/4''(6.35mm) thickness: 418 x 254 x 146 mm (16,46 x 10,00 x 5,75'')
Work area:
3 mm thickness: 980 x 241 mm (38,58 x 9,49'')
1/8''(3.175mm) thickness: 1037 x 255 mm (40,83 x 10,04'')
4 mm thickness: 1307 x 321 mm (51,44 x 12,65'')
6 mm thickness: 980 x 241 mm (38,58 x 9,49'')
1/4''(6.35mm) thickness: 1037 x 255 mm (40,83 x 10,04'')
Biggest part:
3 mm thickness: 234 x 241 mm (9,21 x 9,49'')
1/8''(3.175mm) thickness: 248 x 255 mm (9,75 x 10,04'')
4 mm thickness: 312 x 321 mm (12,28 x 12,65'')
6 mm thickness: 234 x 241 mm (9,21 x 9,49'')
1/4''(6.35mm) thickness: 248 x 255 mm (9,75 x 10,04'')
In the file:
green color - score / draw (cut with low power and high speed)
blue color - engrave
pink color - cut (inner cut lines)
black color - cut (outer cut lines)
What you receive:
You will download 1 ZIP files for 3mm, 1/8''(3.175mm), 4mm, 6mm, 1/4''(6.35mm) containing the following:
the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction
If you have any questions feel free to contact me:)
