Brother Scan N Cut Direct Cut Tutorial

*note CM900 used.

1- Turn on your machine.

2- Select the scan icon.

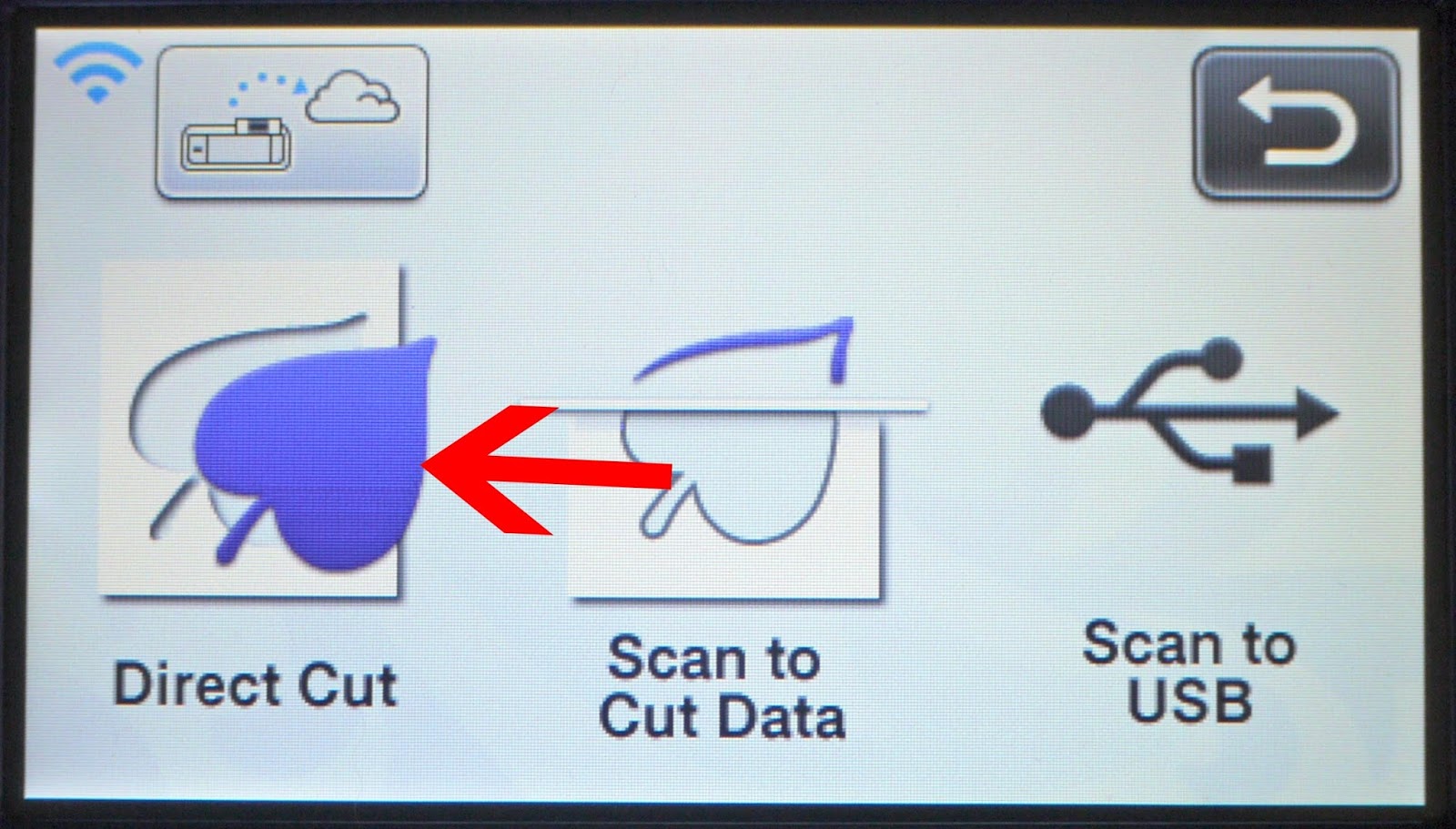

2- Click on direct cut.

3-Select the scan and cut machine icon.

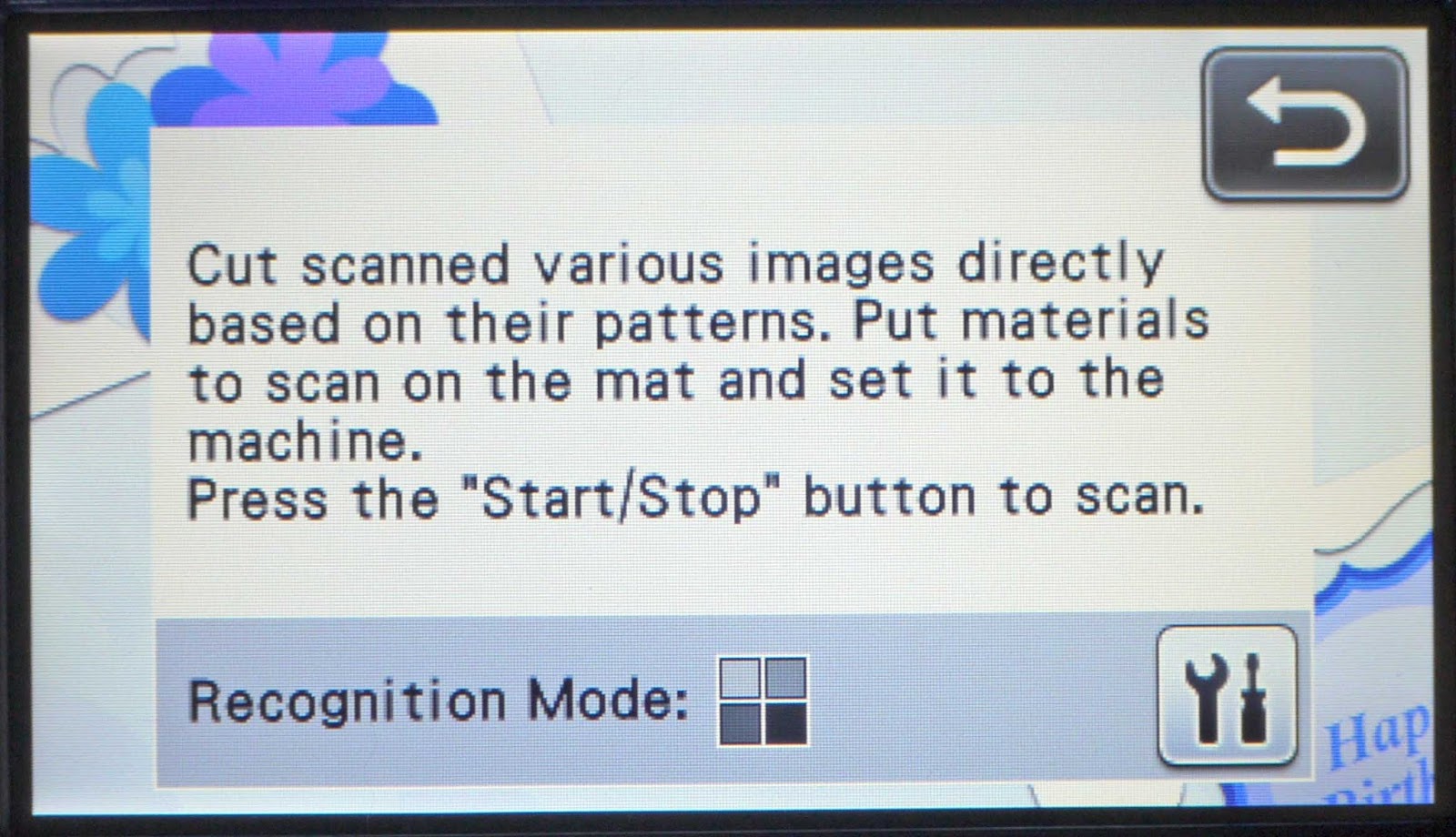

4-When this screen appears you can load your mat with the image you would like cut on it. Once loaded click on the start/stop button on your machine.

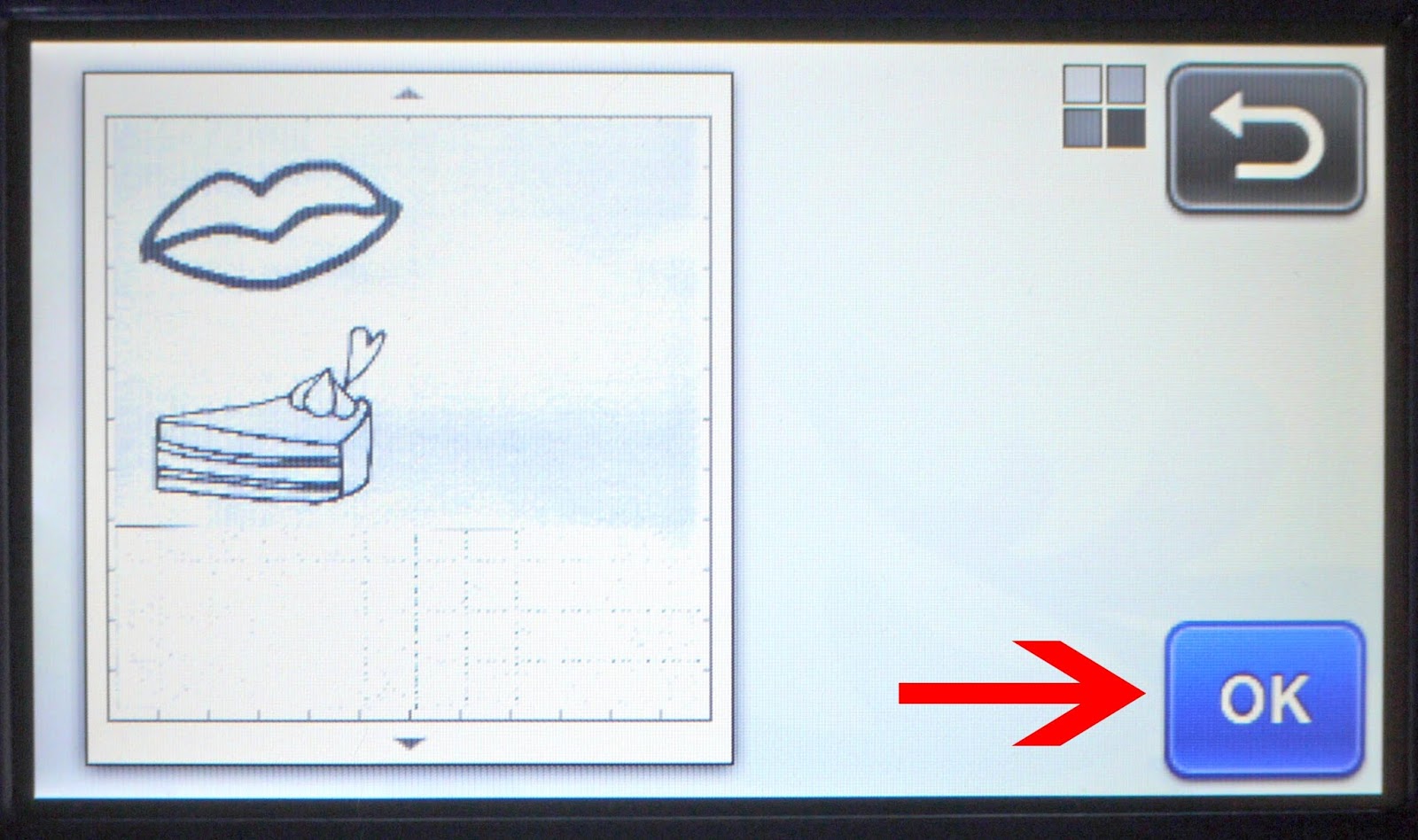

5- Then machine will scan the mat and images. They will appear on your screen. Click OK.

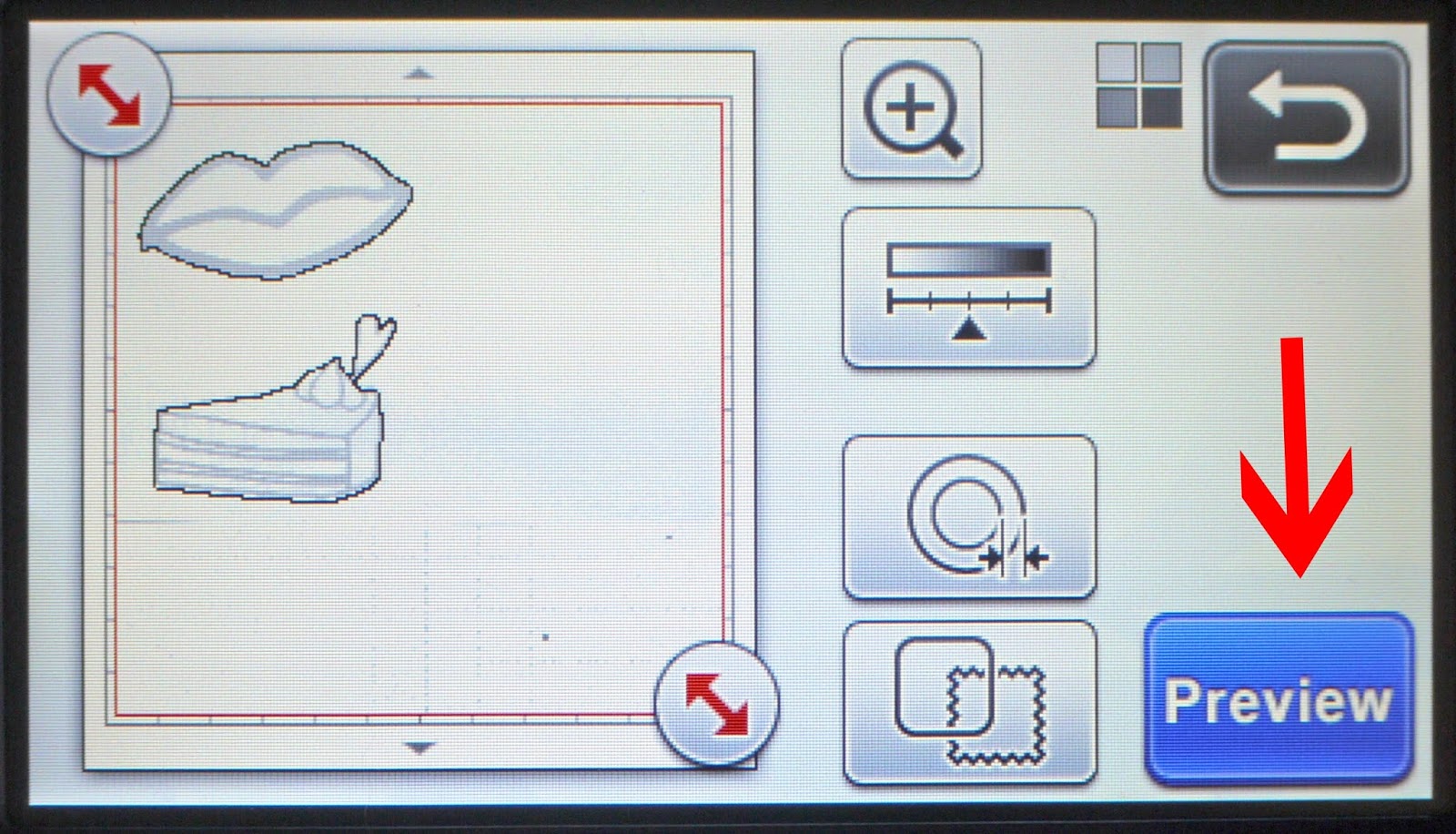

6- The cut lines will appear around your images on the screen. Select preview.

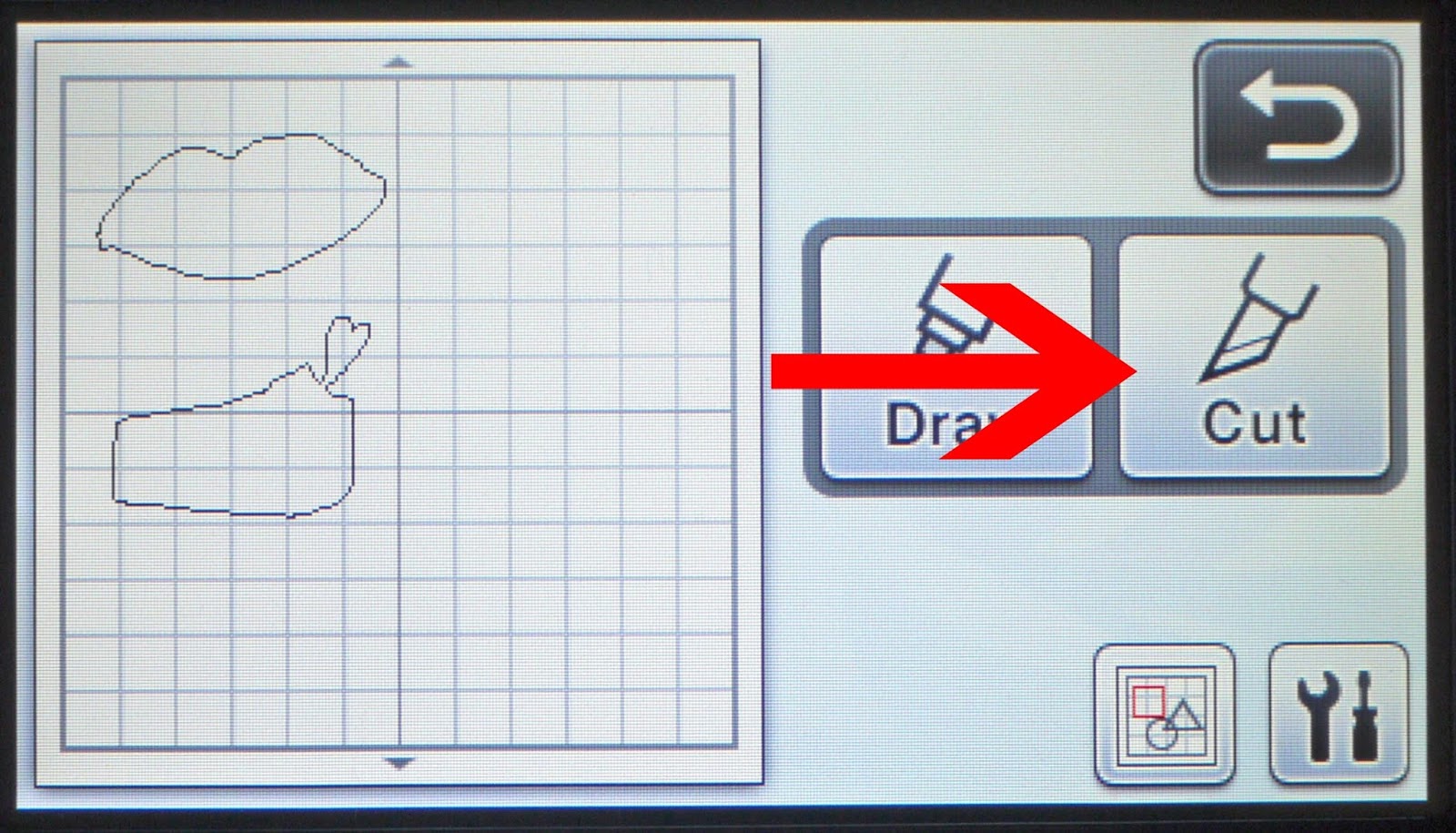

7- The scanned images will be removed only leaving the cut lines. If you are happy click on cut icon and then the start/stop button on your machine. The machine will cut out the images directly.
