Create a decorative border using the foil quill in Brother scan and cut canvas workspace

Posted on 25th October 2019
*CM900 model used.


1- Open scan and cut canvas workspace.

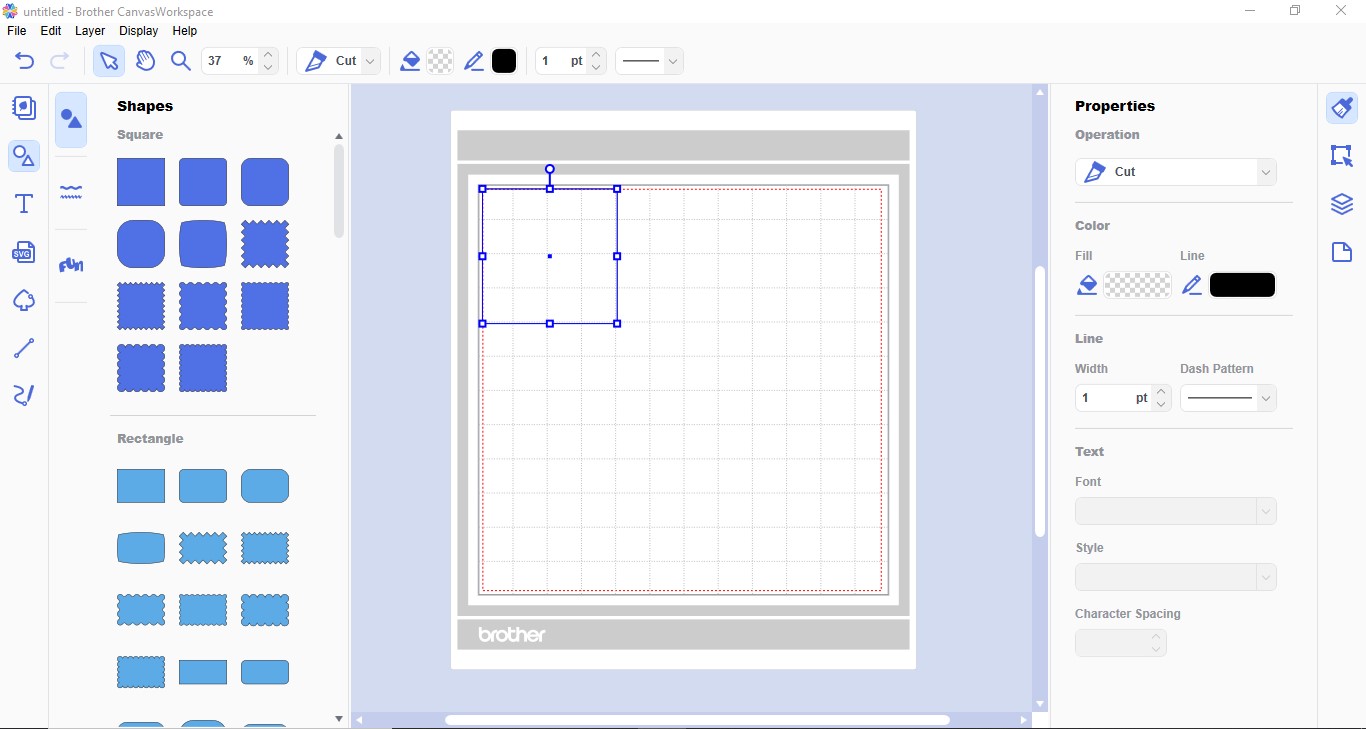

2- Click on the shapes icon and select a square.

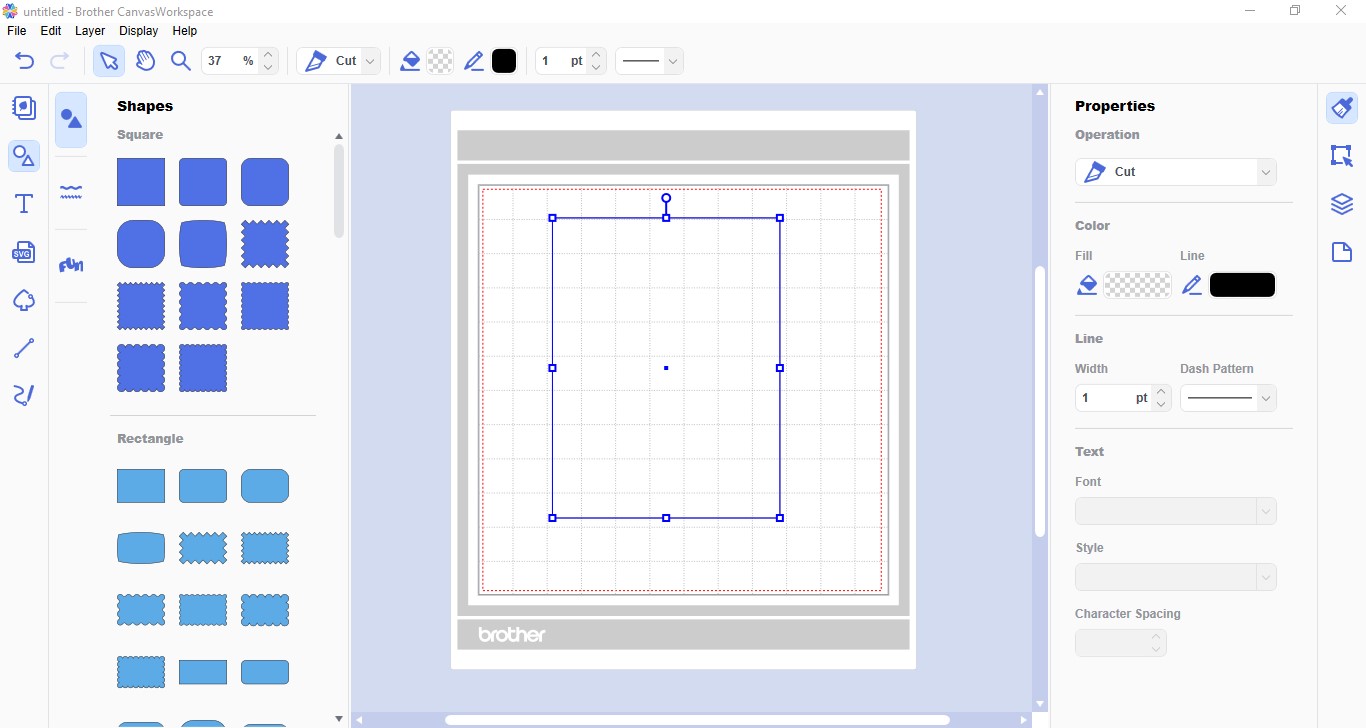

3- Resize to make a rectangle.

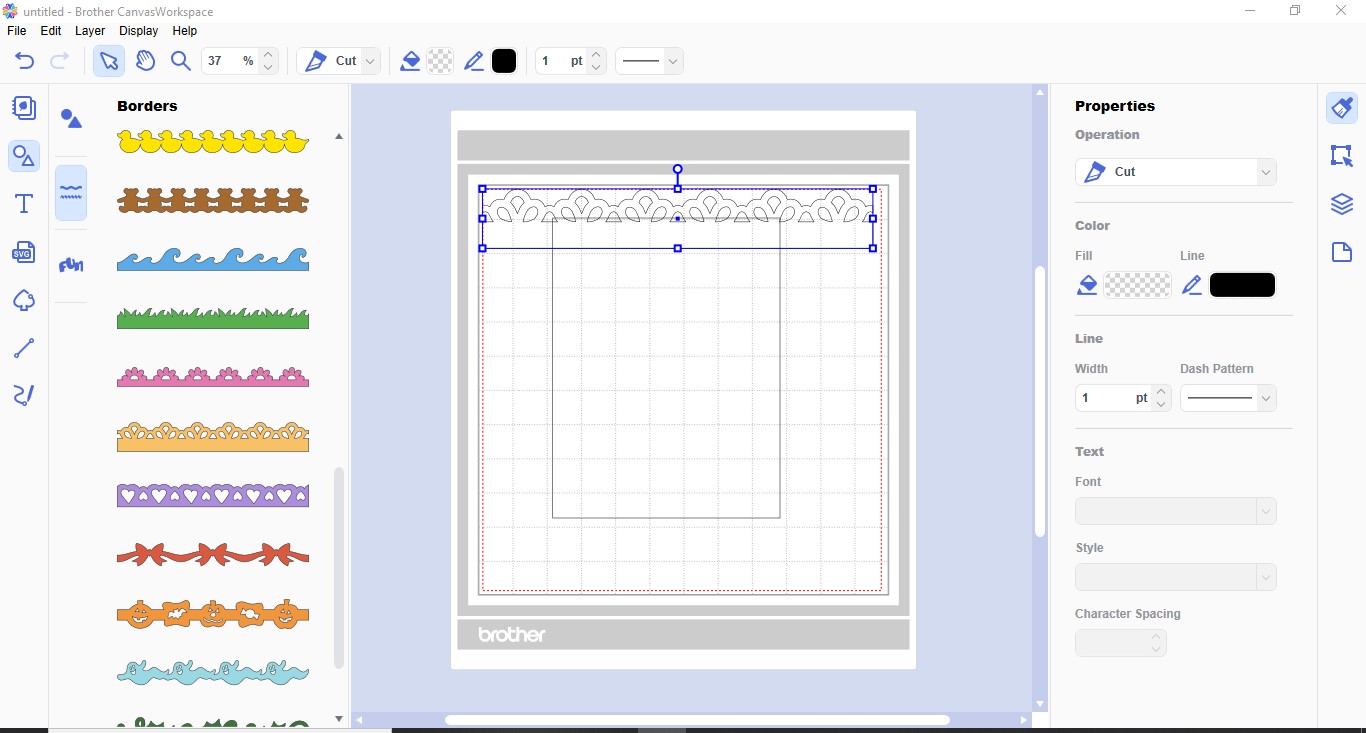

4- Select a border. You can also import a SVG to use as a border.

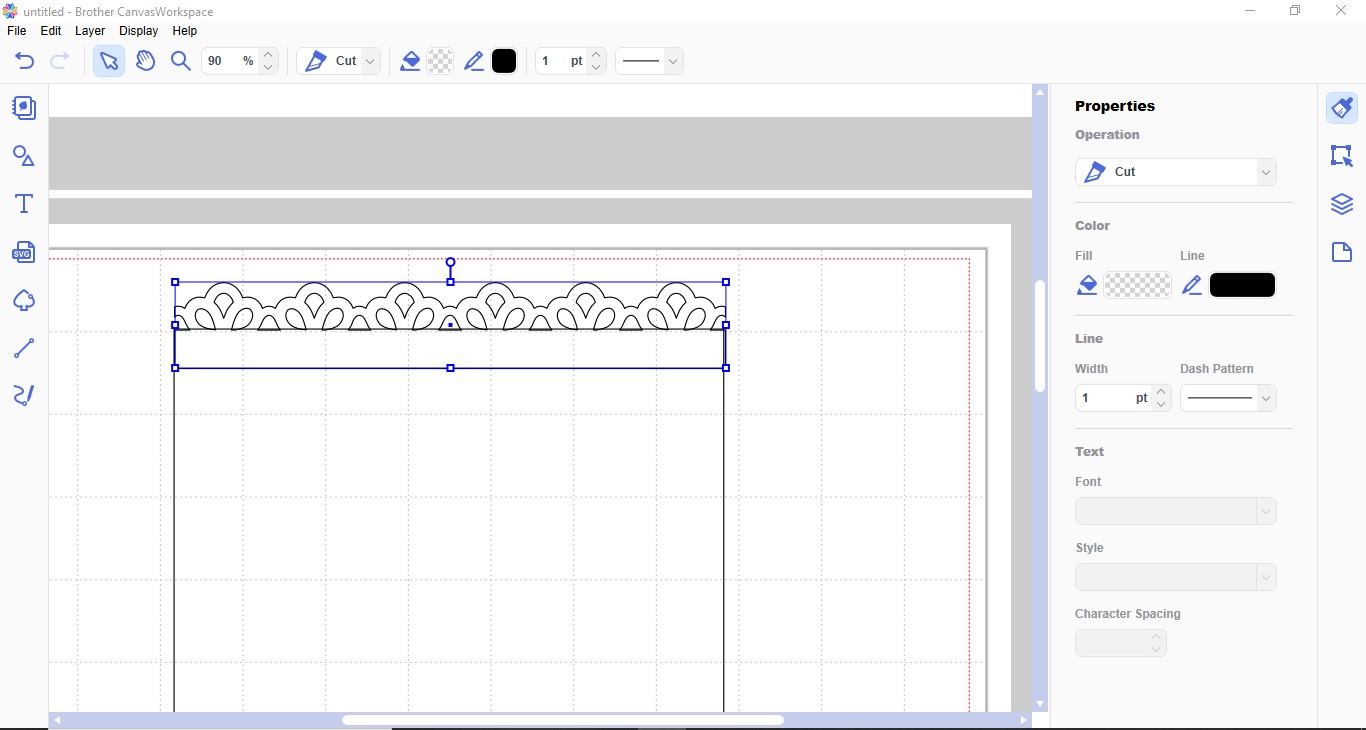

5- Resize the border and place over the rectangle.




6- With both the border and the rectangle selected, click weld.

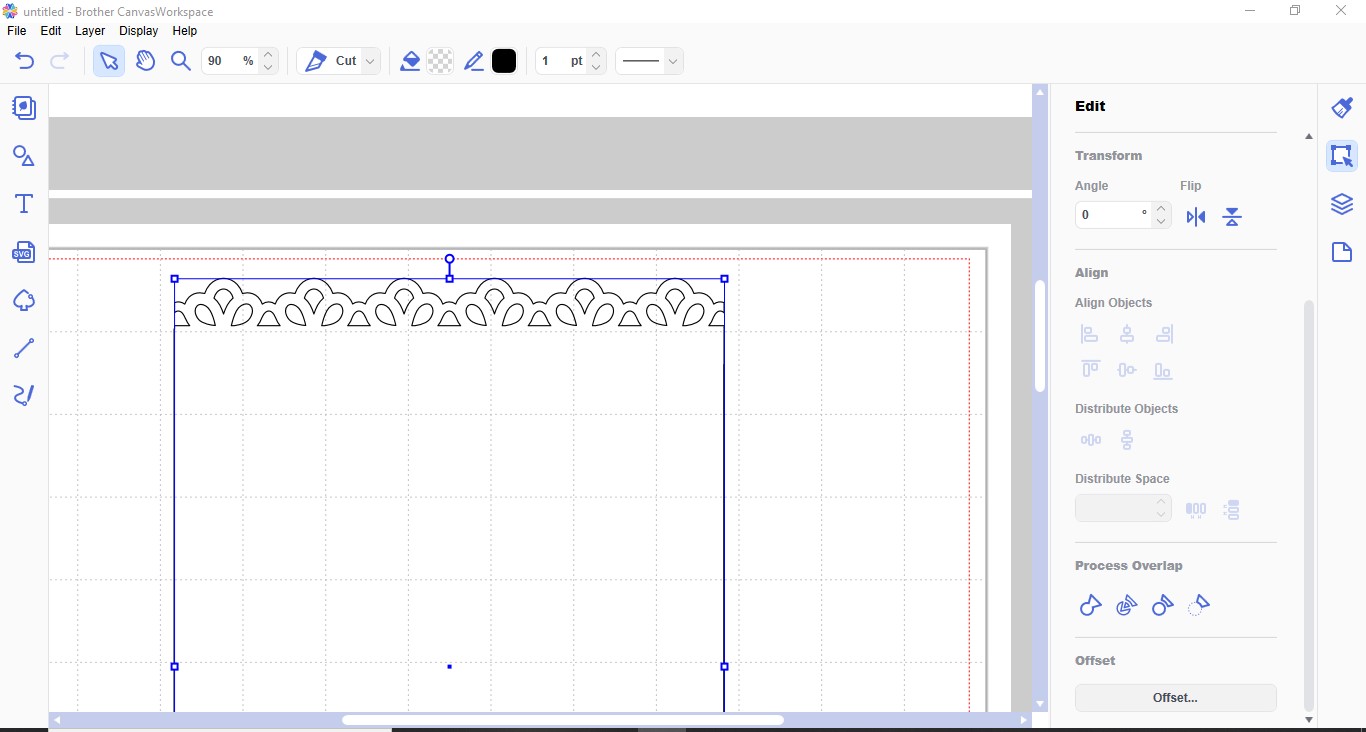

7- The border will be welded to the top of the rectangle.




8- Insert the same border and flip it. Place at the bottom of the rectangle. Slightly overlapping . Click on weld.




9- Once you have your border complete, click on file, transfer FCM file via the internet. If you do not have a wireless model machine, you can transfer to a USB to place in your machine.

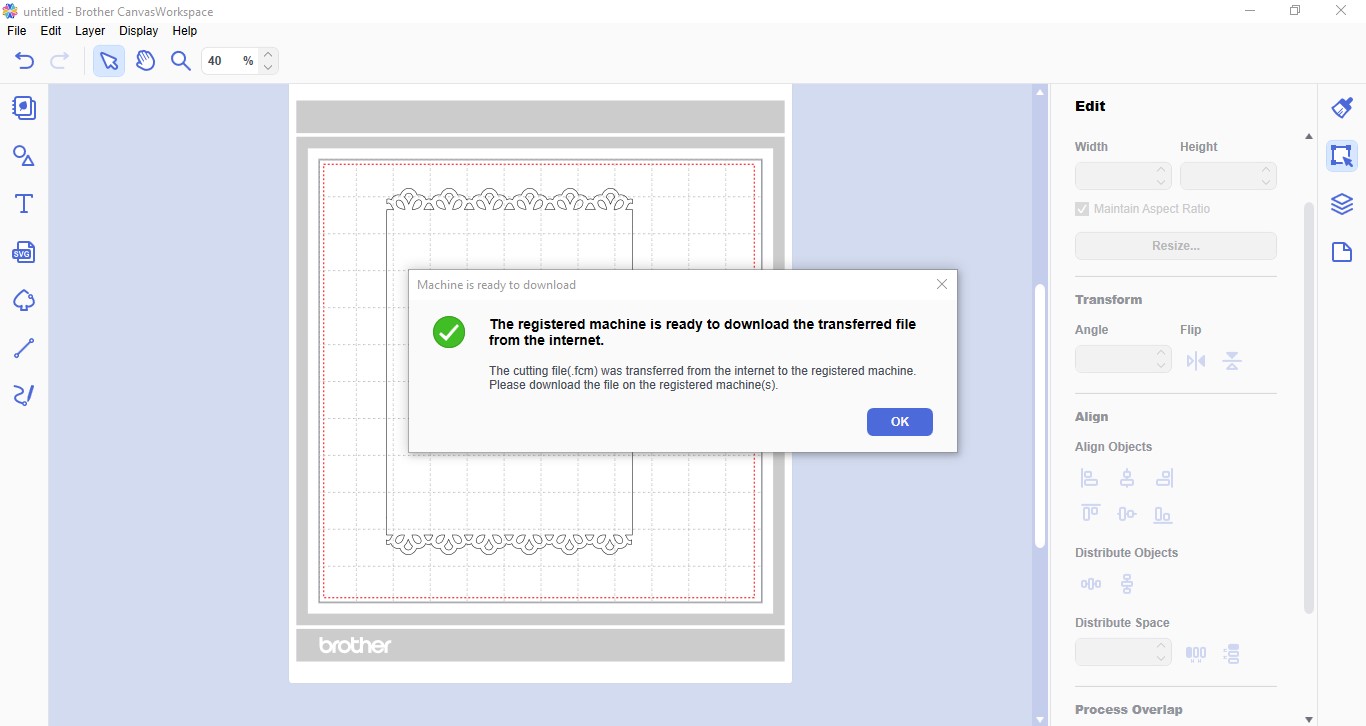

10- A pop up box will  appear letting you know the file has transferred to your scan and cut machine.

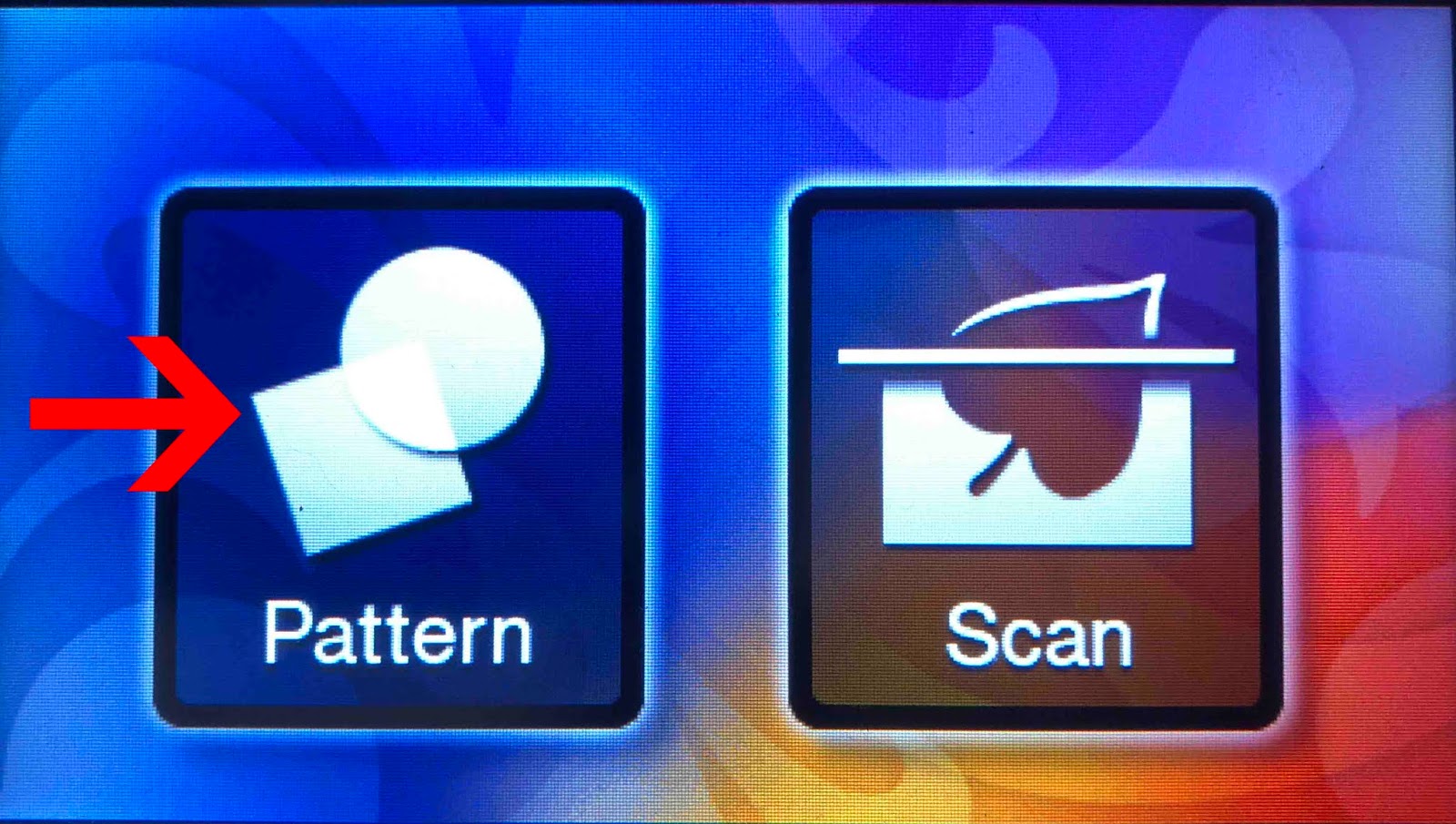

11- Turn on your scan and cut machine. Preheat your foil quill. Click on the pattern icon.

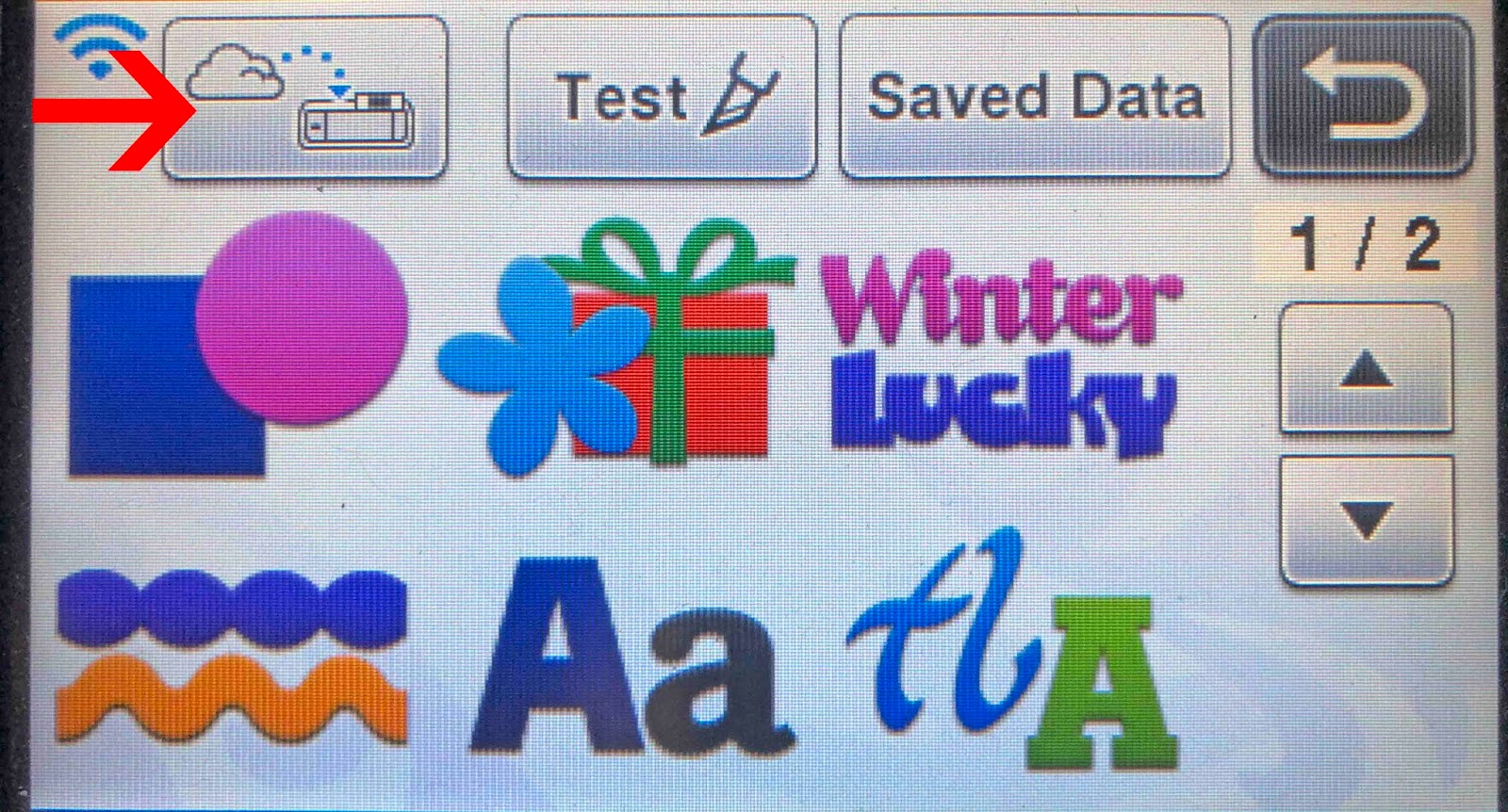

12- Click on the transfer icon.




13- Click on the scan icon to scan your mat and material.




14- your design will now appear over your media on your mat. Click OK

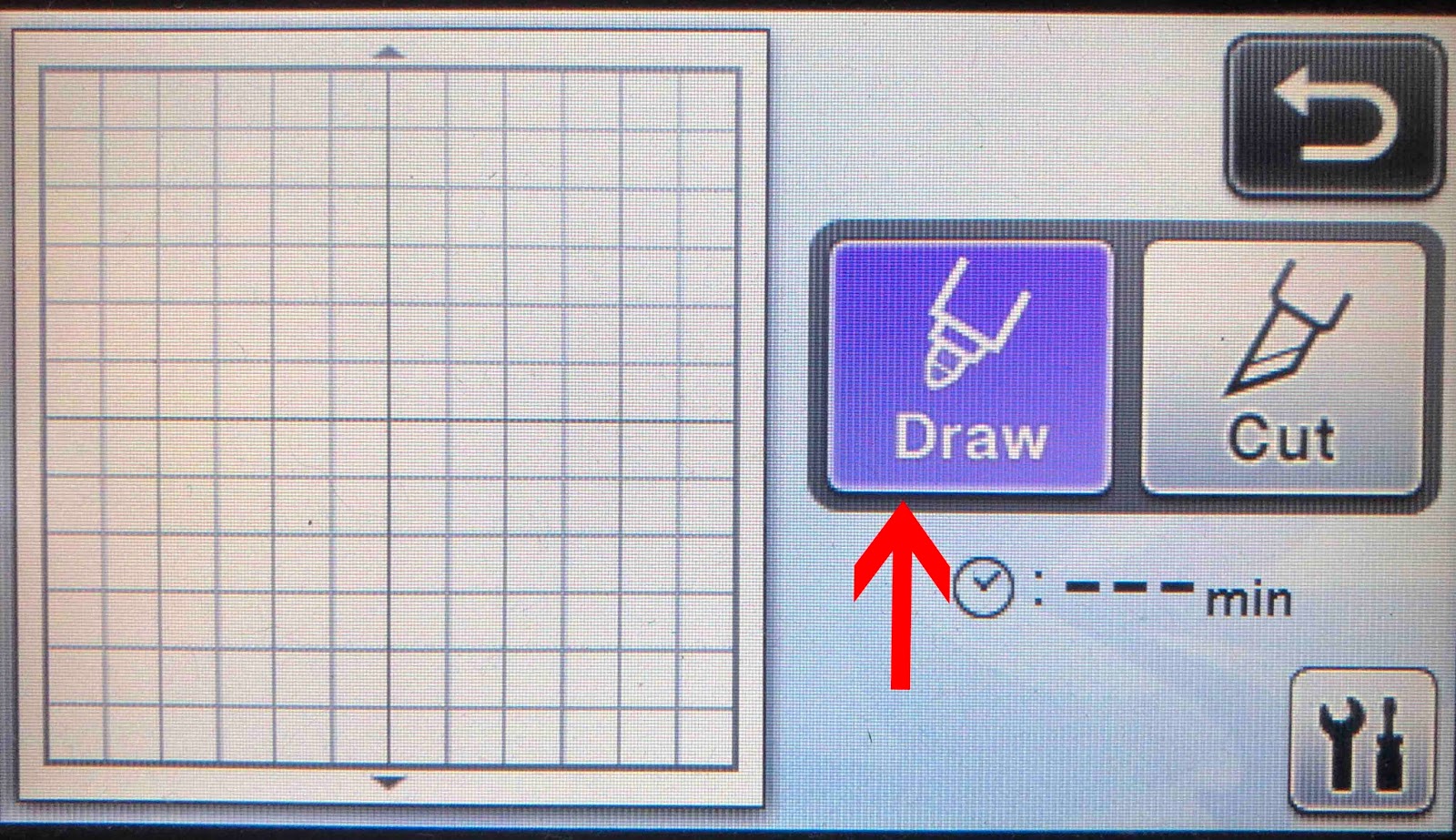

15- Click on the draw icon.




16- Click on the draw icon again.

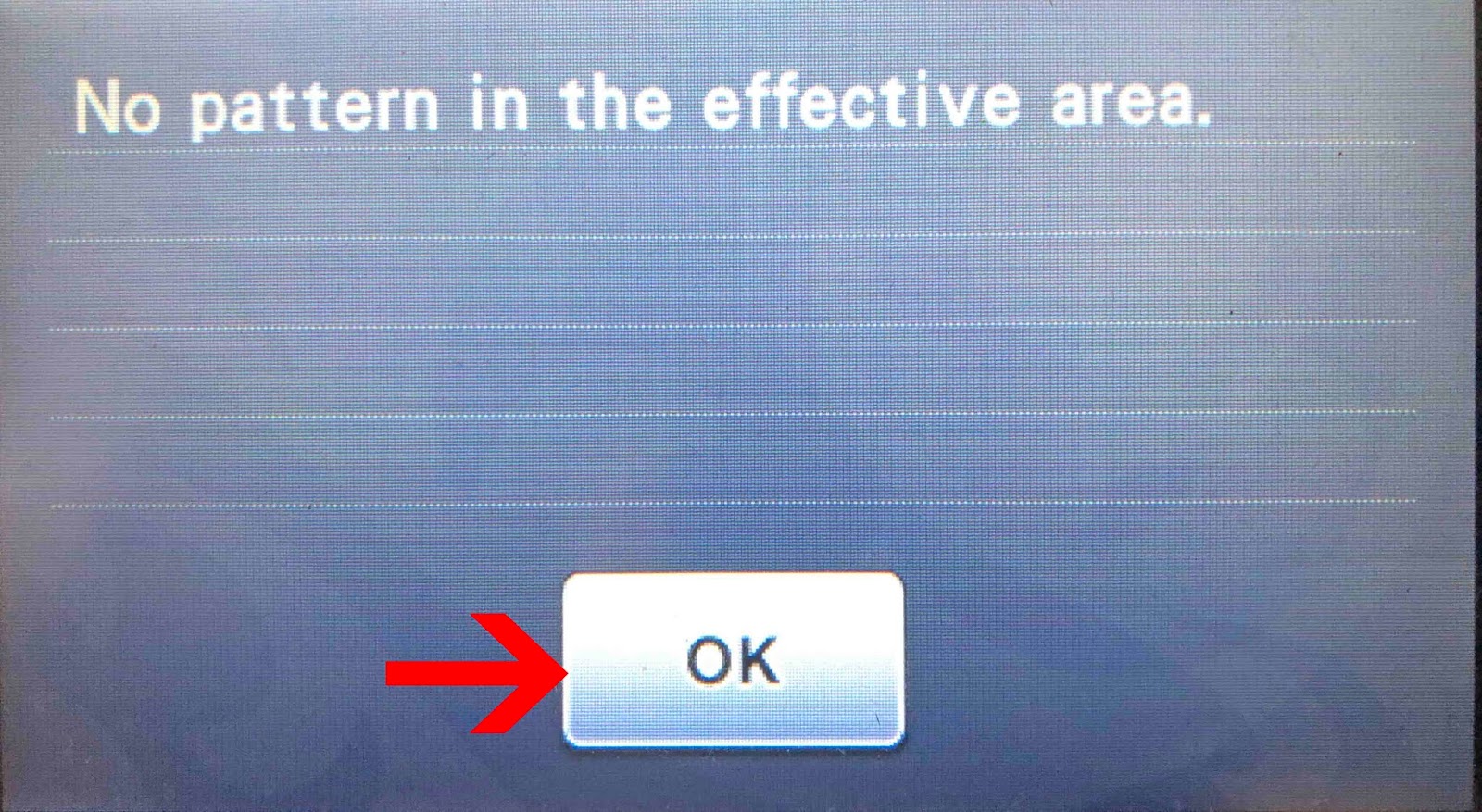

17- If the design is too fine the below window will appear. Click OK.

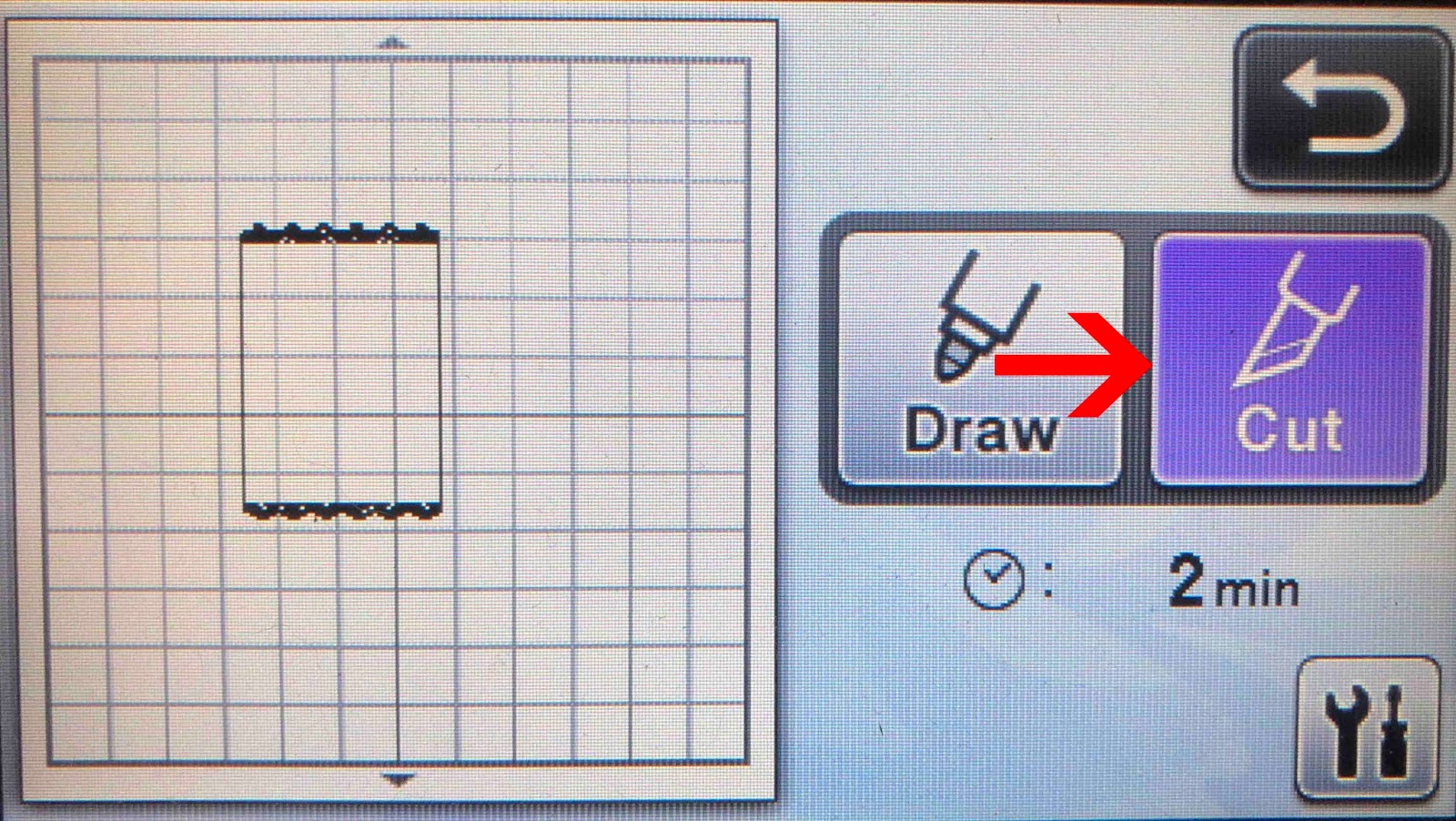

18- you may then need to use the cut function as a draw function. Click cut. Then click the setting tab.

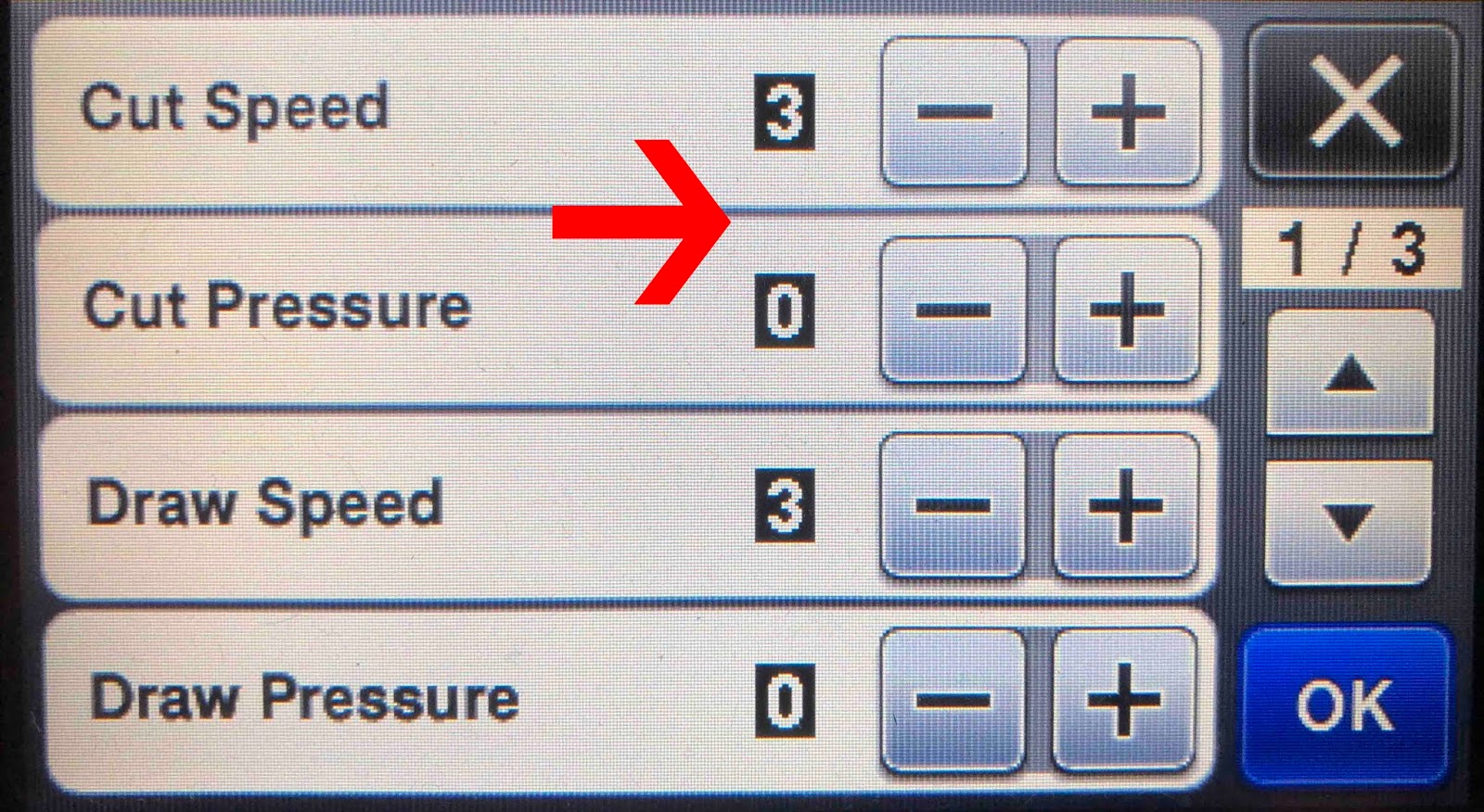

19- Change the cut settings to the settings you would use to draw.

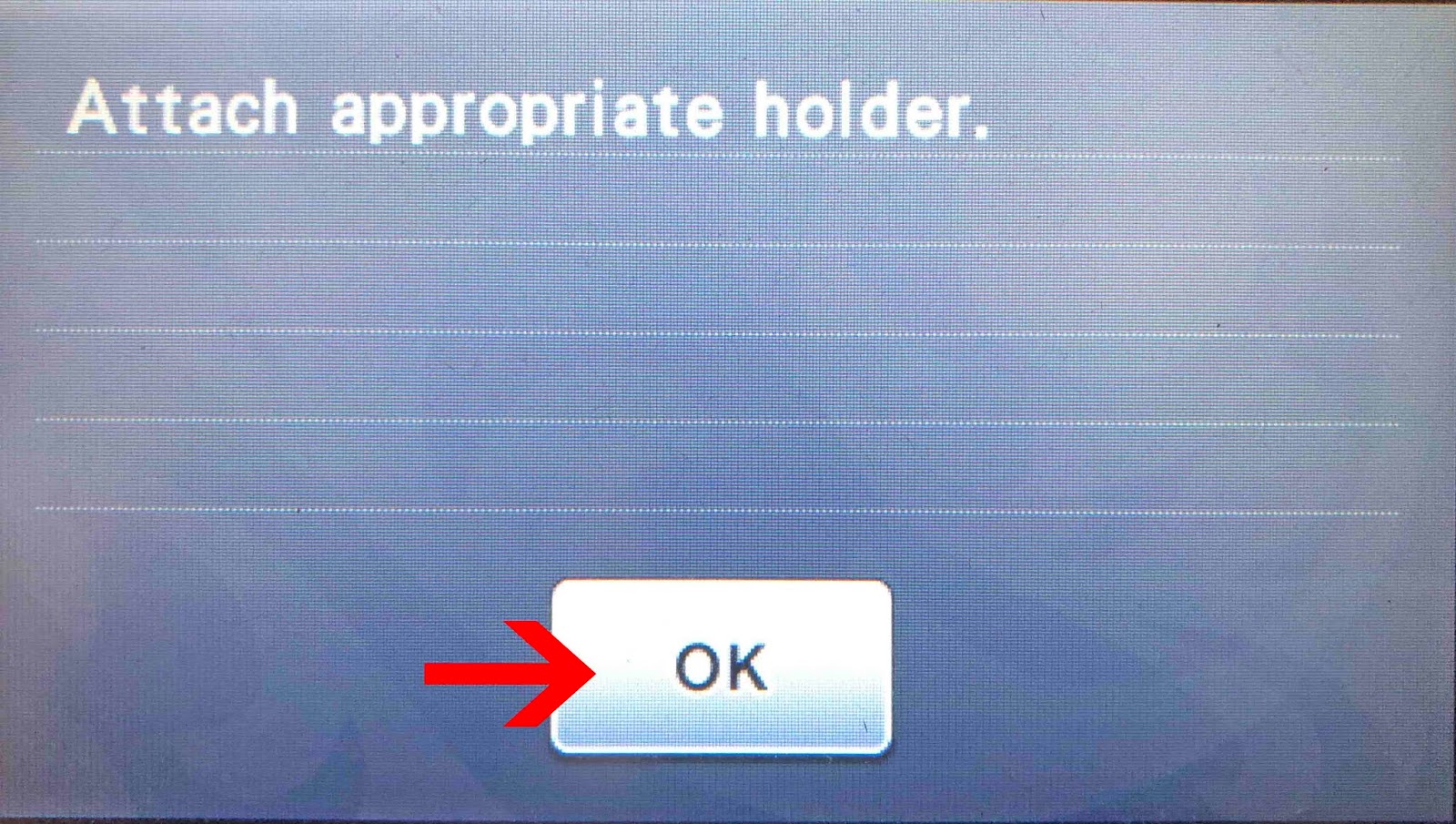

20- The machine will ask you to attach the holder, even if the holder is in place. Click OK.




21- Click the start icon. The machine will use the cut function to draw with the design as if it was using the draw function.
