Fixing error E92001 in brother scan and cut canvas workspace

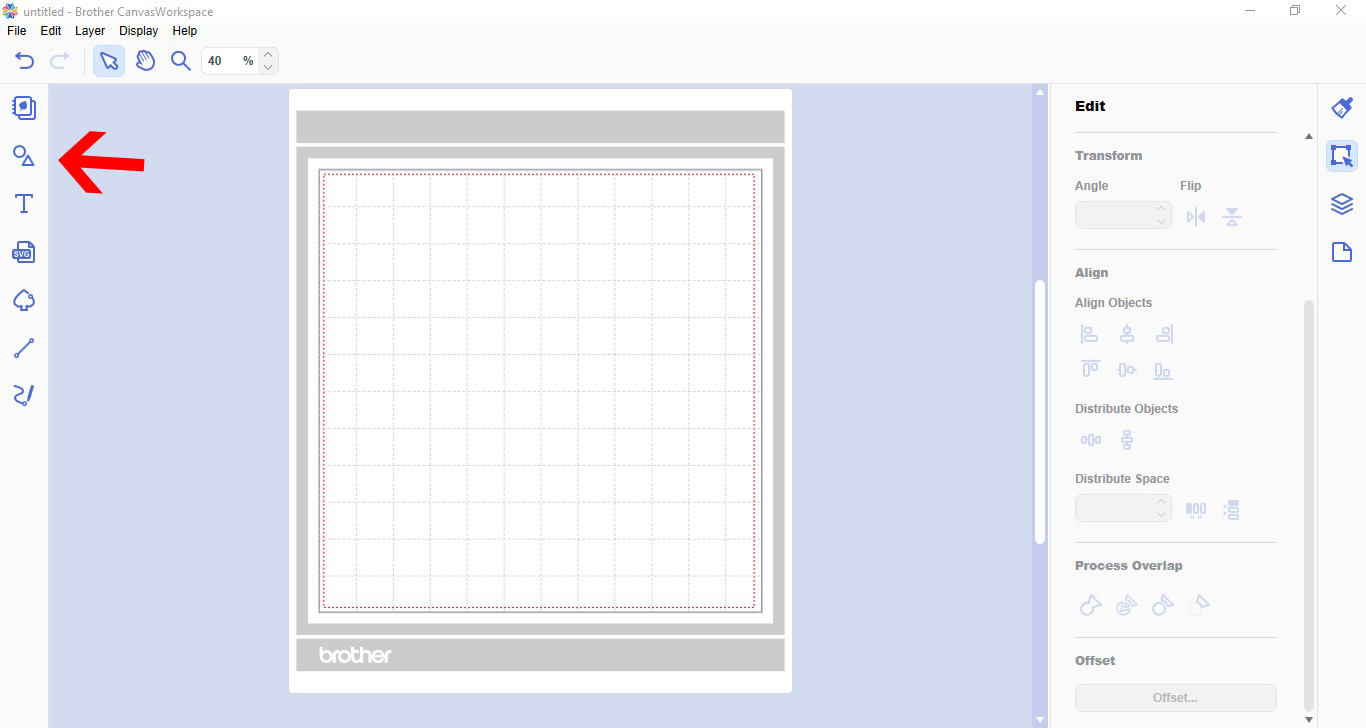

1- Open canvas workspace. Click on the shape tool.

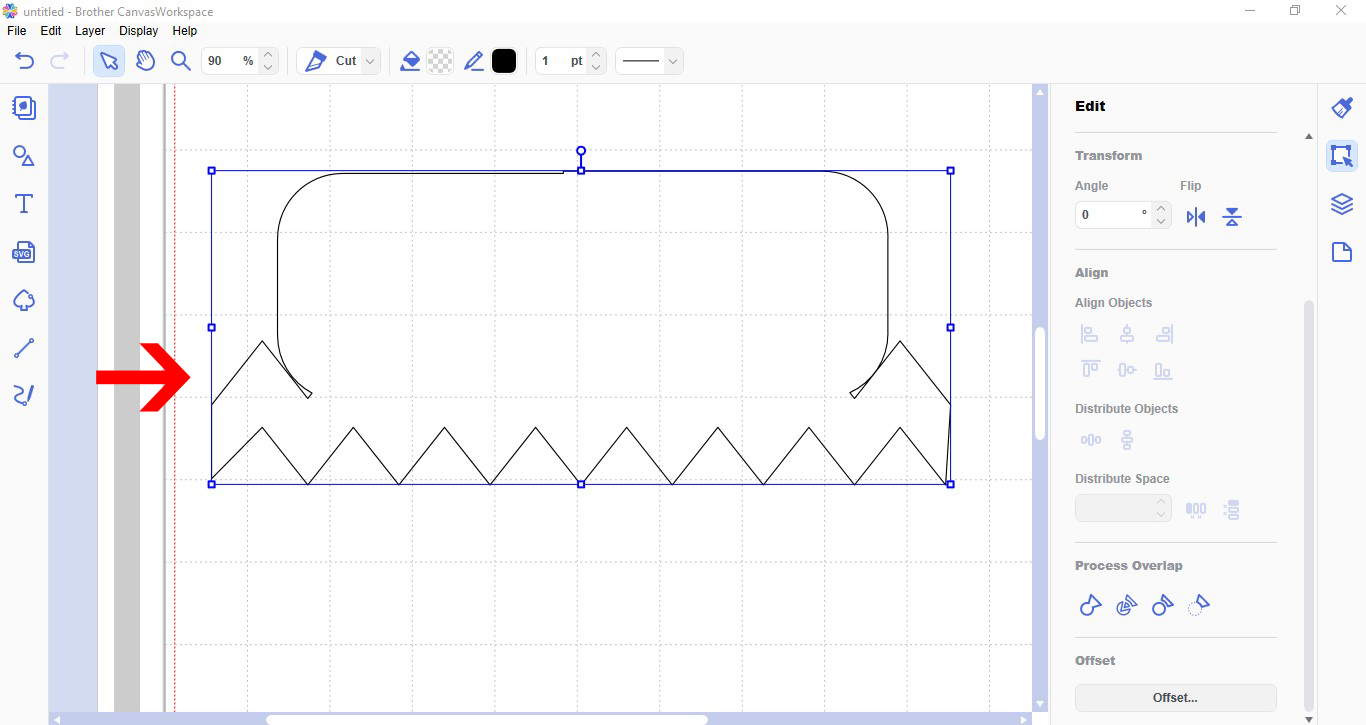

2- Add your design. you can insert a SVG or create your own.

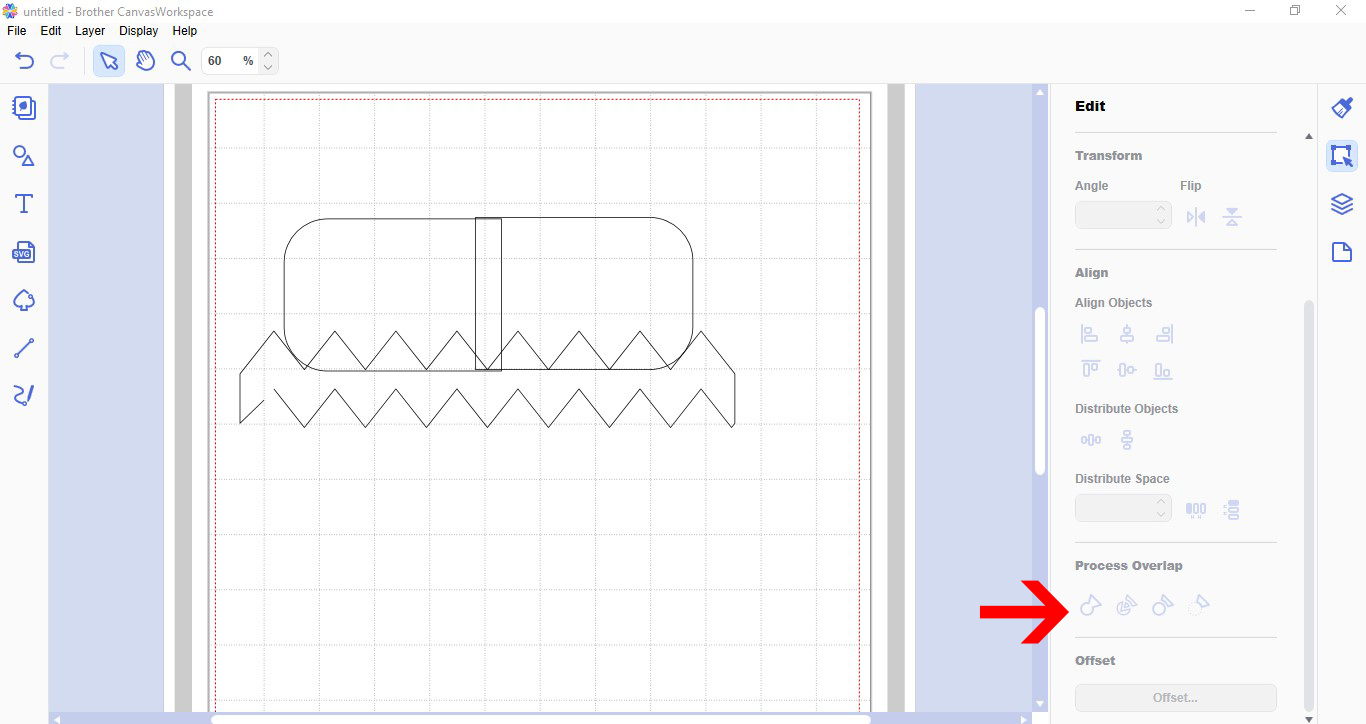

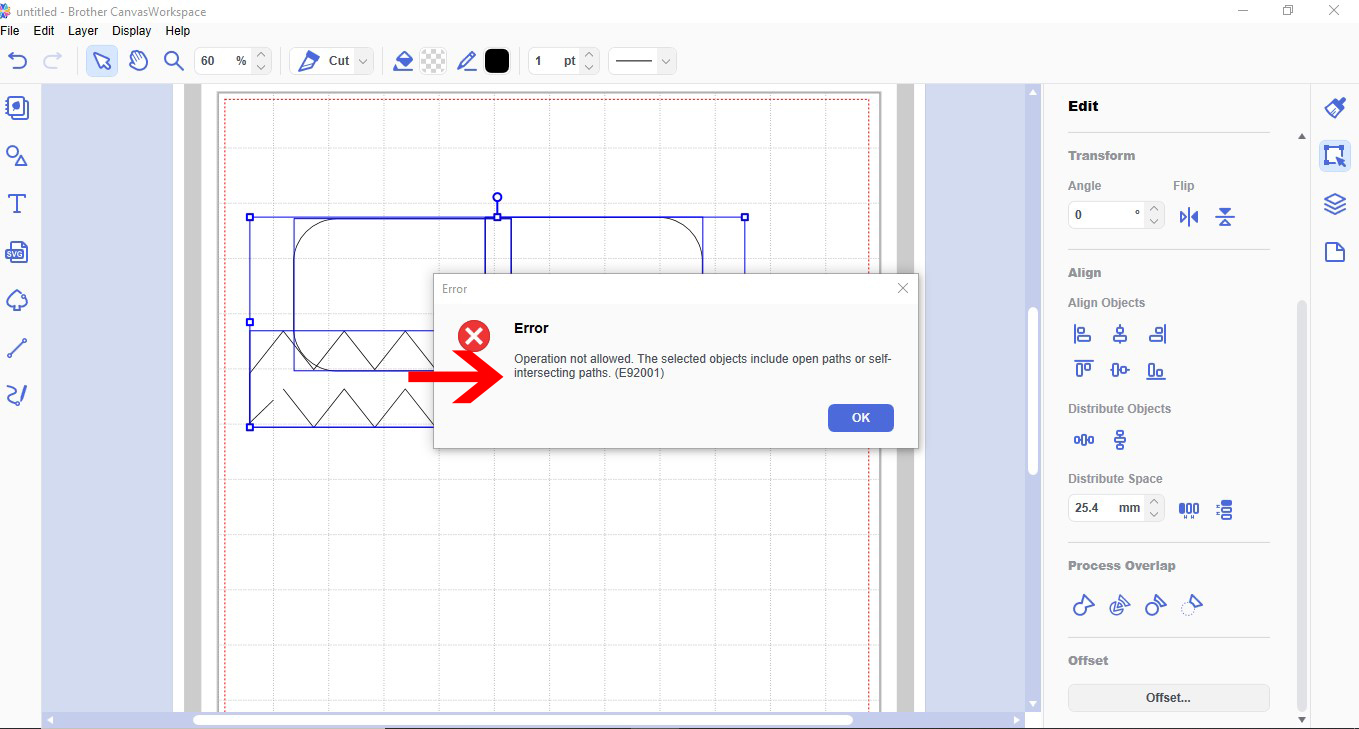

3- When you have a design and you want to weld another design to it, sometimes you can get an error message. One of the most common ones is E92001 (previously ERRS07)
4- This error means that somewhere on your design there is an open line that will need closing. you cannot weld when there is not a closed design to weld with.

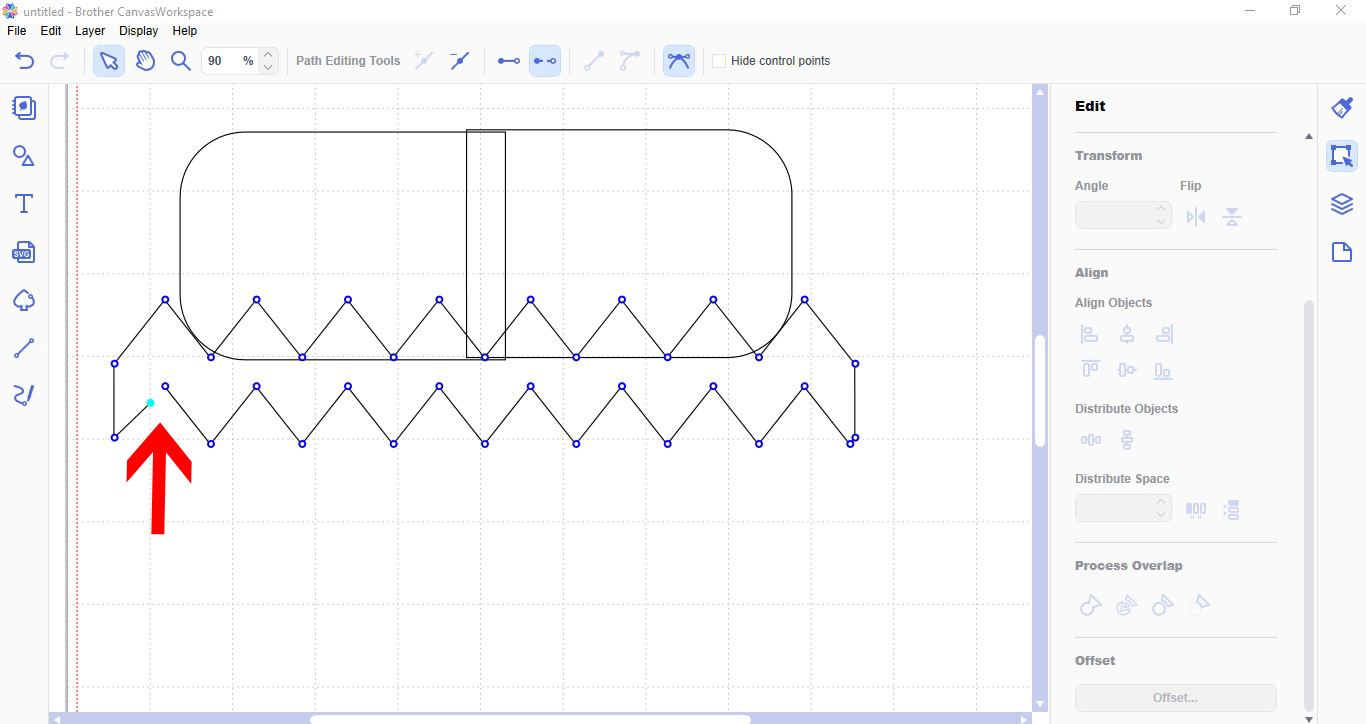

Double click on your designs. this will bring up the node editing tool. If you have a open node it will highlight aqua.
5- Click and drag the aqua node to a non highlighted one. This will join the gap. you can also click the join icon at the top toolbar that will also join the nodes together.
6- Once the opening has been fixed you can reselect the design you want welded and click weld on process overlap.
7- Your design will now weld.
