Foiling on vellum with silhouette studio and the foil quill

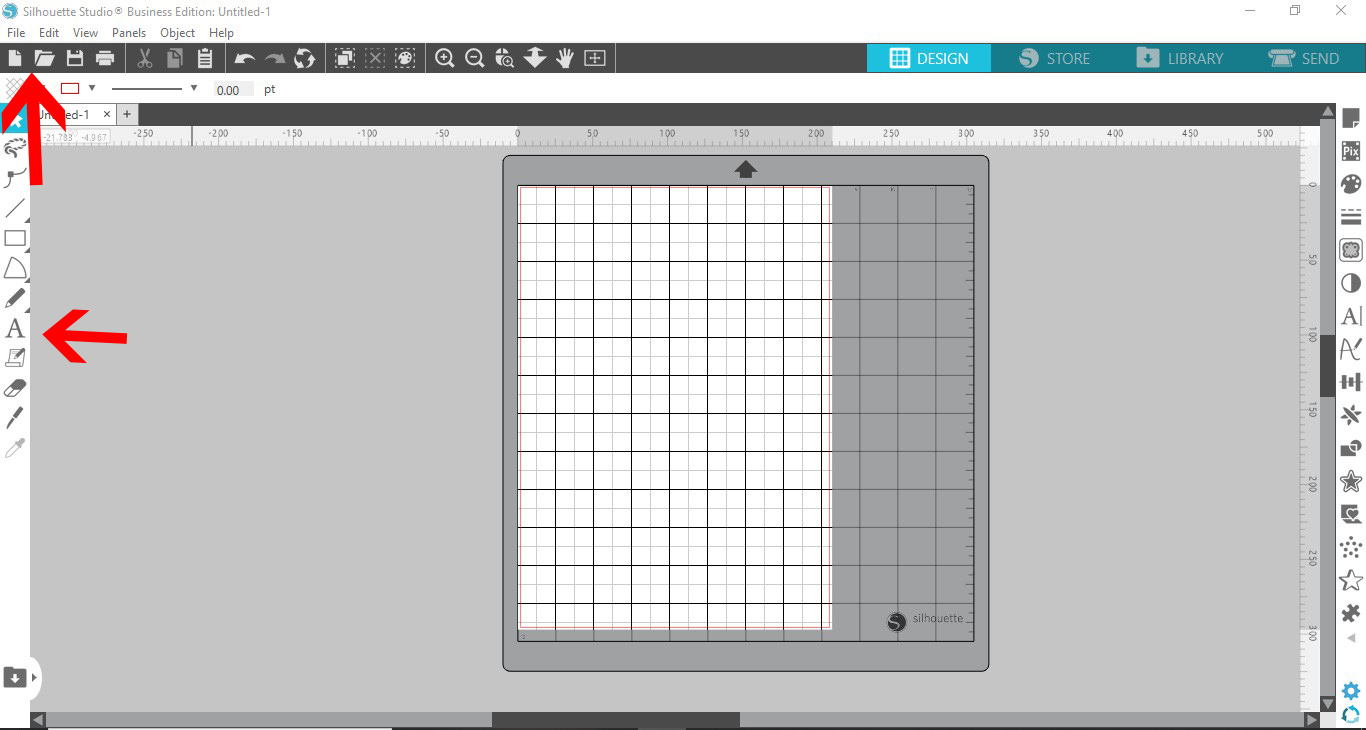

1- Open silhouette studio. Open up your design or you can type text.

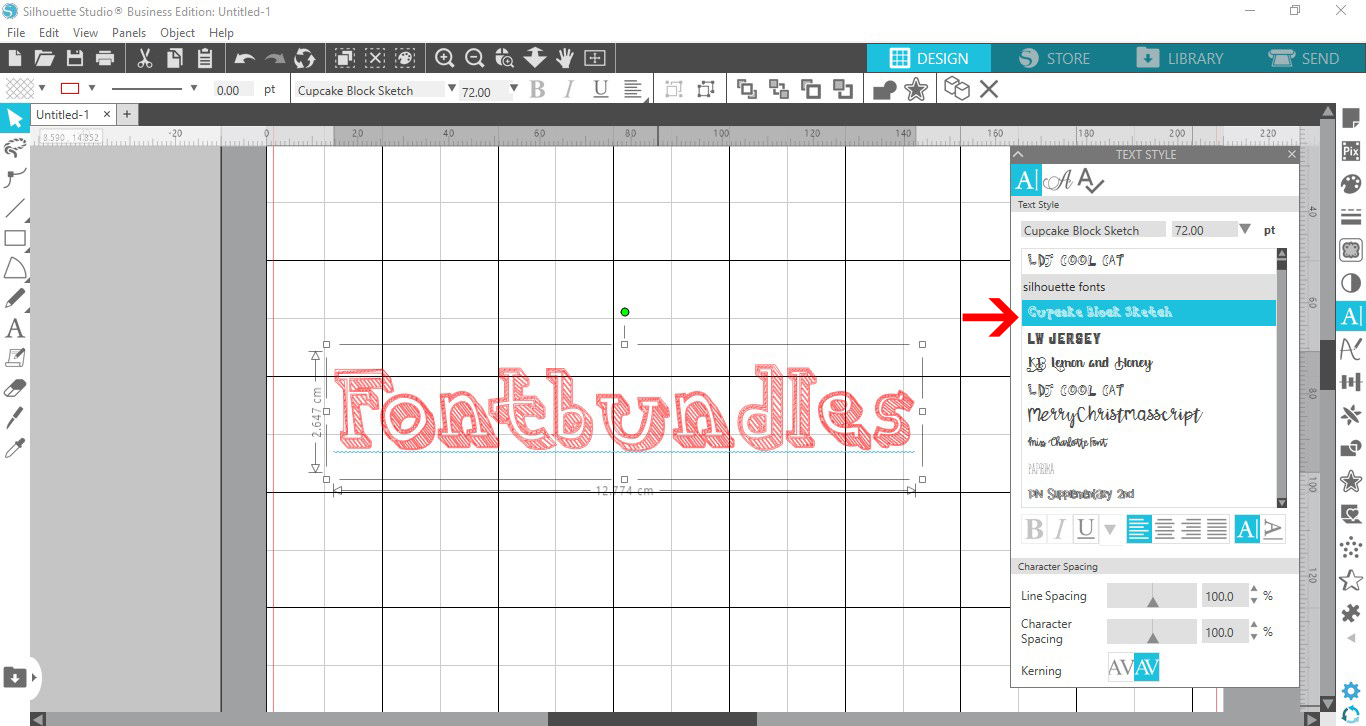

2- I have chosen to use text. Type your text.

3- Change your font to either a single line font or a font you can sketch fill.

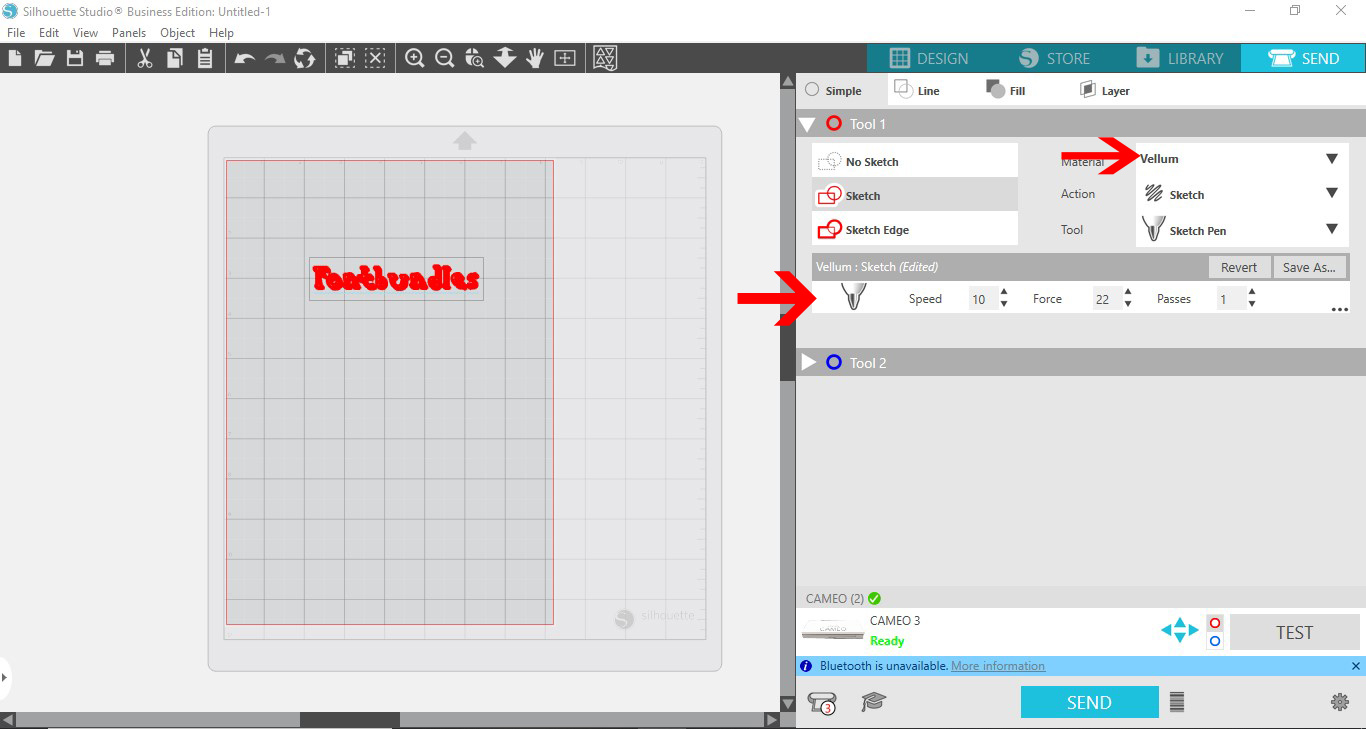

4- Go to the send screen when your design is finished. Choose vellum as the medium. Set the tool to sketch pen, and the speed to 10 ,force to 22 and pass 1. With vellum it can easily rip, so getting the force and speed right makes all the difference.

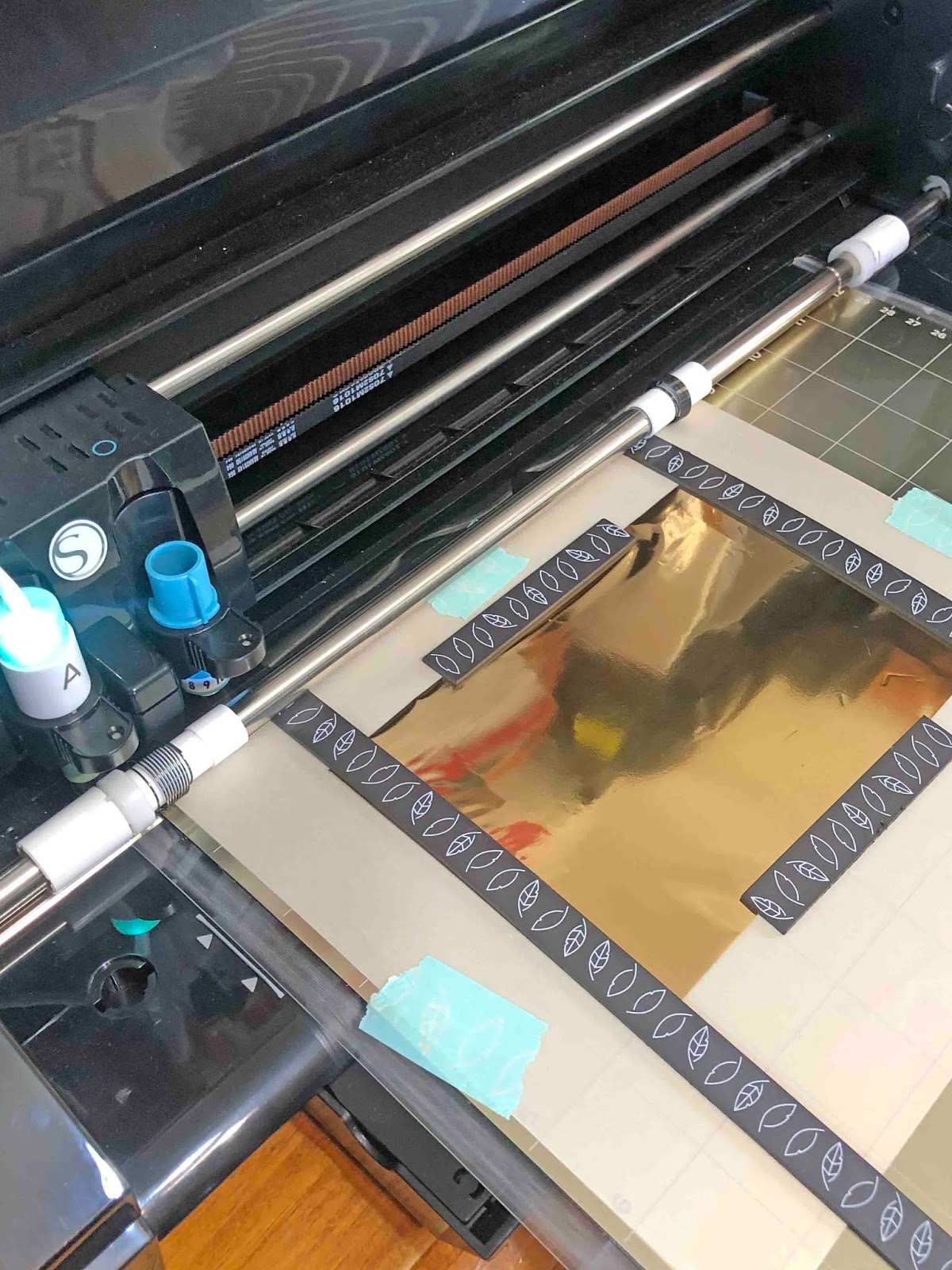

5- Send to your machine. Make sure the vellum is attached flat so the foil tip will not catch on the vellum.

6- Your design is now foiled. The design should not rub off from the vellum.
