How to create a basic stencil in Silhouette Alta

Posted on 28th September 2018

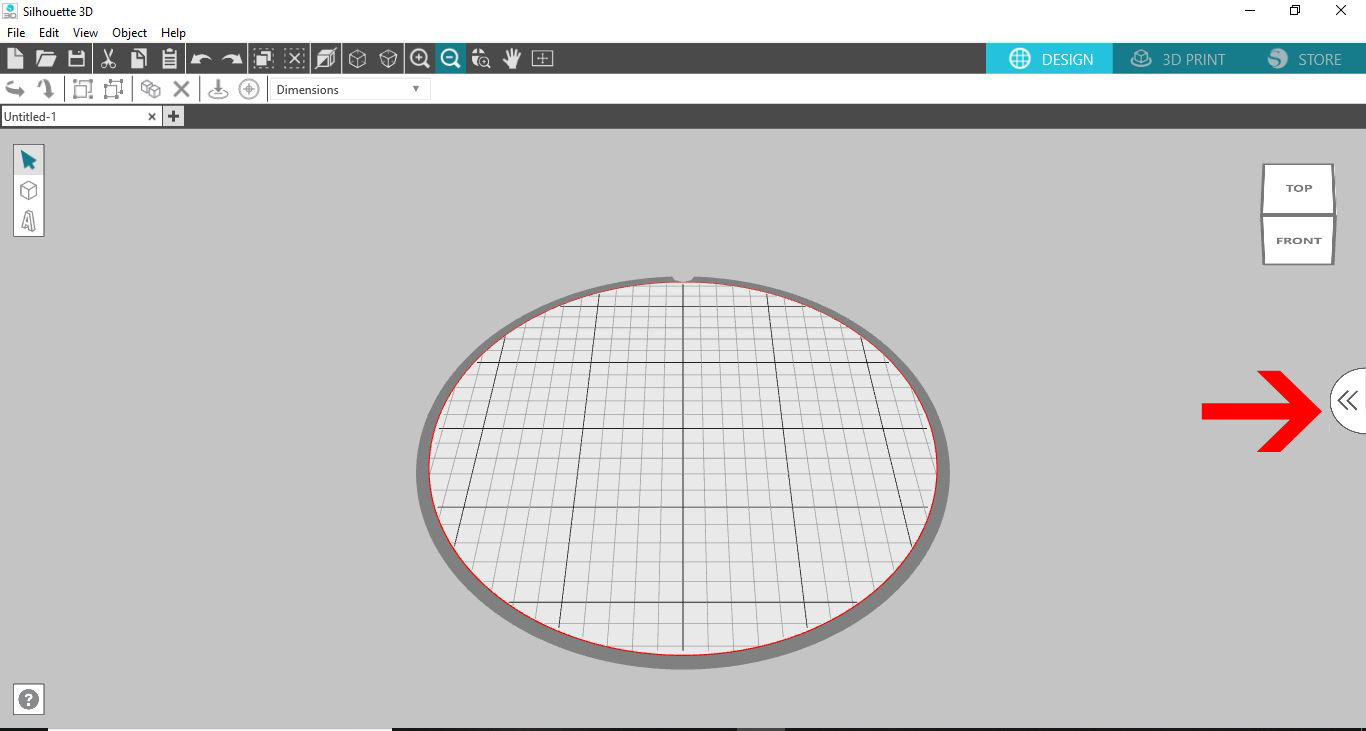

1- Open Silhouette Alta software. Click on the right side tab.

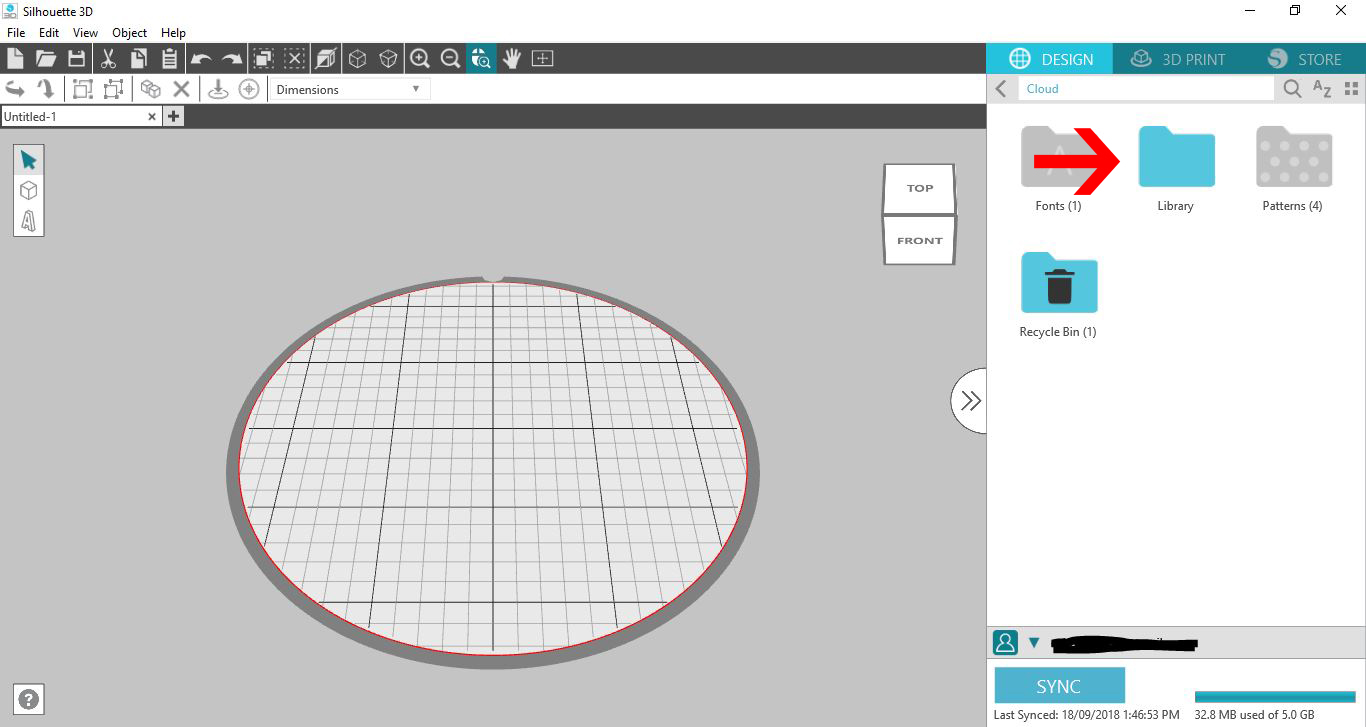

2- Click on the library folder.

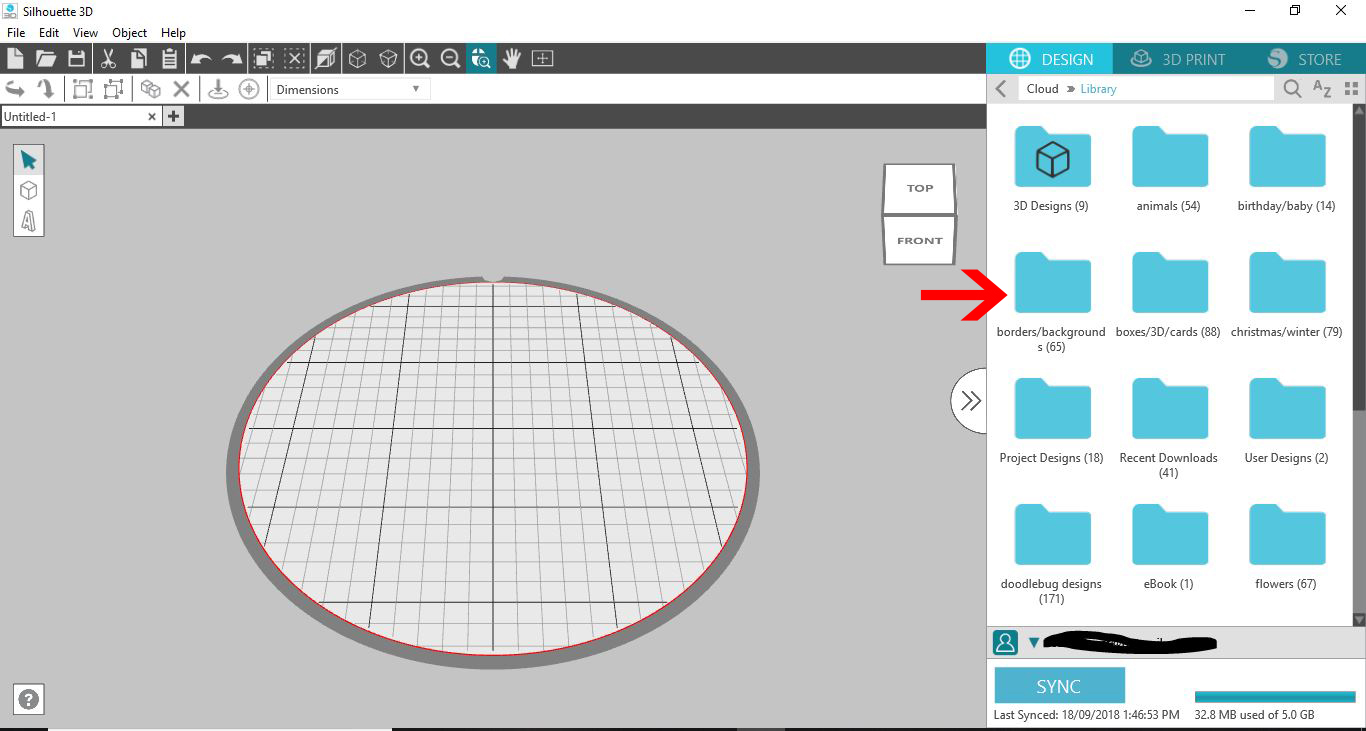

3- Find a folder where you may have background files.

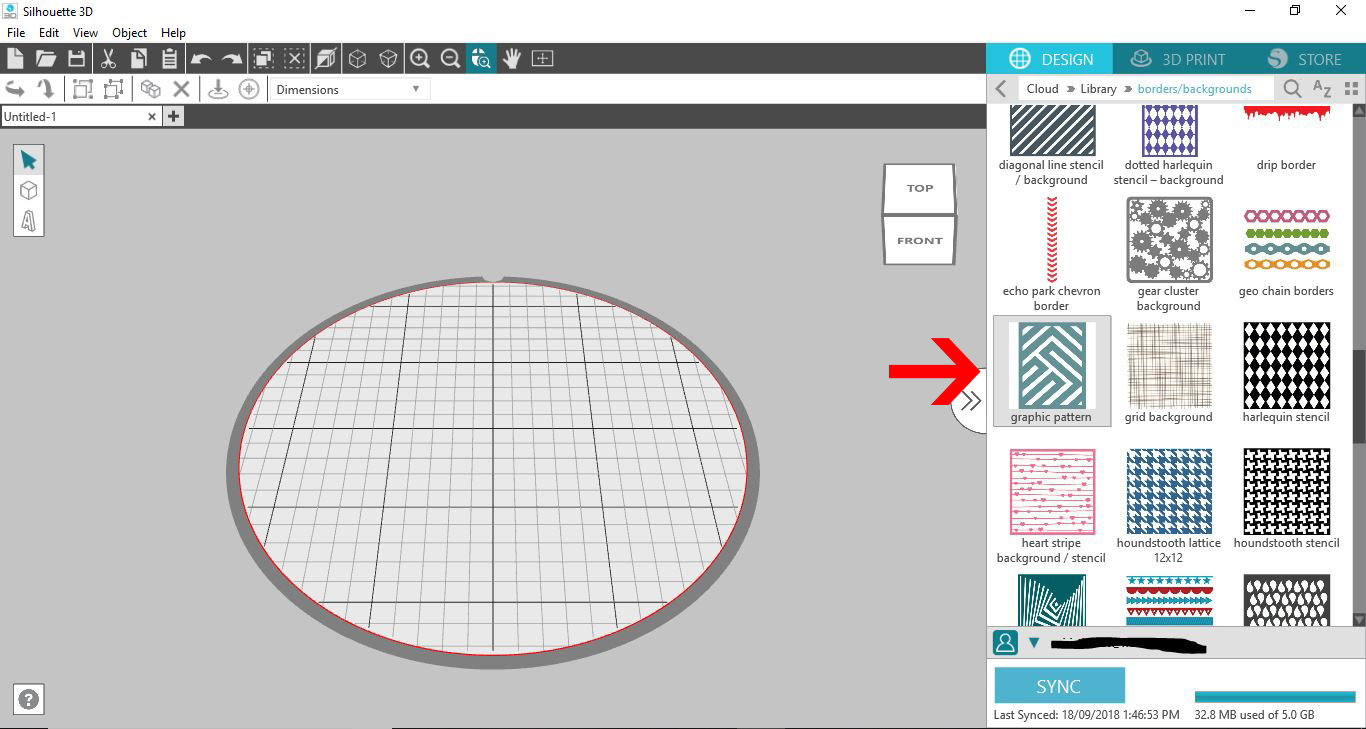

4- Double click on your image.

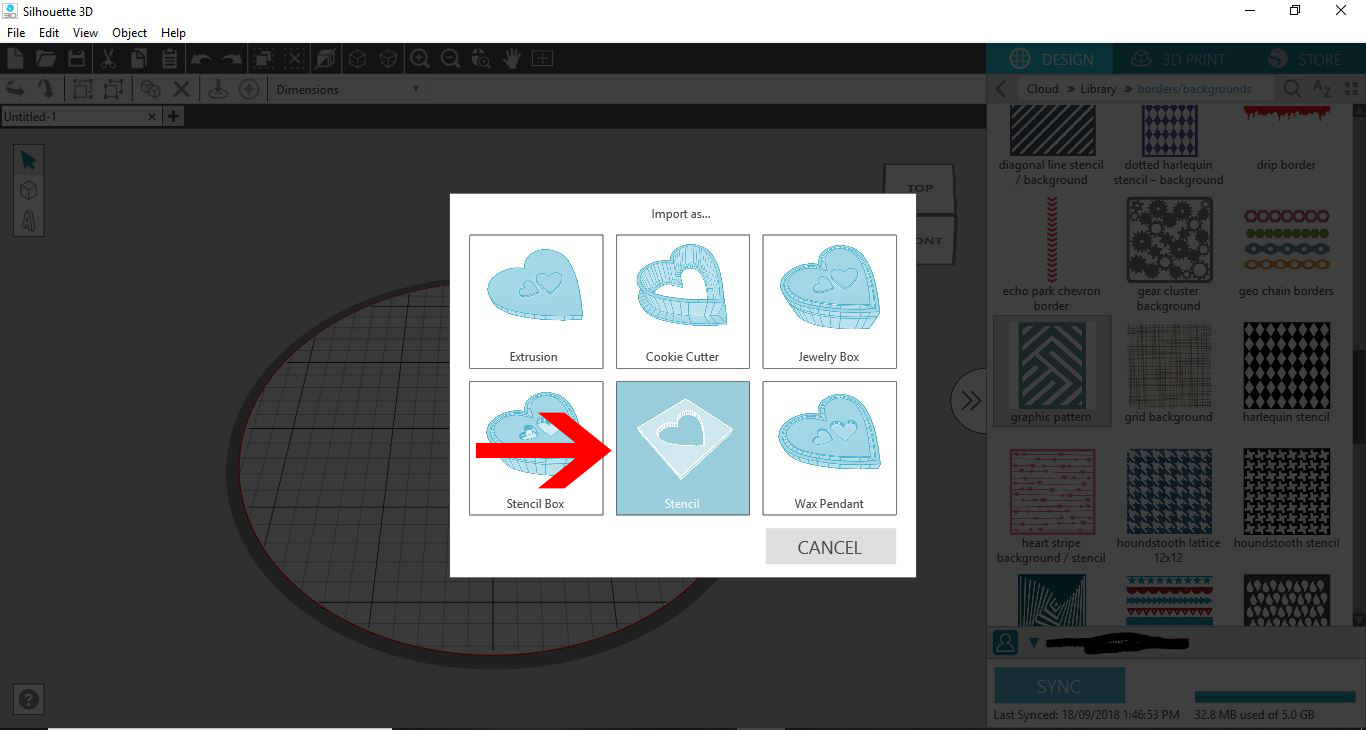

5- A new window will appear. Click on the stencil option.

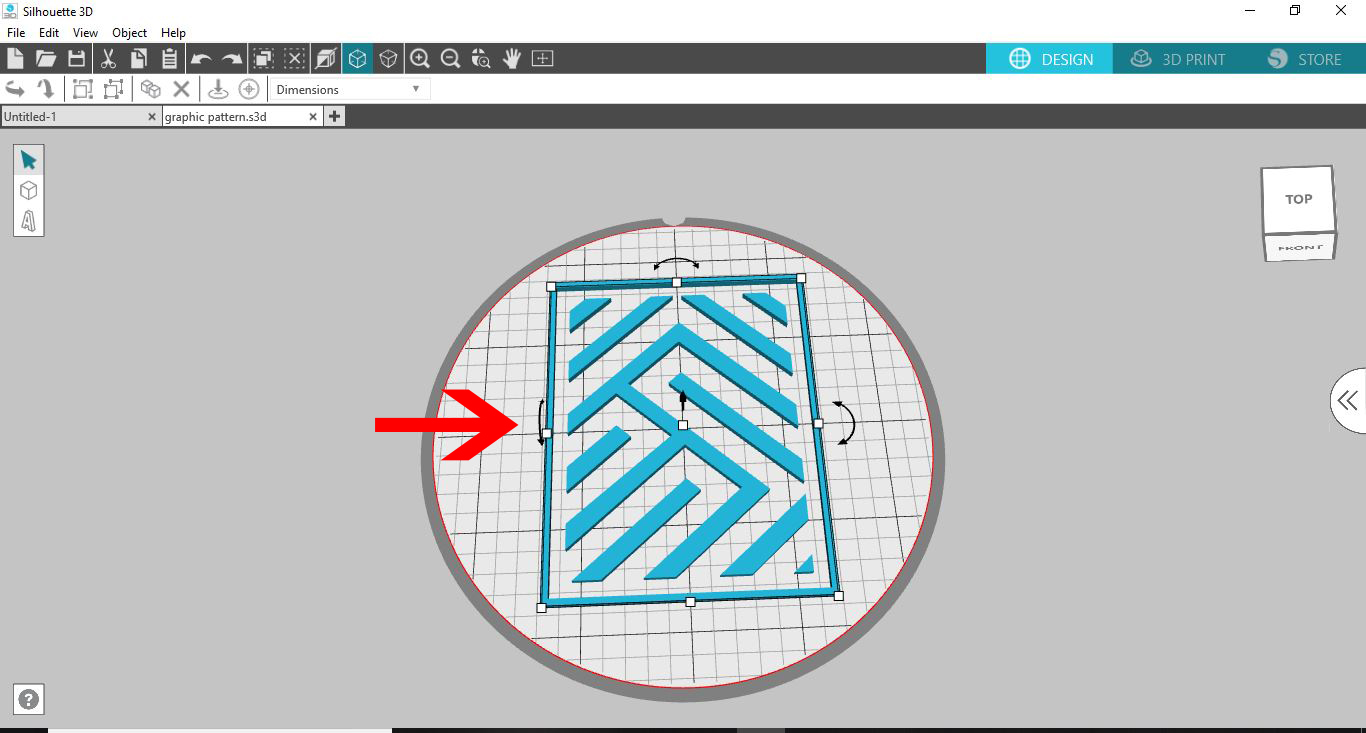

6- Your design will appear as a stencil. With this particular design there are gaps from the edge to the design which need to be joined to create a whole stencil.

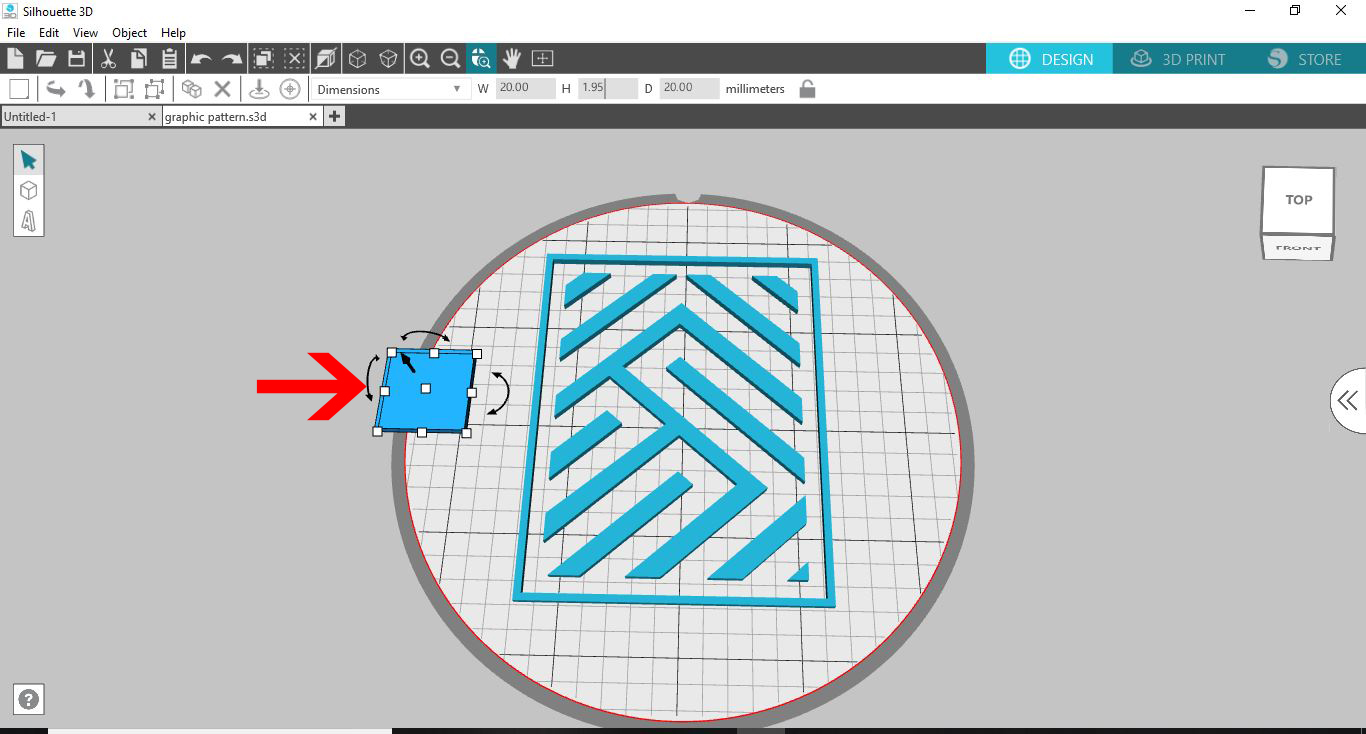

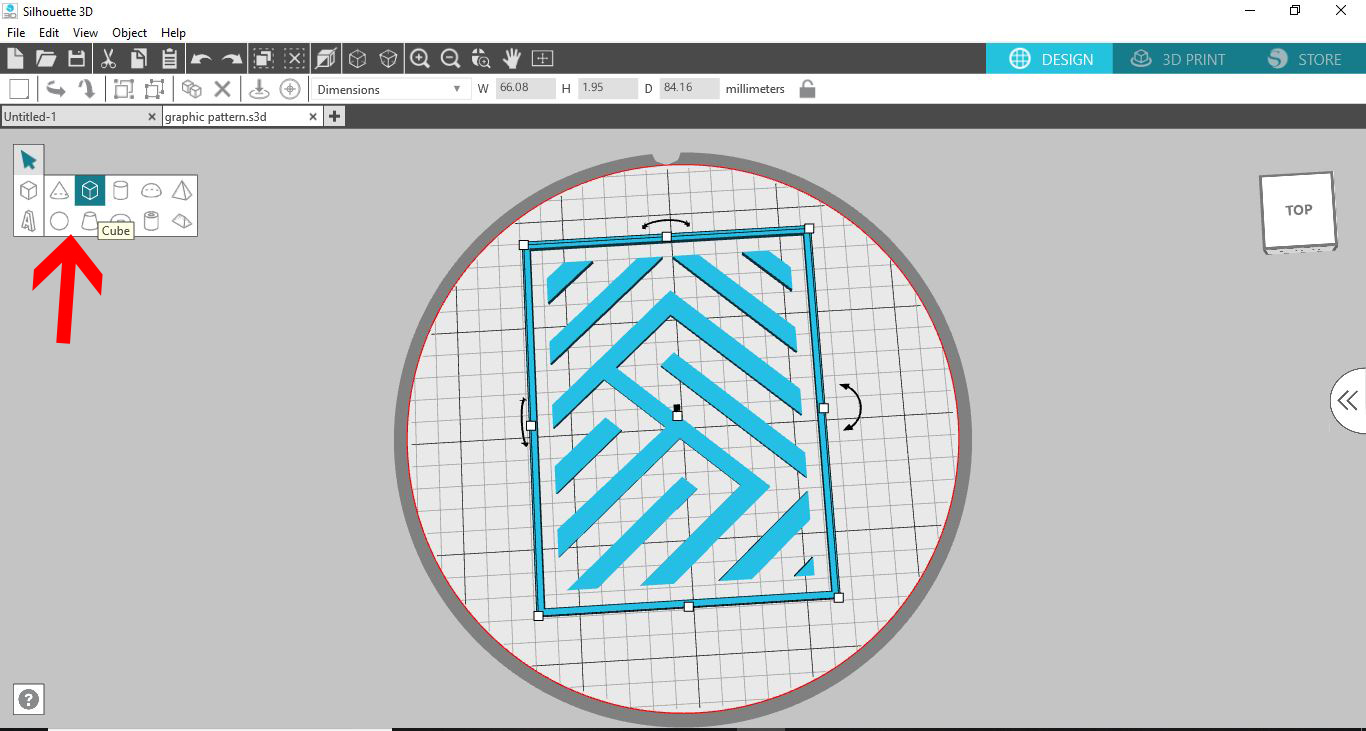

7- Click on the shape option. Then click on the cube.


8- Flatten the cube to the same height as the stencil.

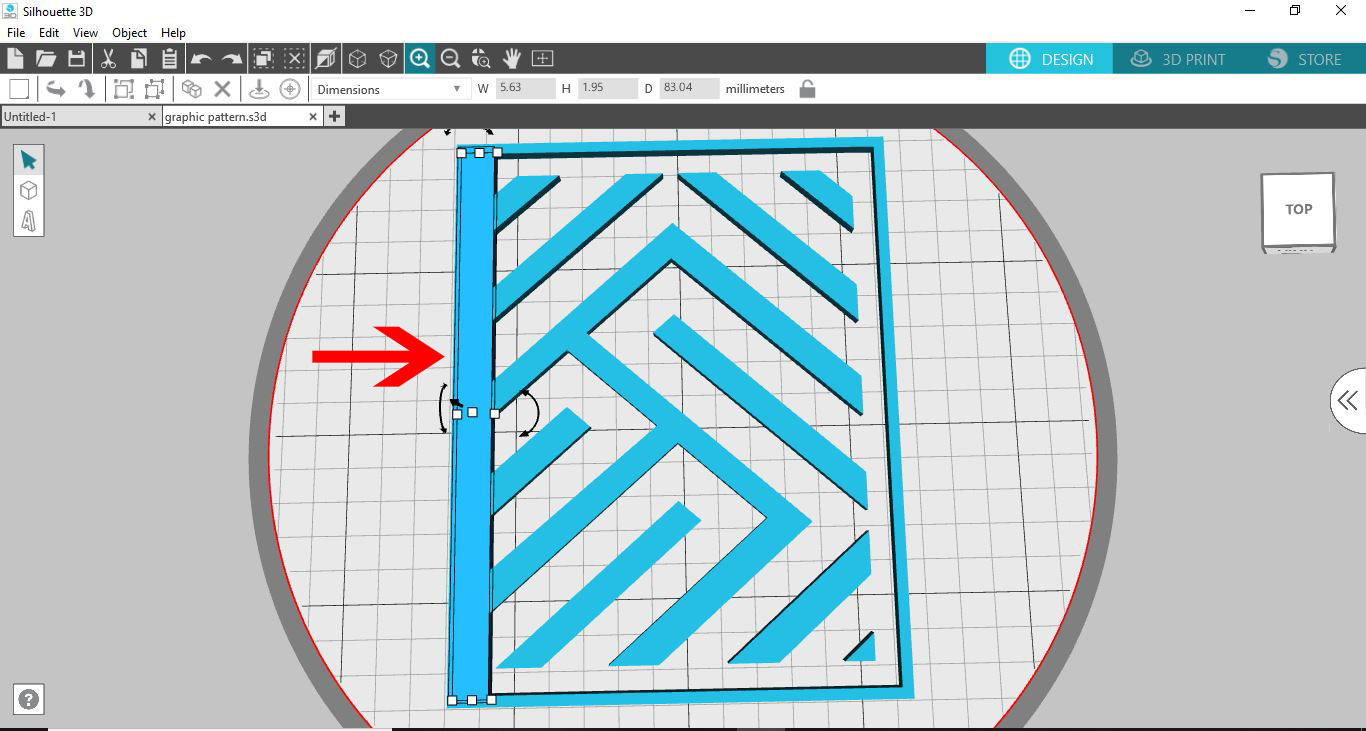

9- Resize the flattened cube to a long thin rectangle. Place on the edge of your stencil to join the middle of the design to the edge.

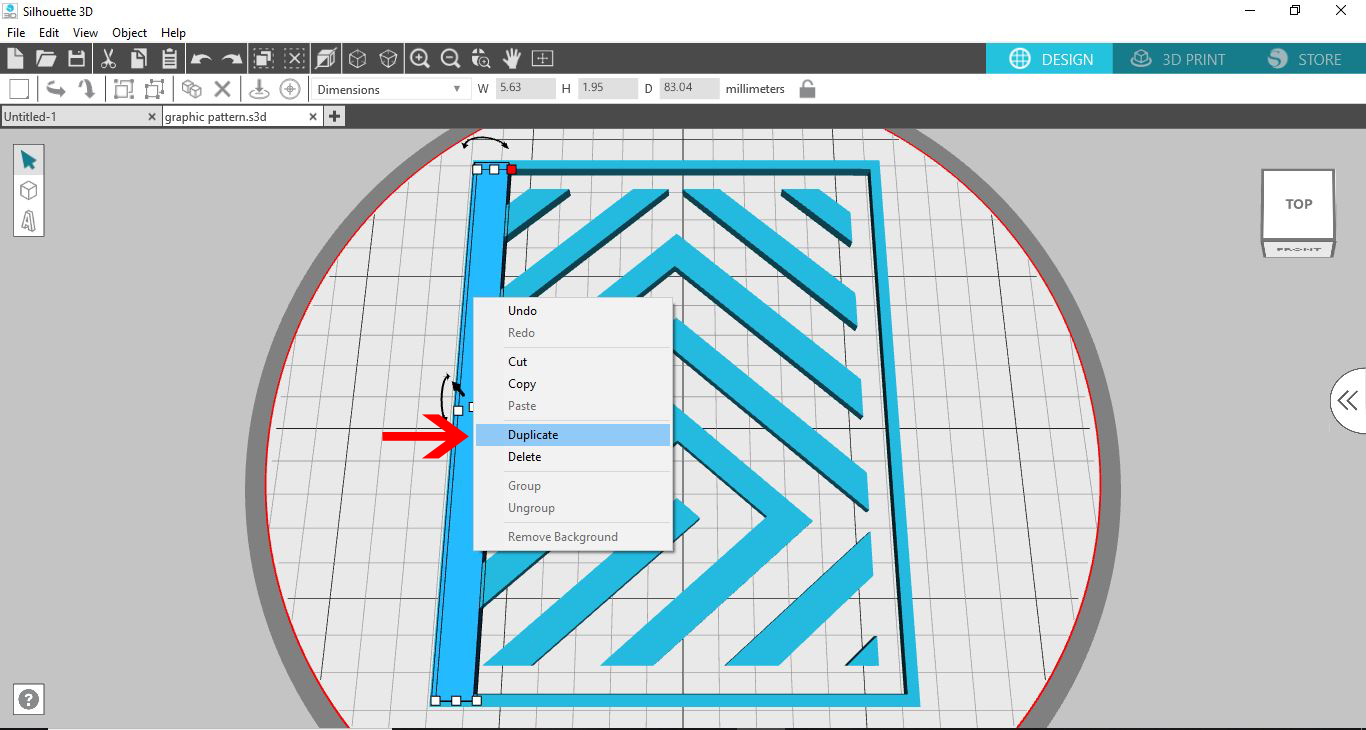

10- Right click on the rectangle and duplicate.

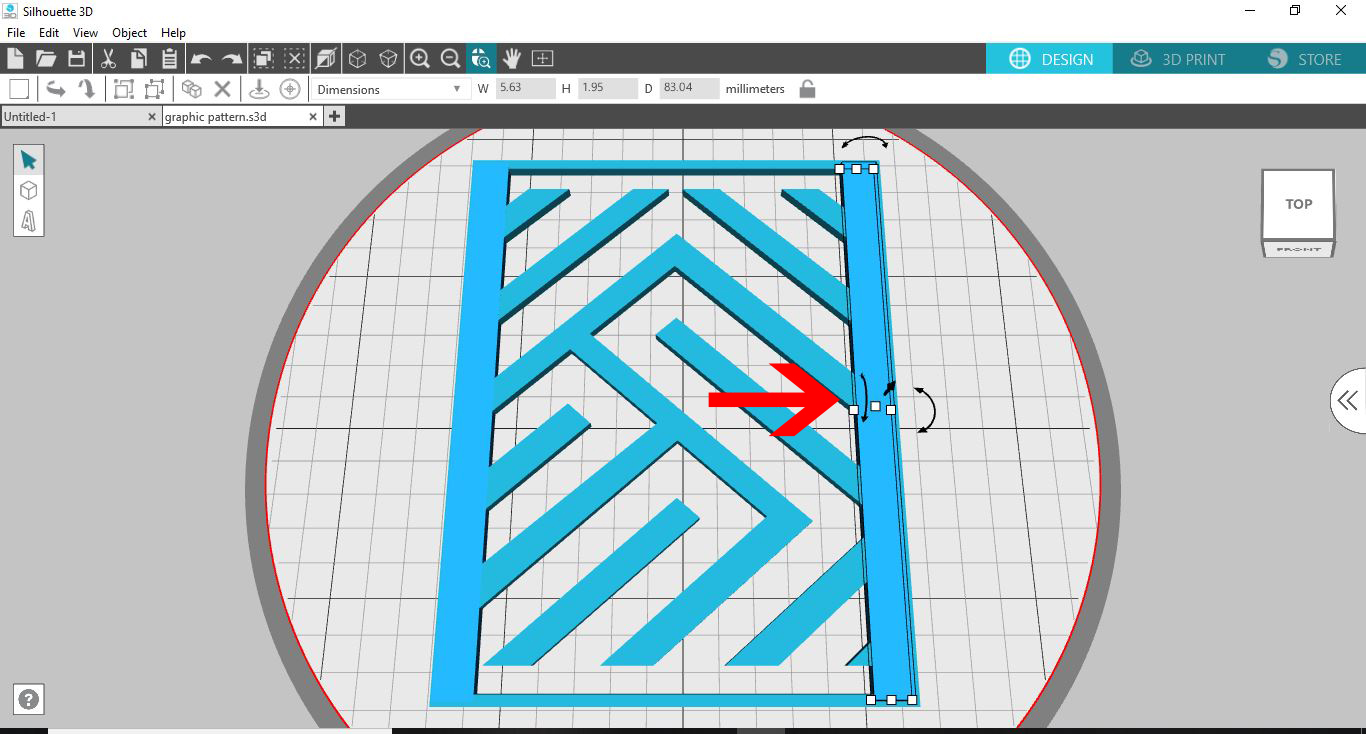

11- Move the duplicated rectangle to the right joining the middle to the edge.

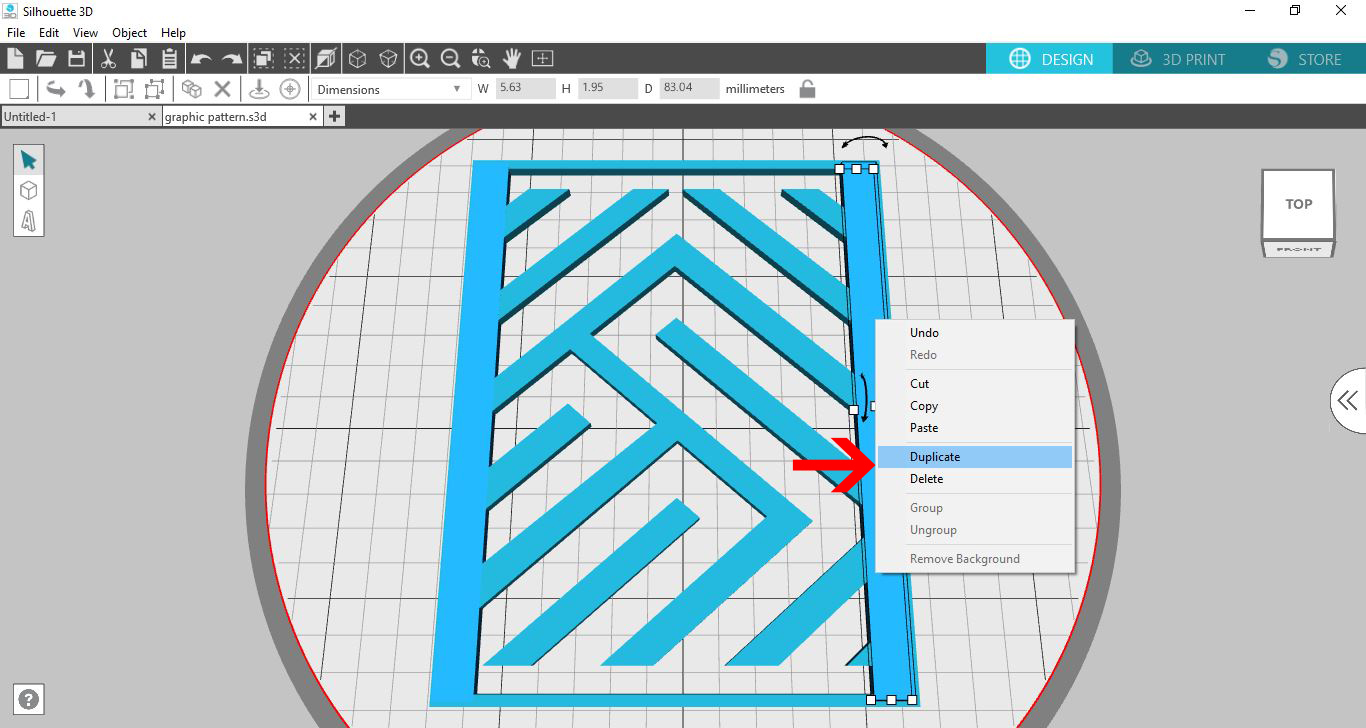

12- Right click and duplicate again.

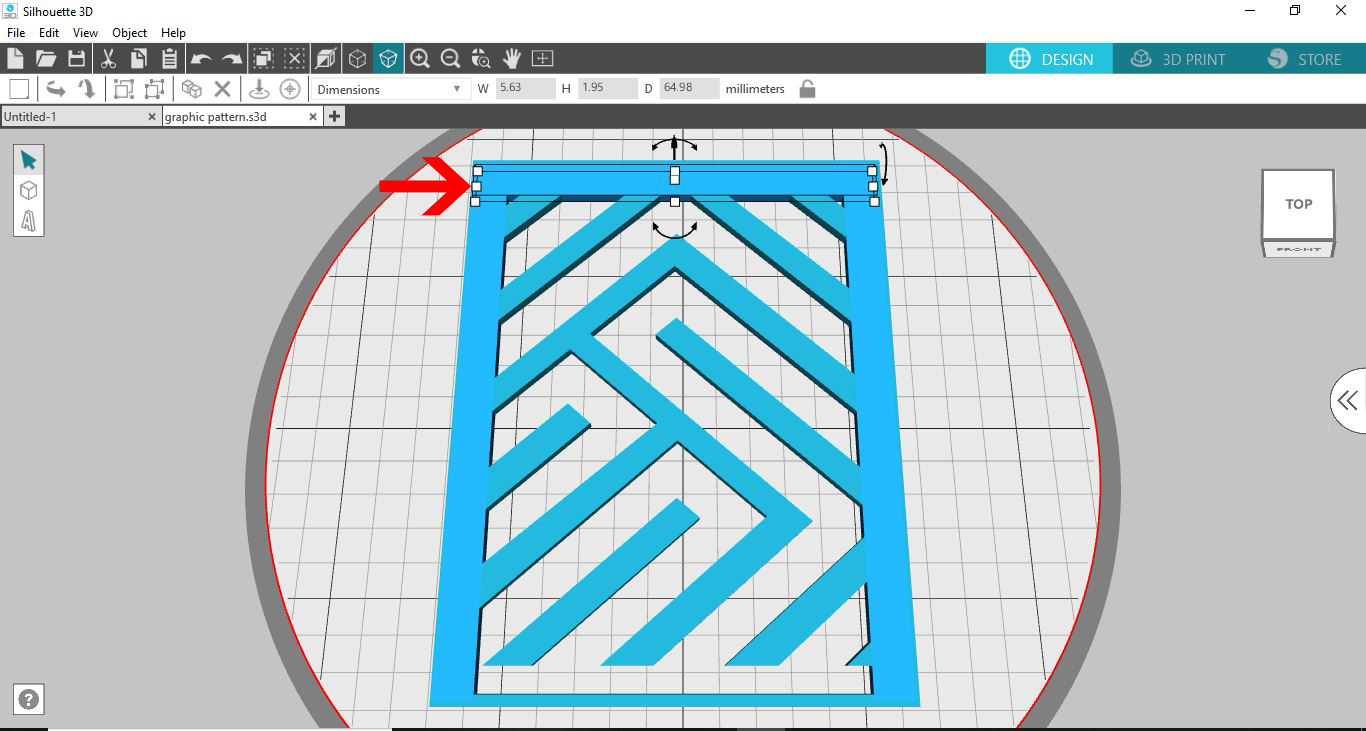

13- Rotate then shorten and place across the top of the stencil to join the edge with the middle stencil design.

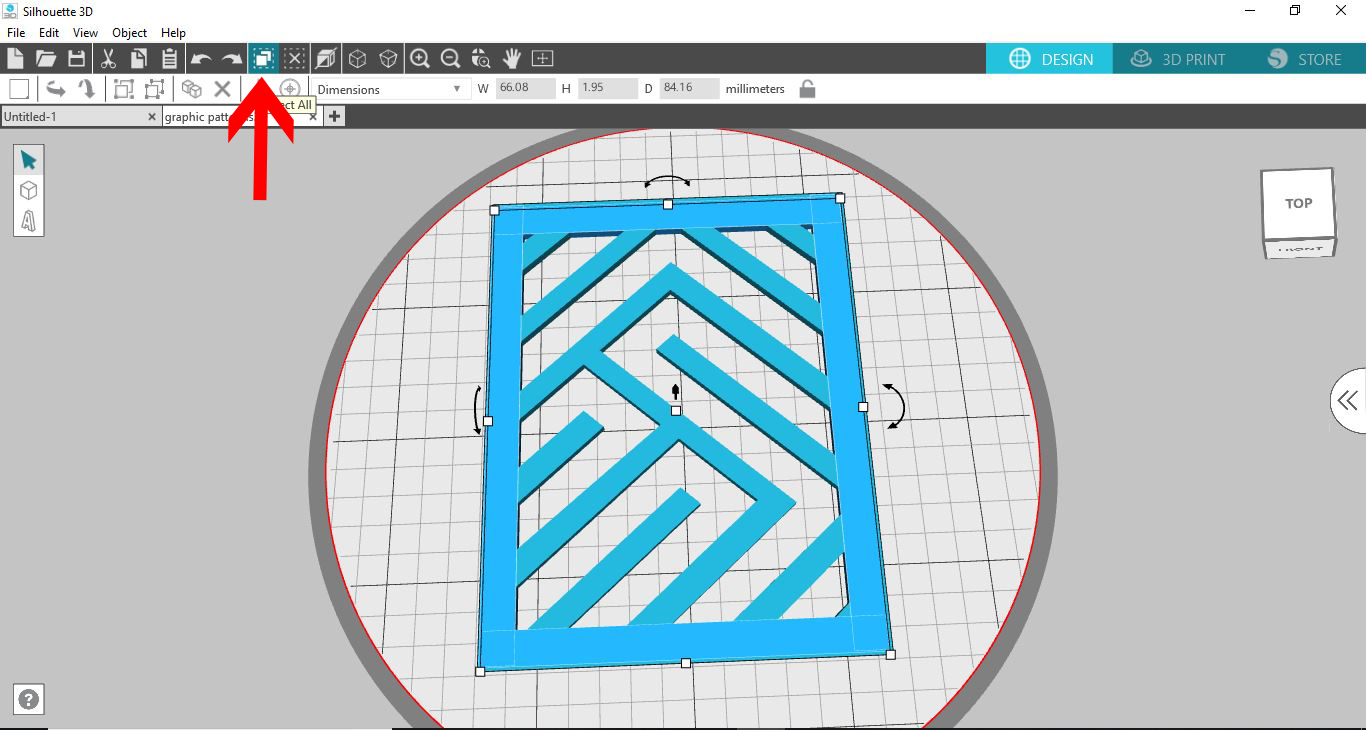

14- Repeat again to the bottom of your design. then click on the select all icon.

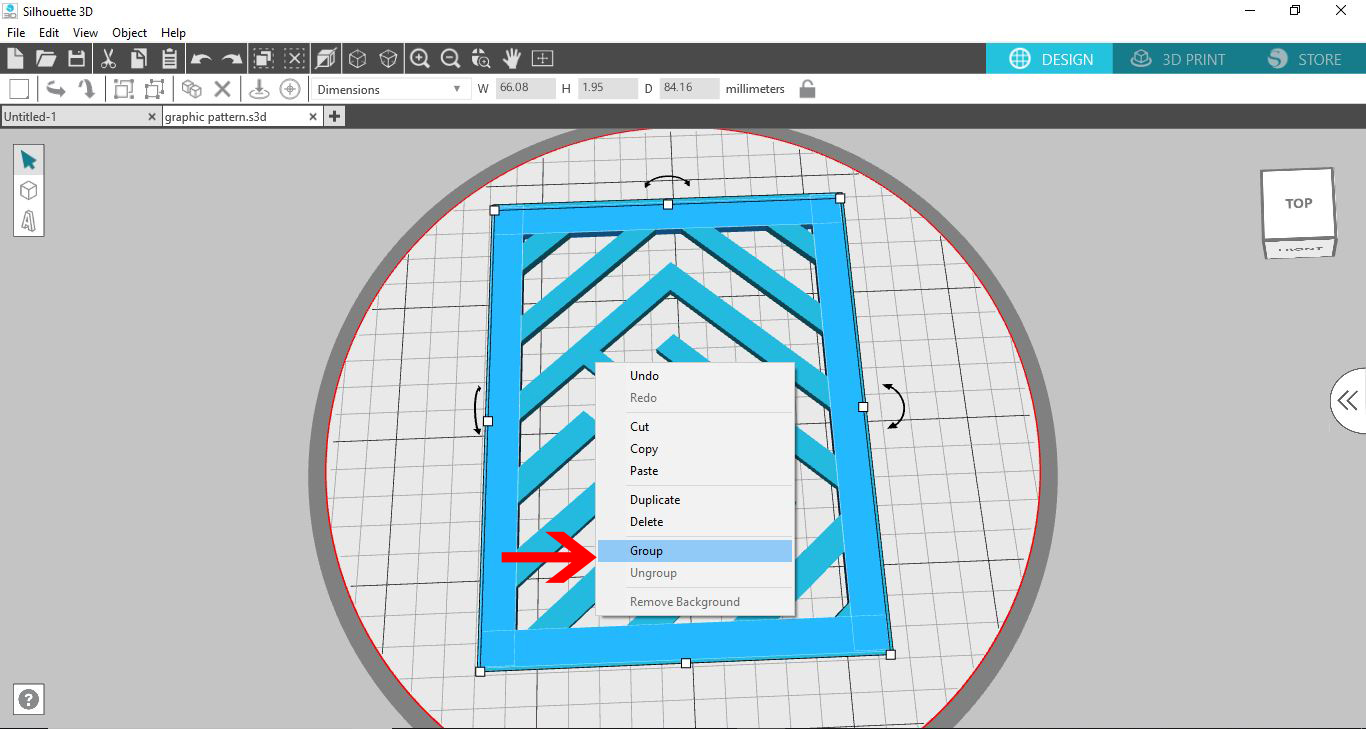

15- Right click and group. By grouping the pieces the printer will print as one design not several separate small ones.

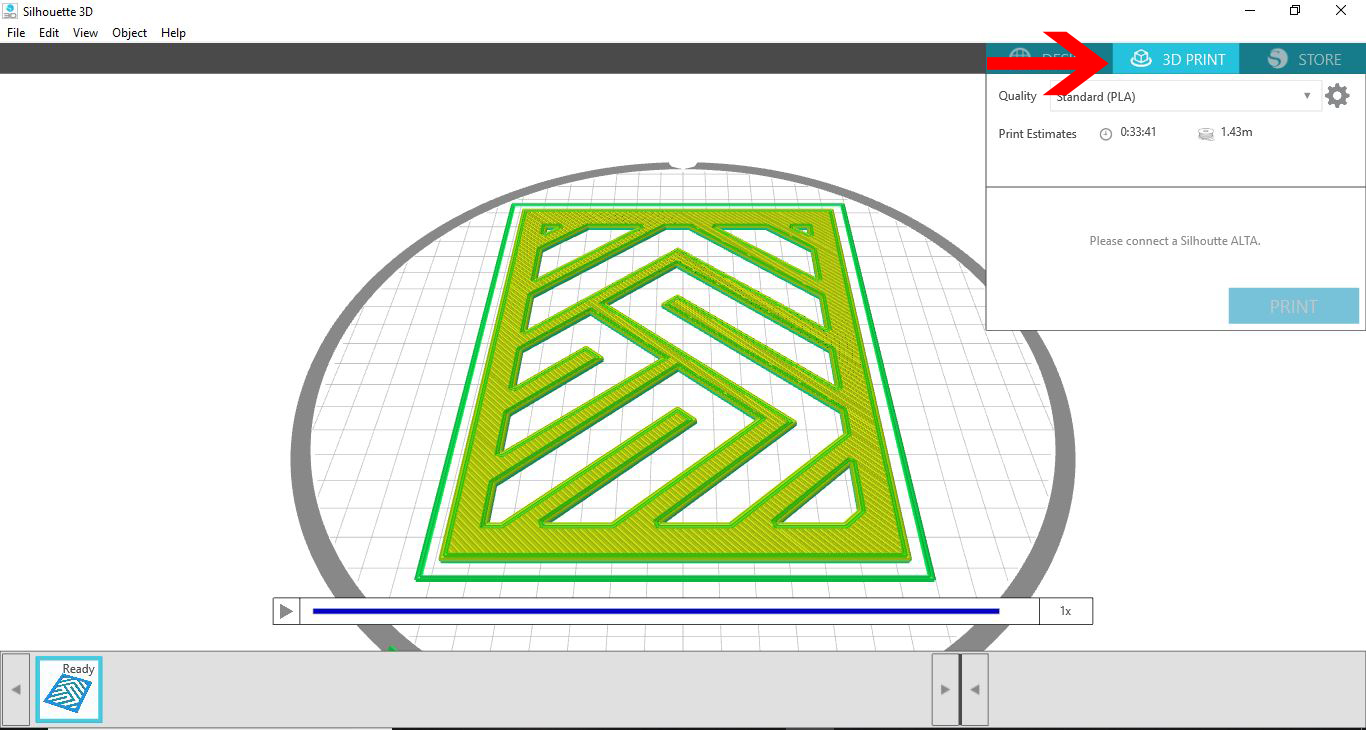

16- Click on 3D print and then select your print options and print.

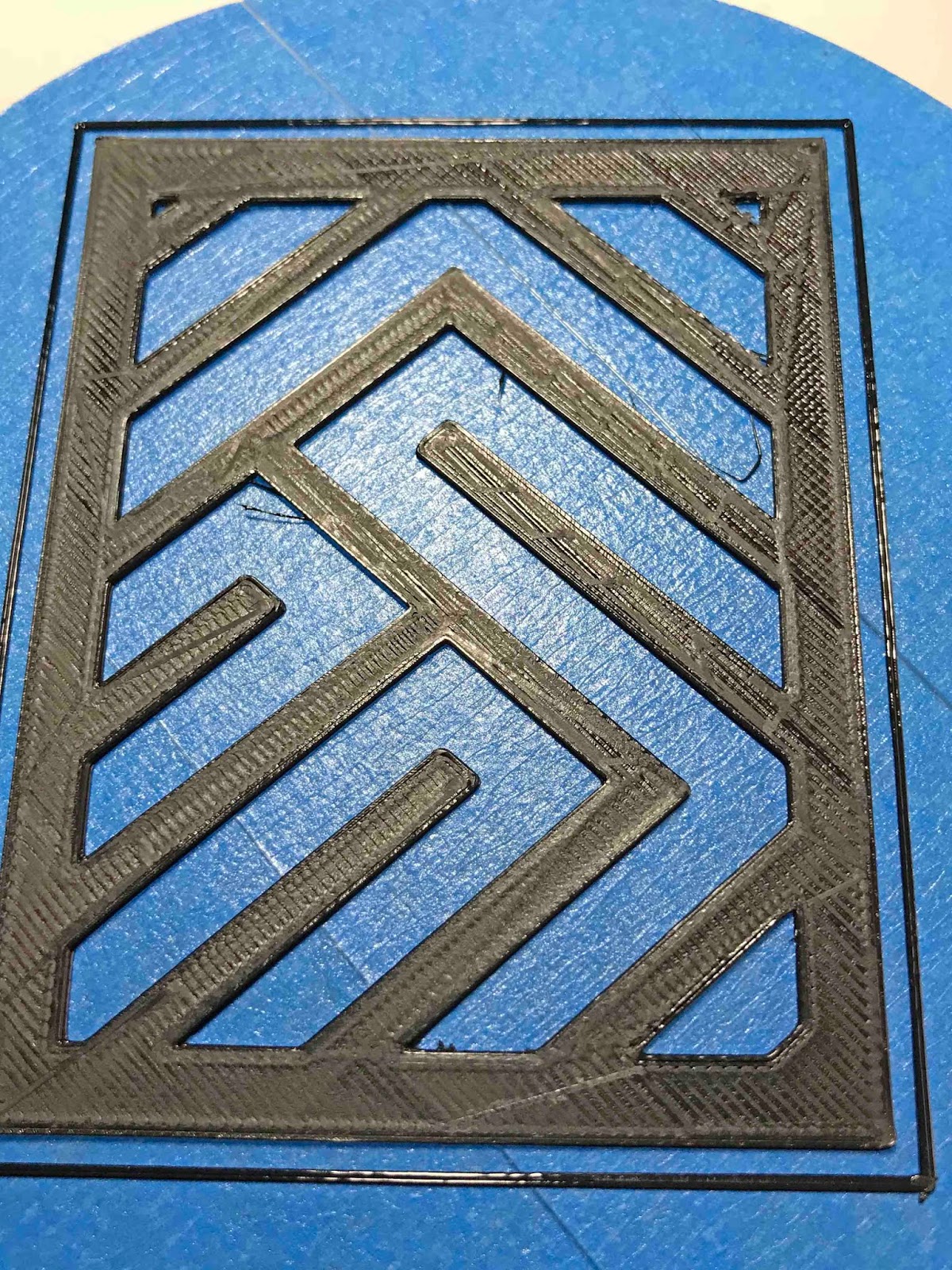

17- Your finished design can now be used as a stencil with paint or spray. You can also use these stencils through a manual die cutting machine to dry emboss patterns.
