How to Create a Basic Pencil Holder in Silhouette Alta

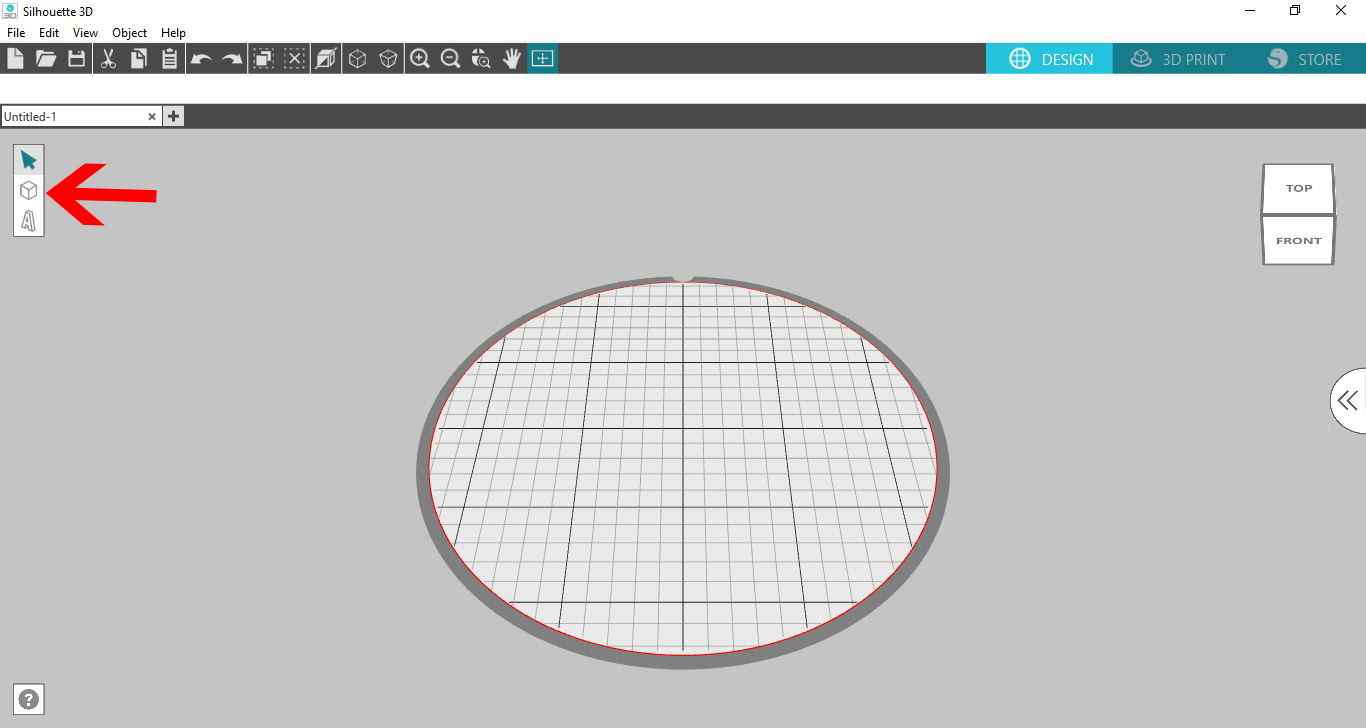

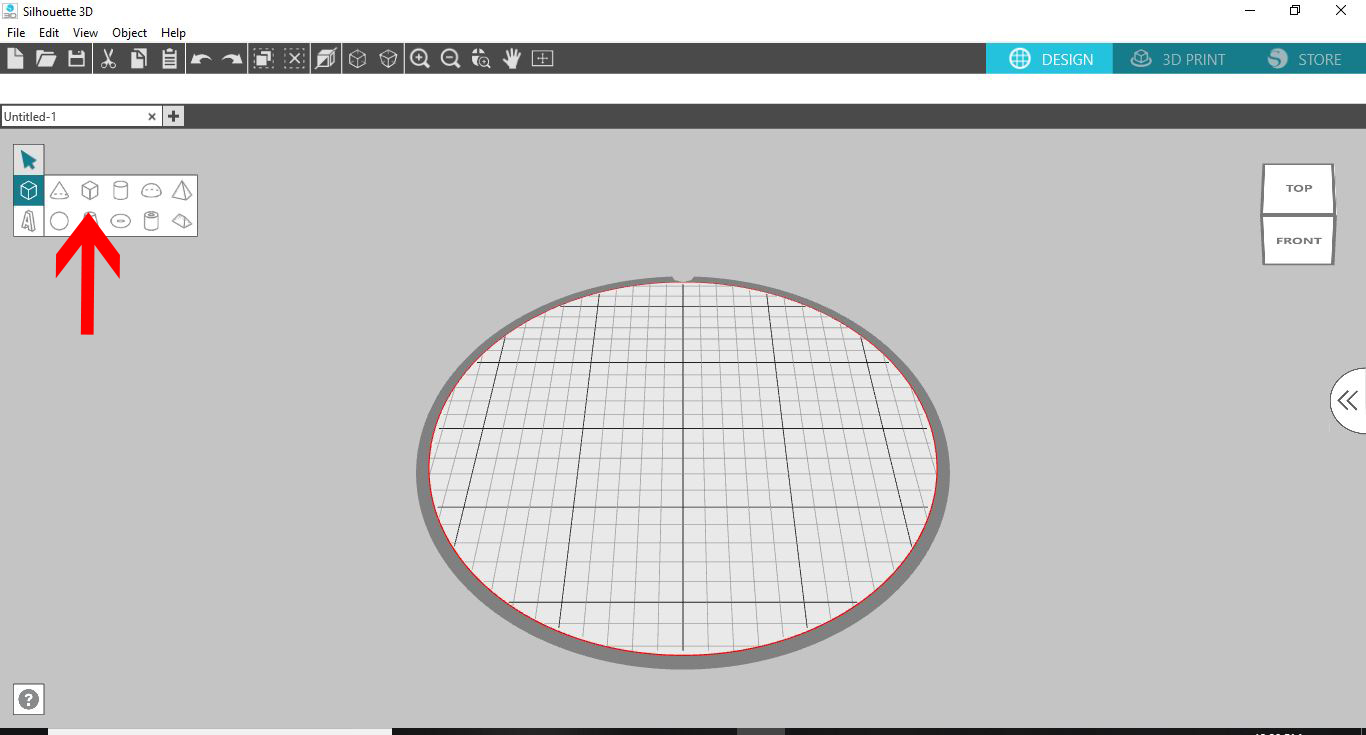

1- Open Silhouette Alta software. Click on the shape icon.

2- Select the cube shape.

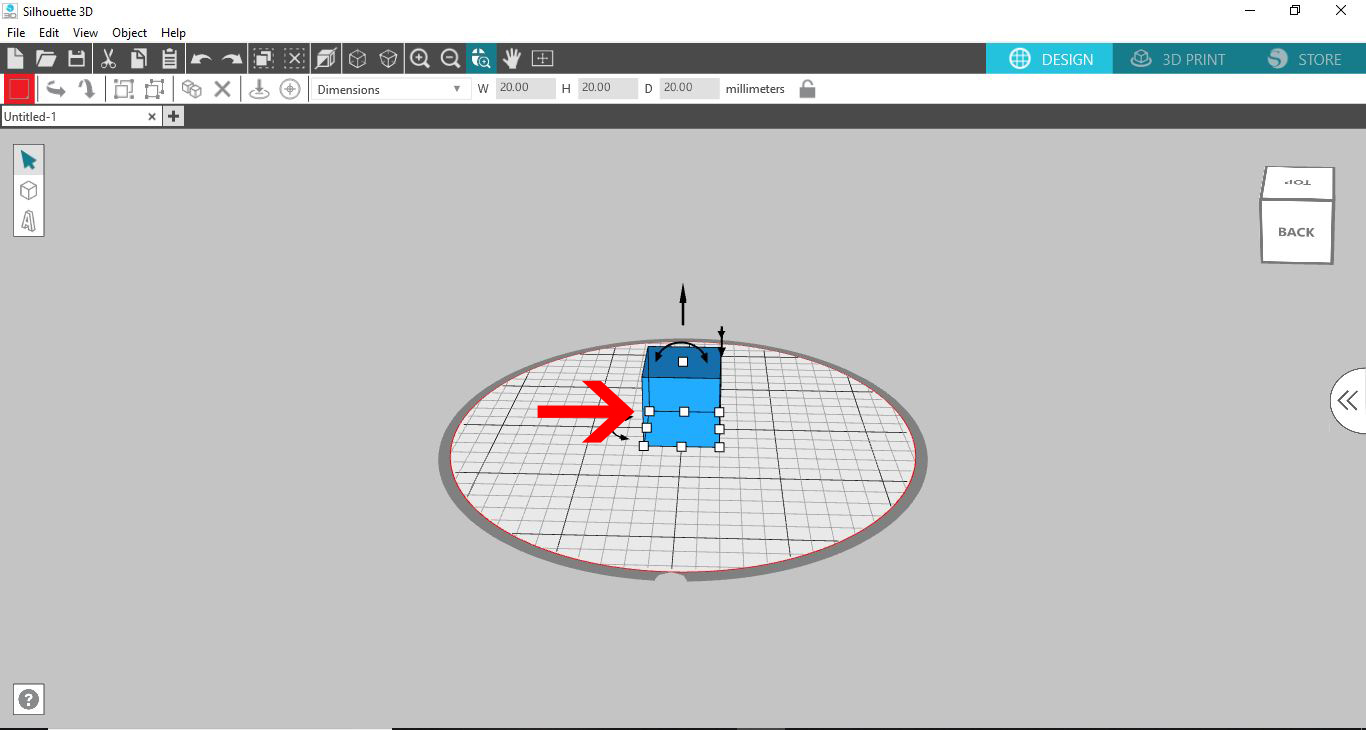

3- Select the cube.

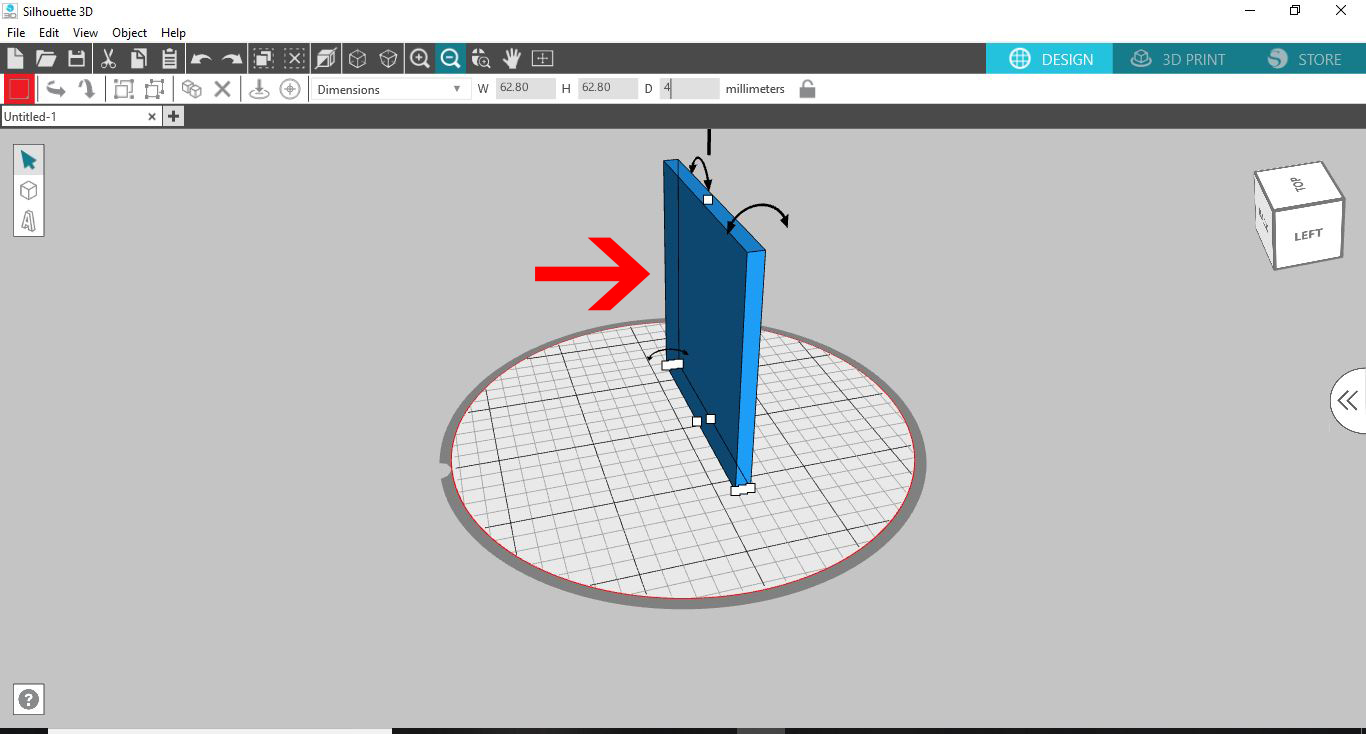

4- Adjust the size of the cube and the thickness to make a thin wall.

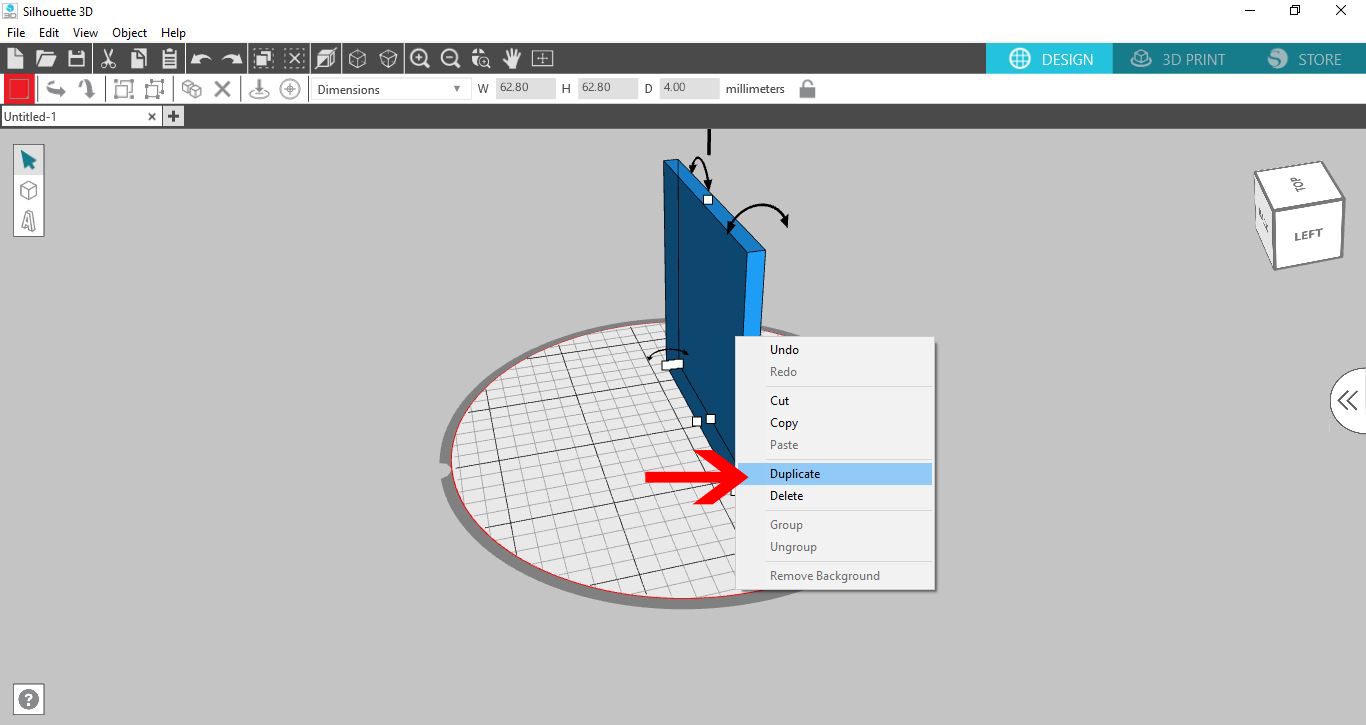

5- Select the wall and right click. Duplicate.

6- Duplicate 3 more times. Select one of the walls.

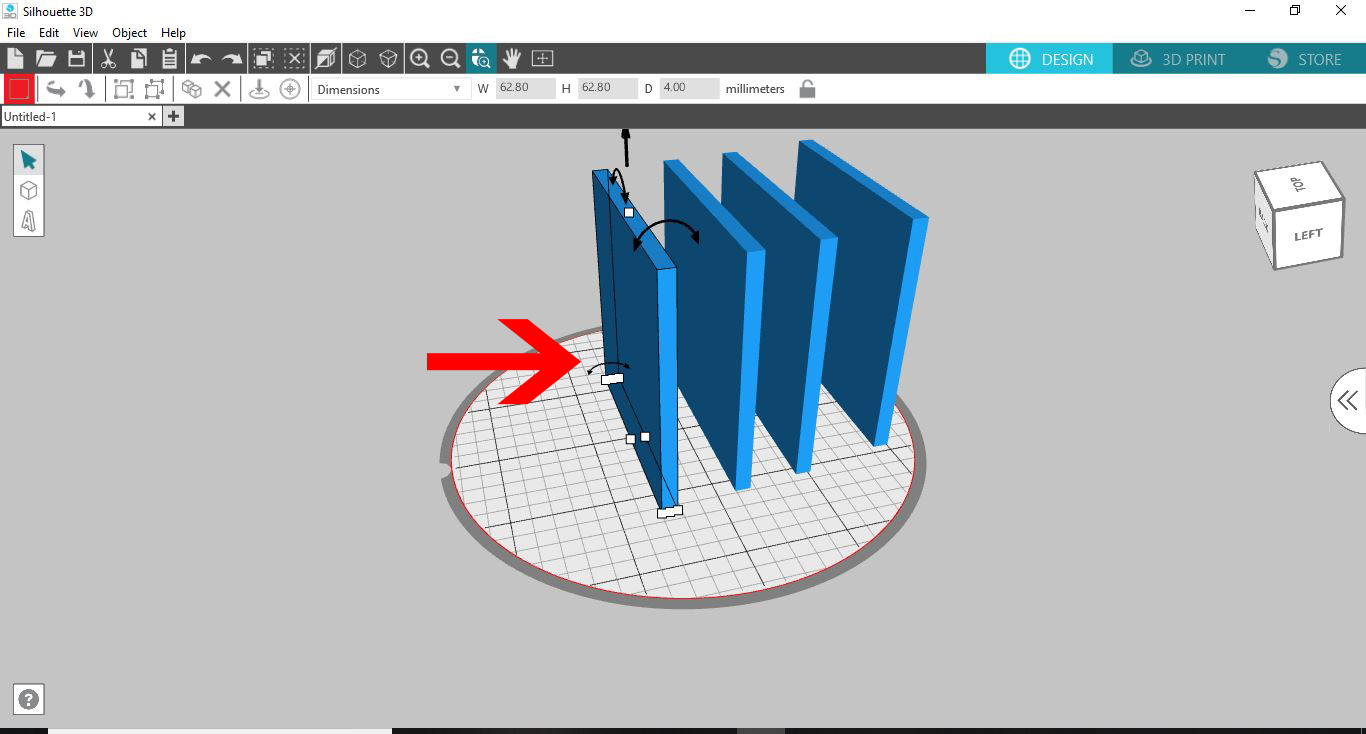

7- Move each wall to create a rectangle. Make sure each one is flush on the corners.

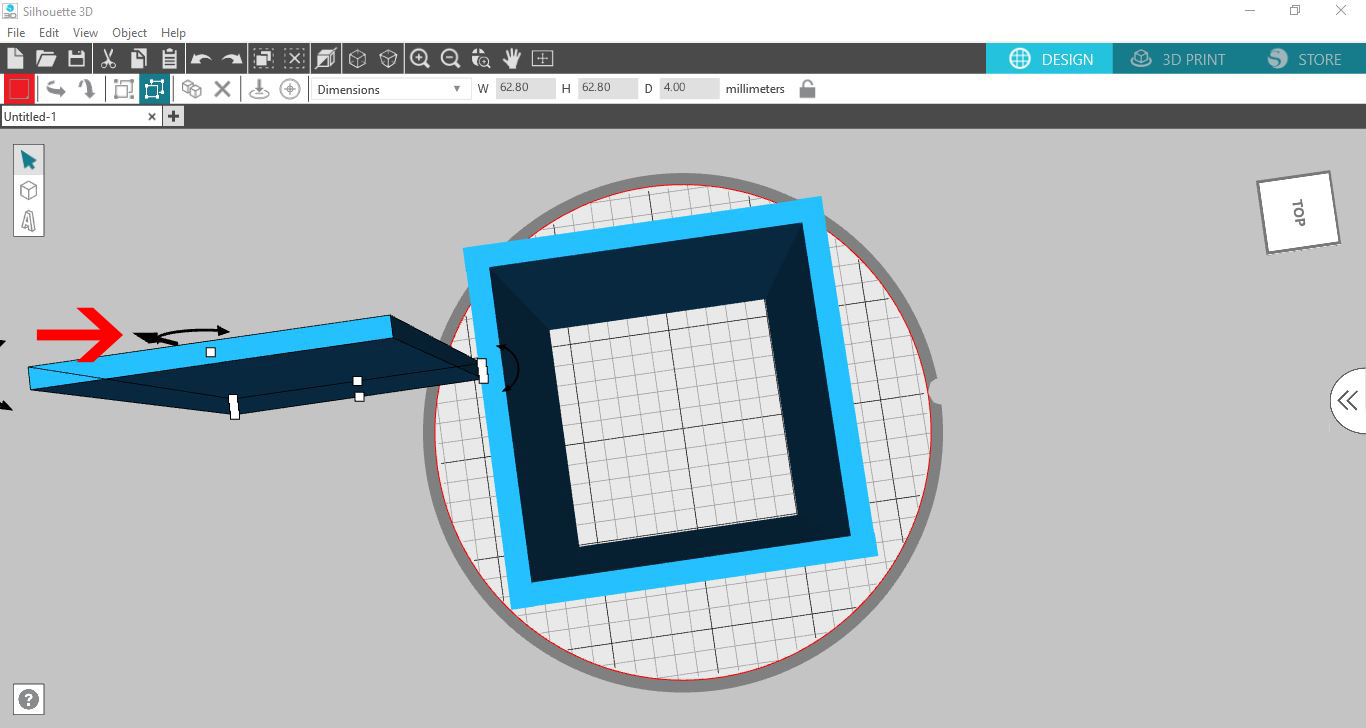

8- Duplicate one of the walls.

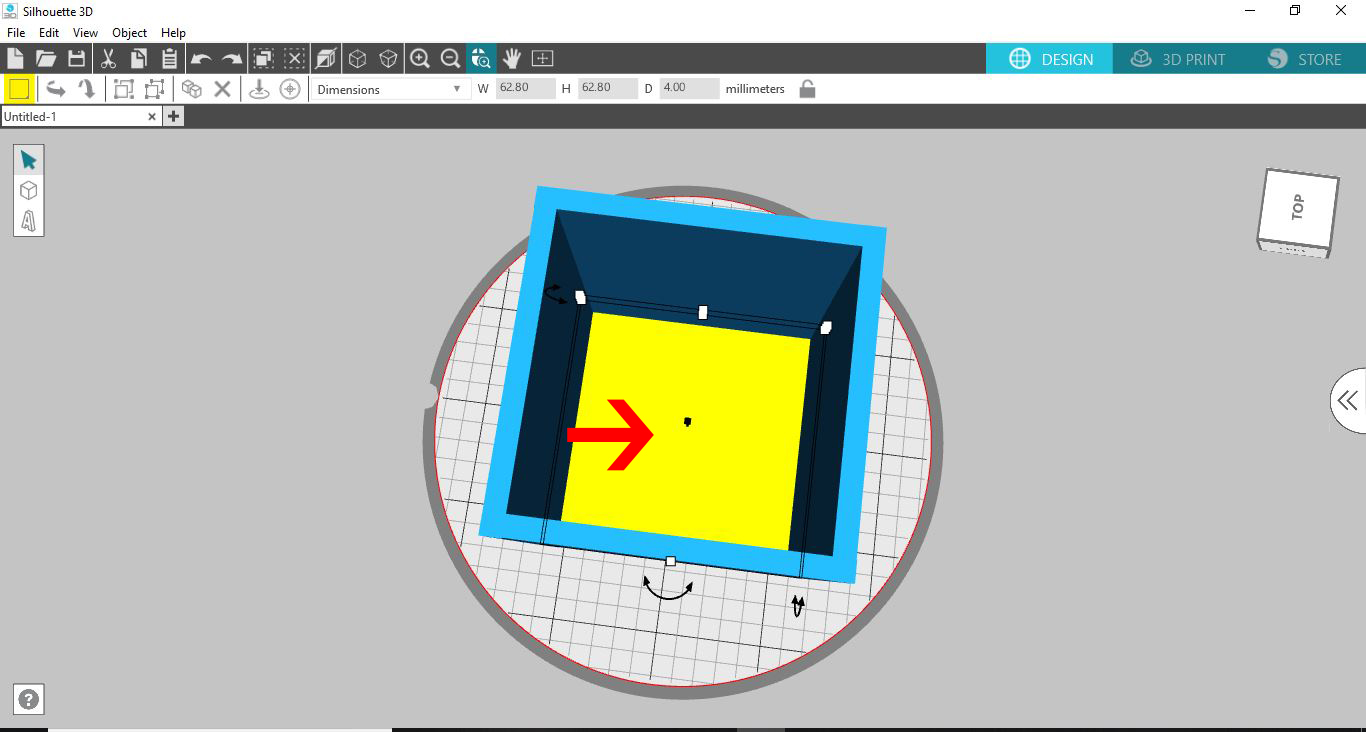

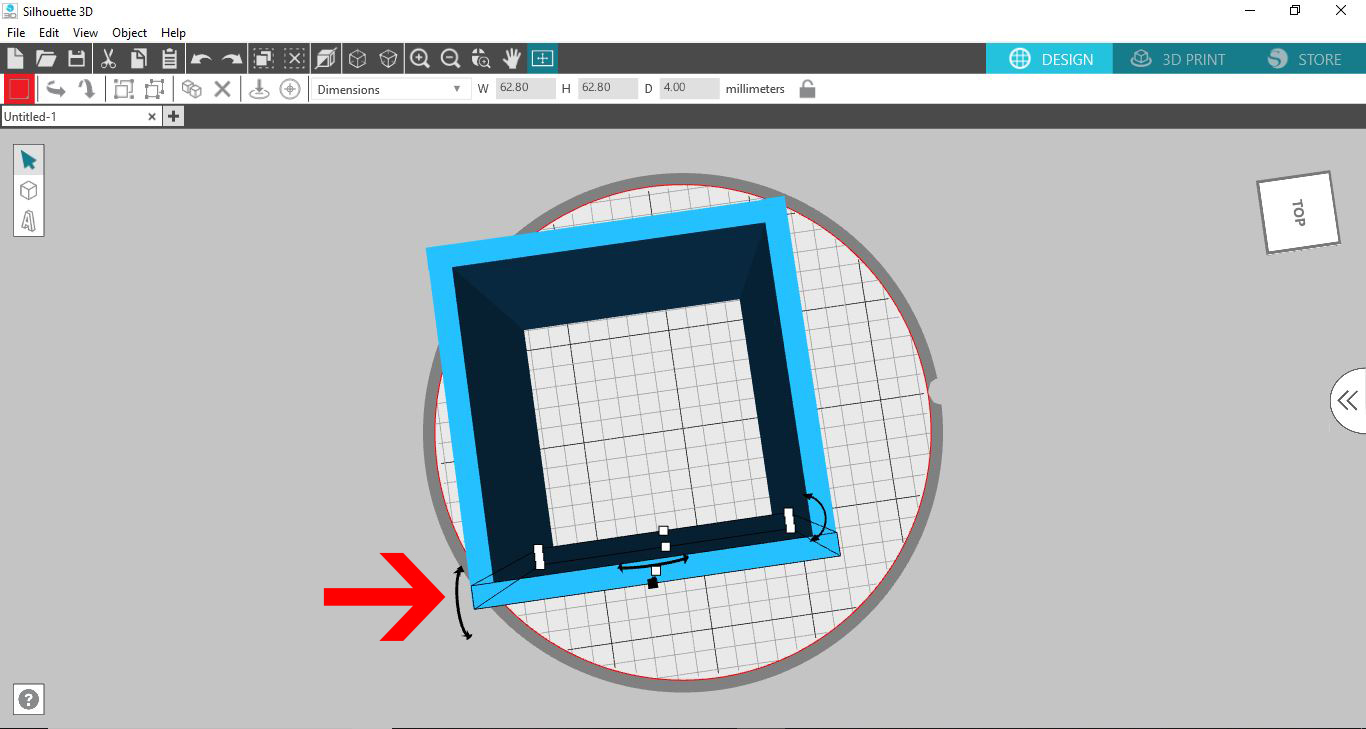

9- Rotate the wall so it is flat to create the base of the pencil holder. Line it up under the walls.

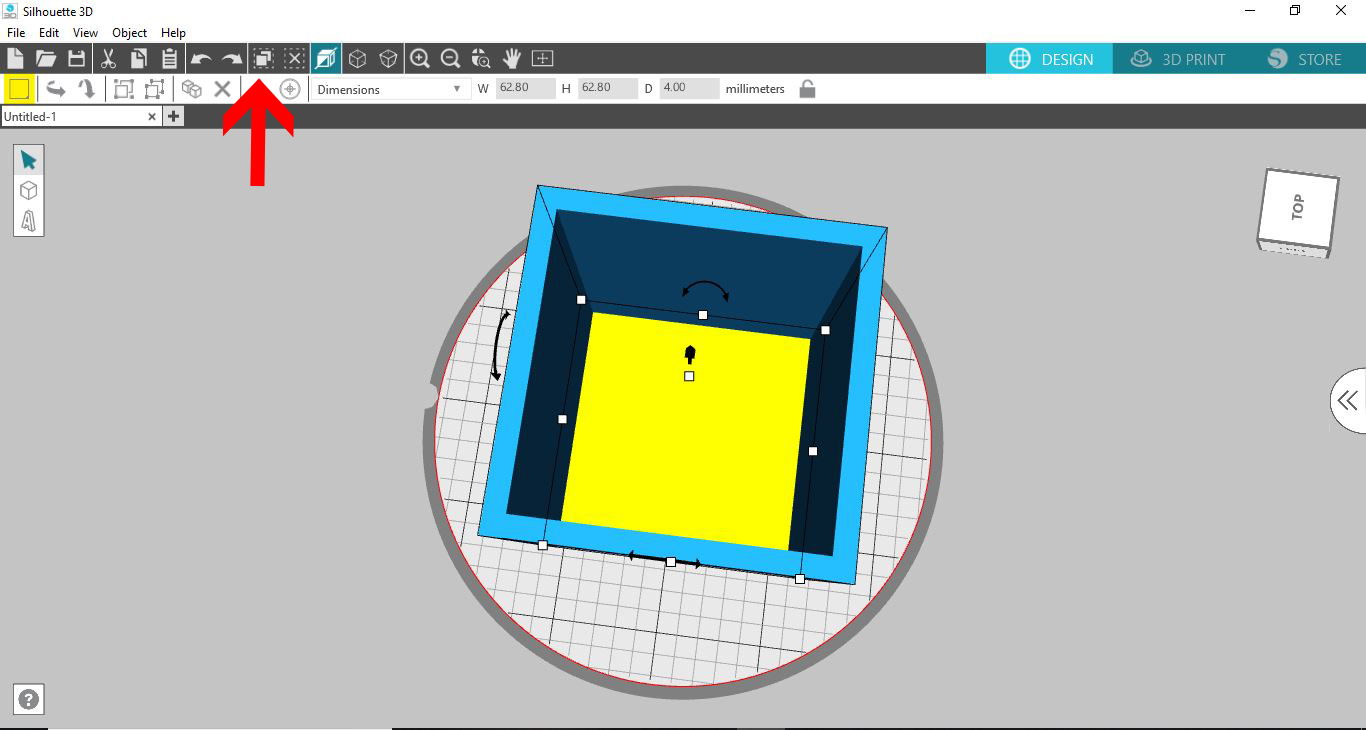

10- Click on the select all icon.

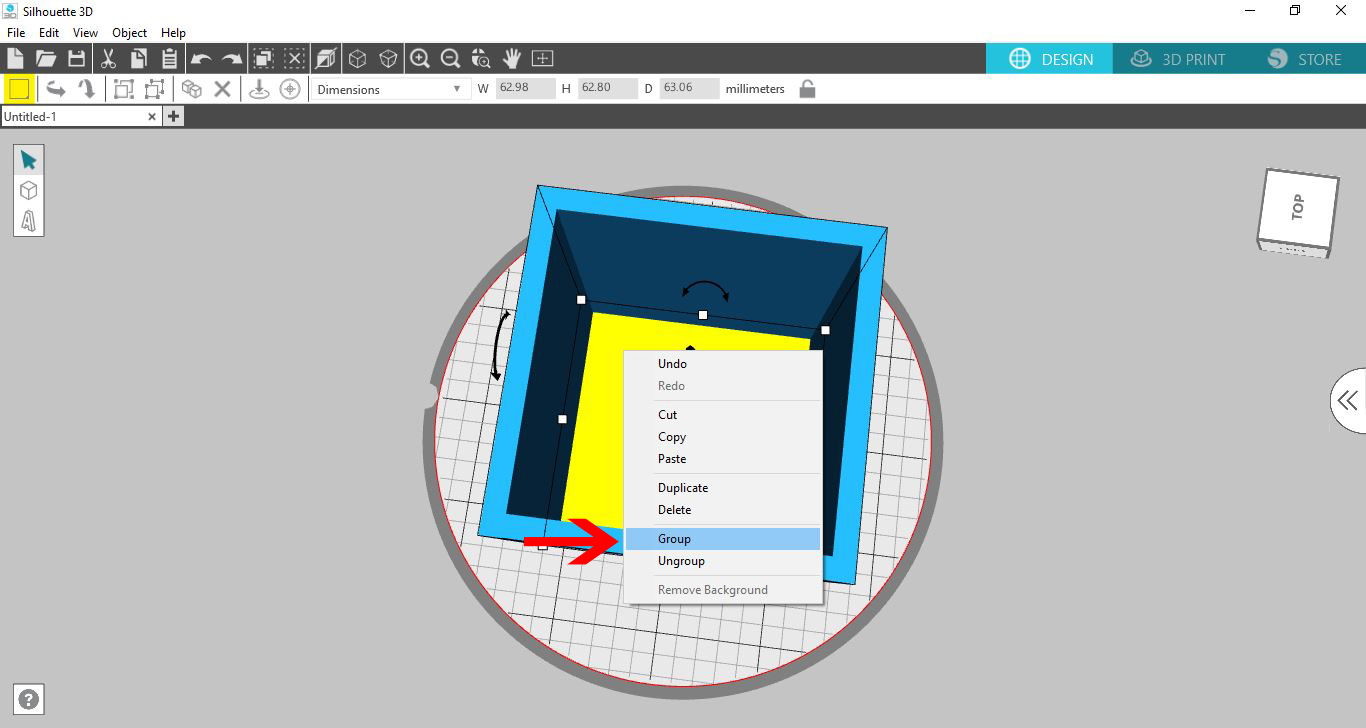

11- Right click and group the walls and base.

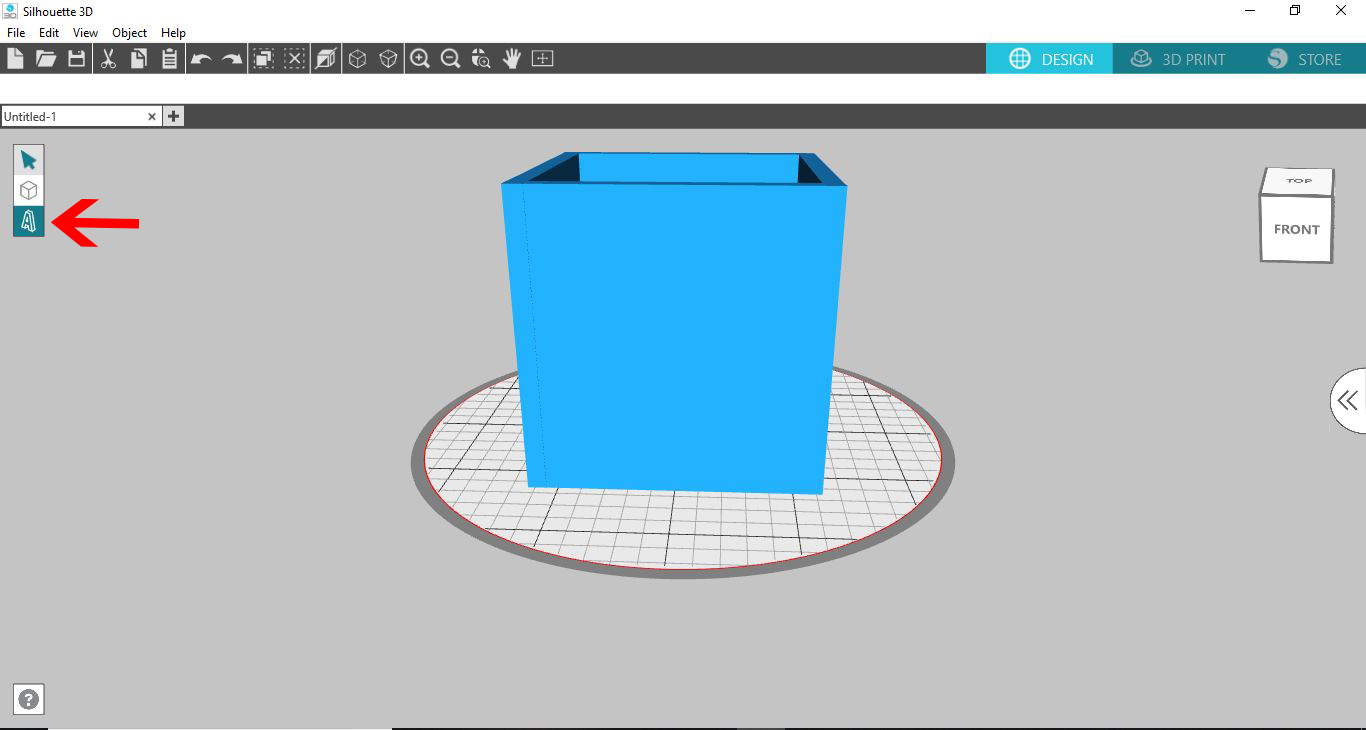

12- Select the text icon to personalize the pencil holder.

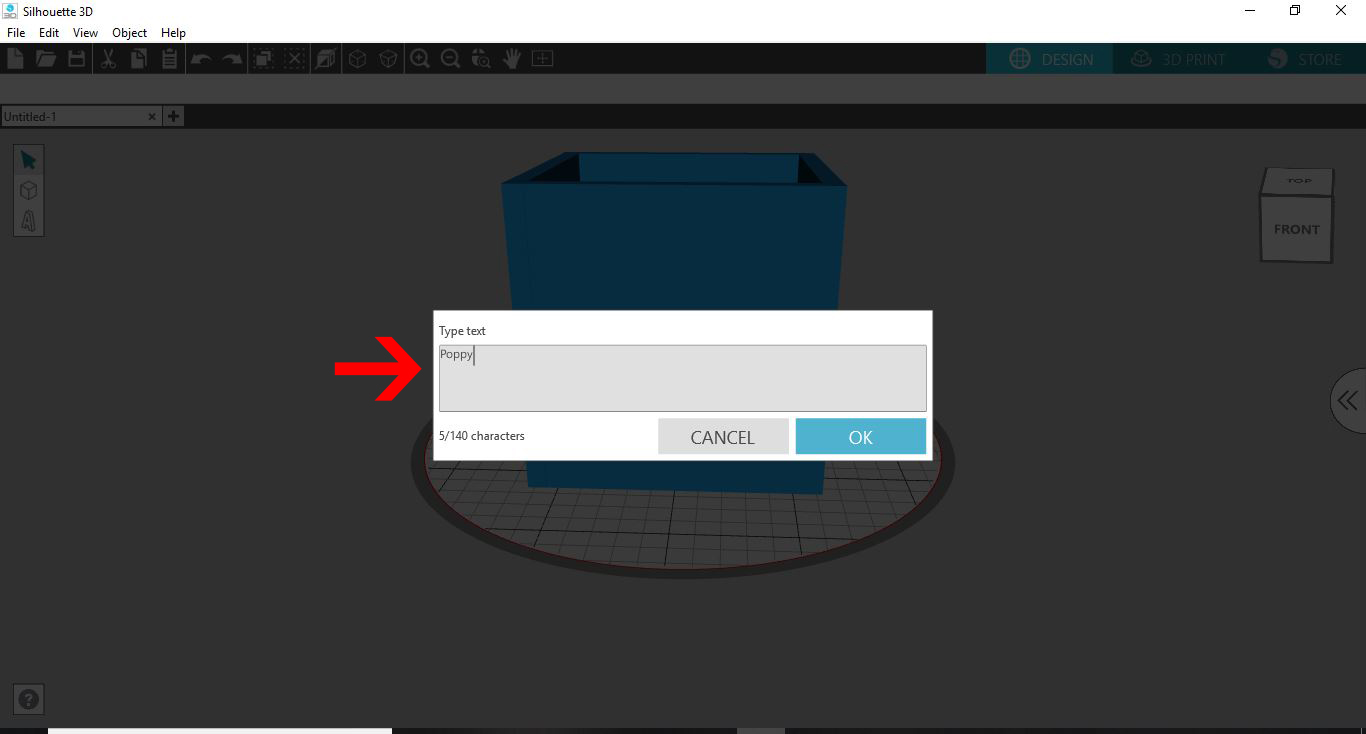

13- Type your text.

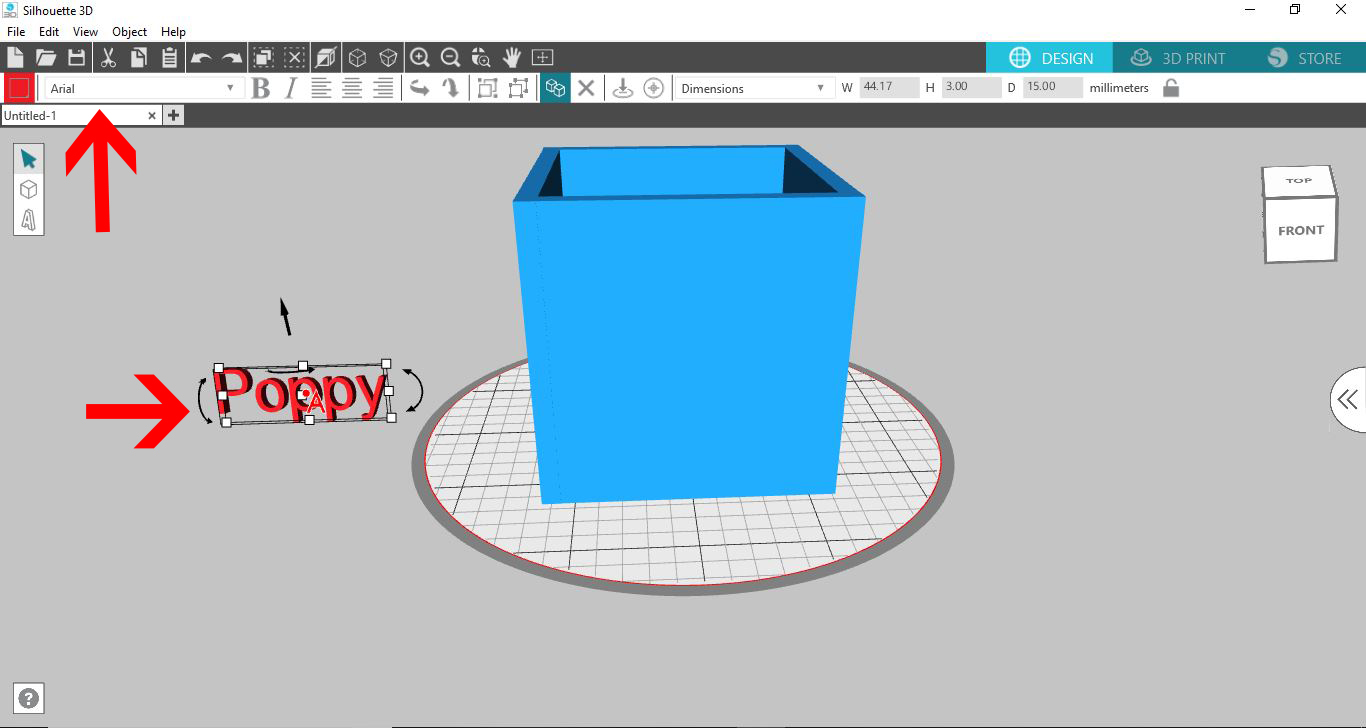

14- Select the text and select your font. I am selecting the font Garlic Butter by Missy Meyer Fonts.

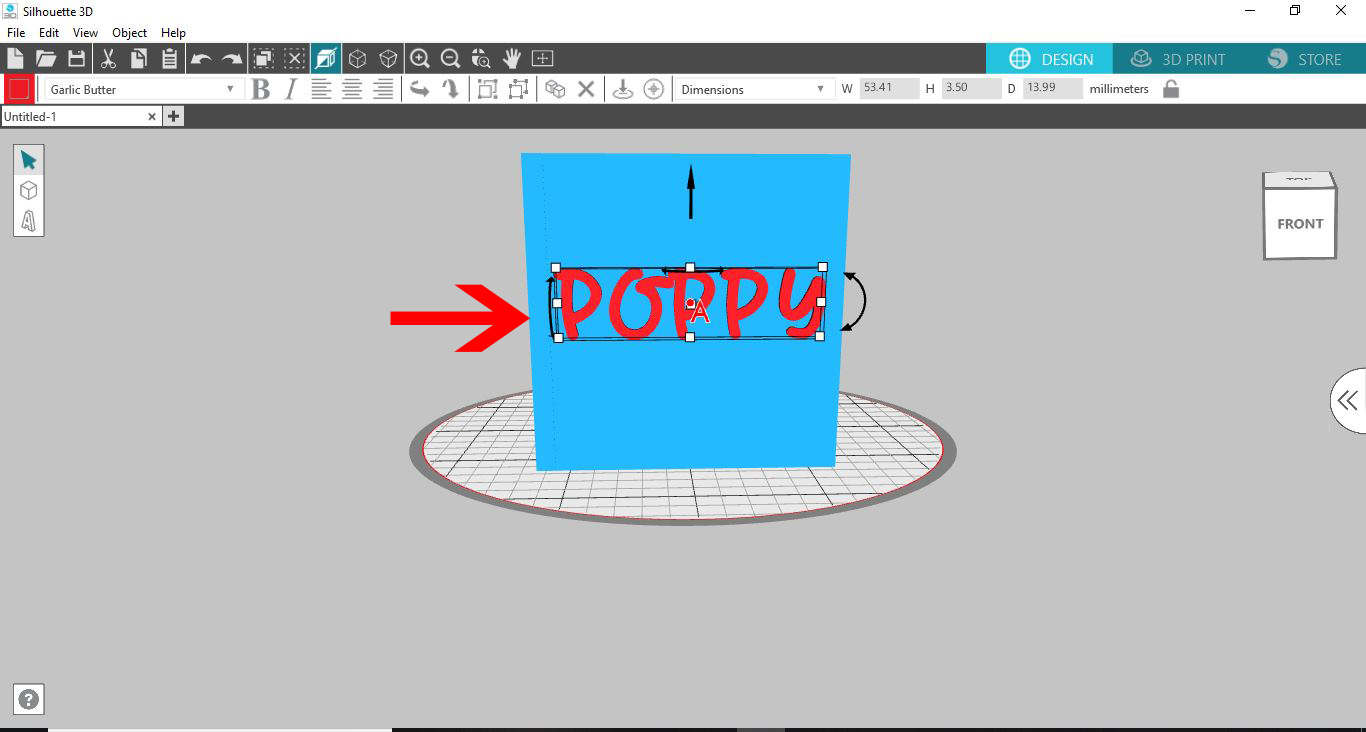

15- Move your text so it is attached to your pencil holder.

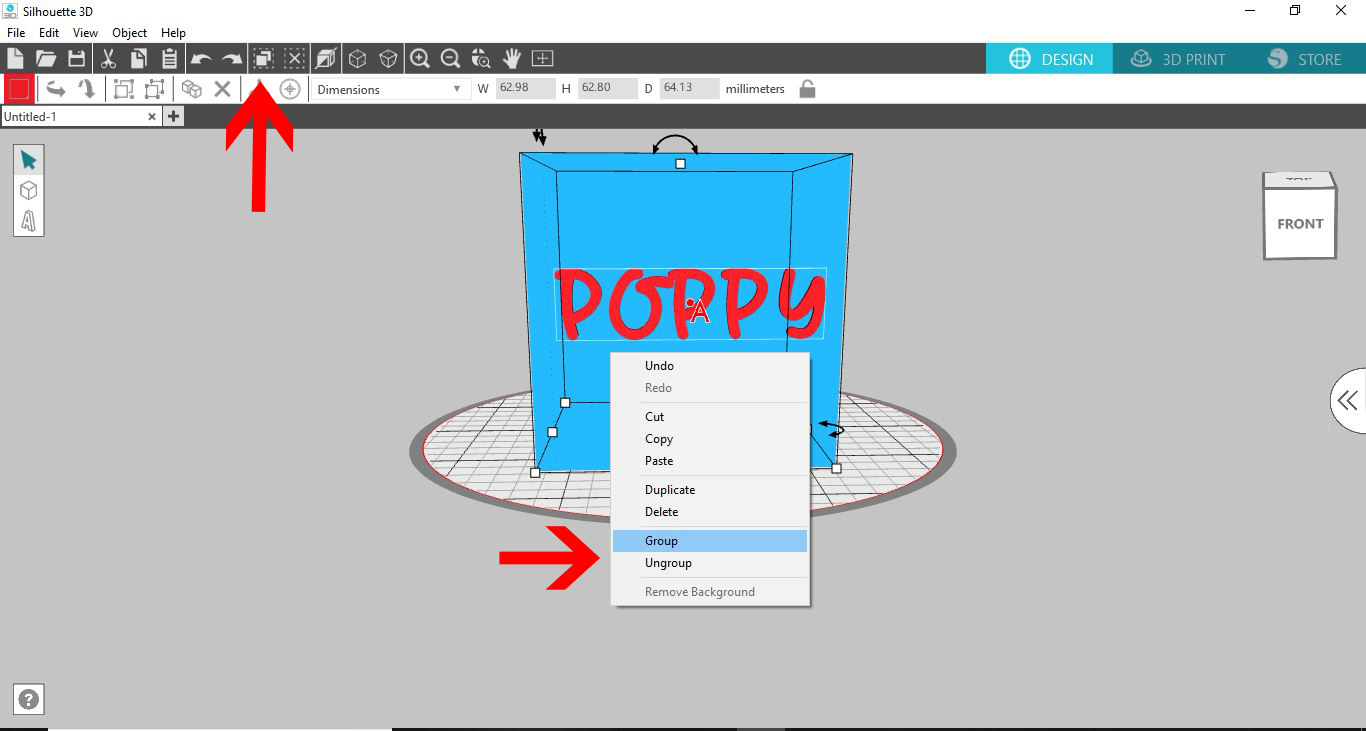

16- Click the select all icon then right-click and group.

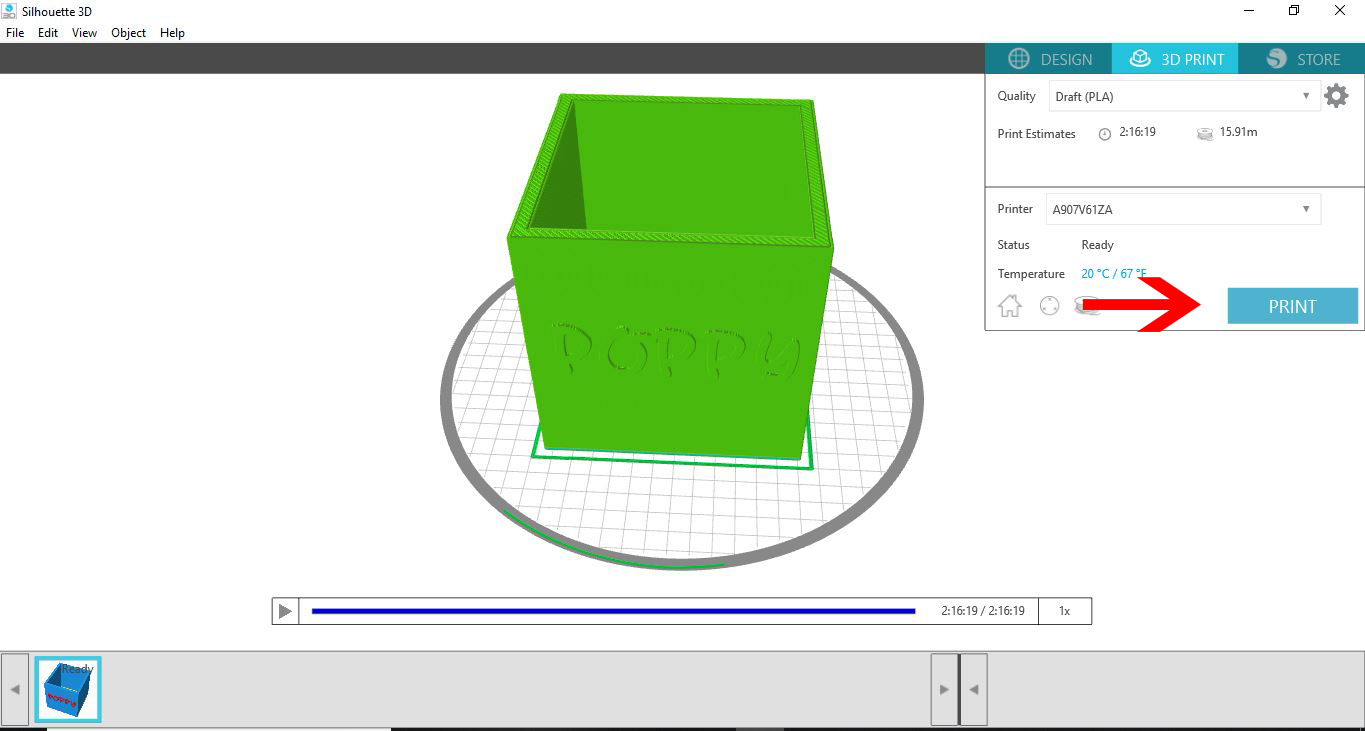

17- Click on the 3D print icon then adjust your print settings and click print.
