Creating interlinked letters in brother scan and cut canvas workspace
2- Type your letters you want to interlink. Make sure you type each one separate.

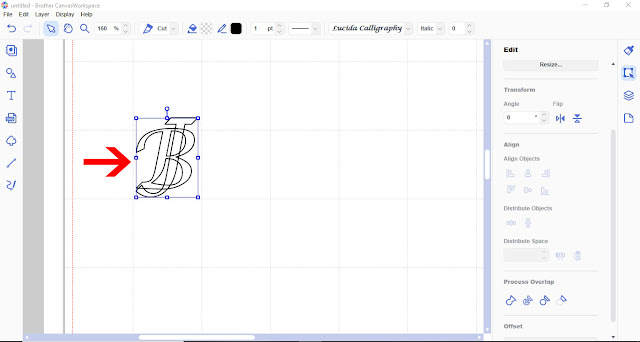

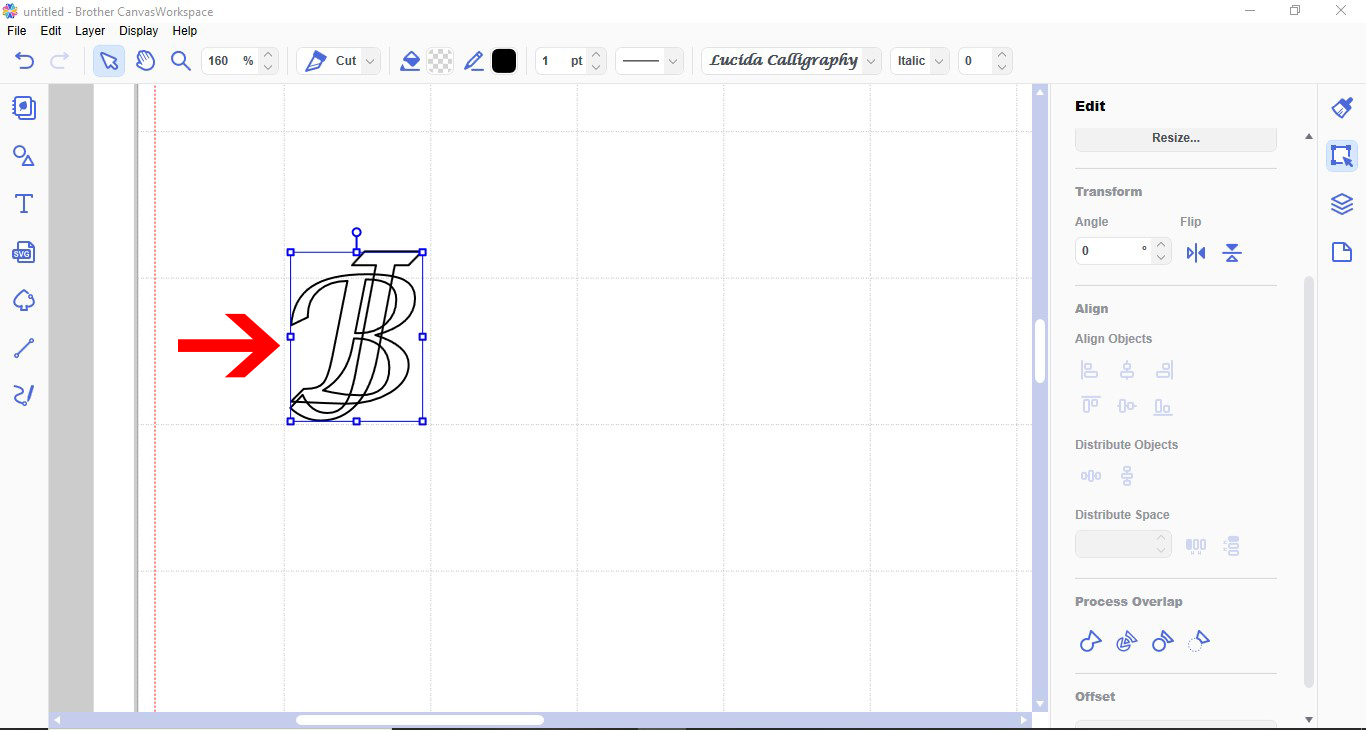

3- Change font to the one needed. Layer each letter on top of each other where you would like them to interlink.

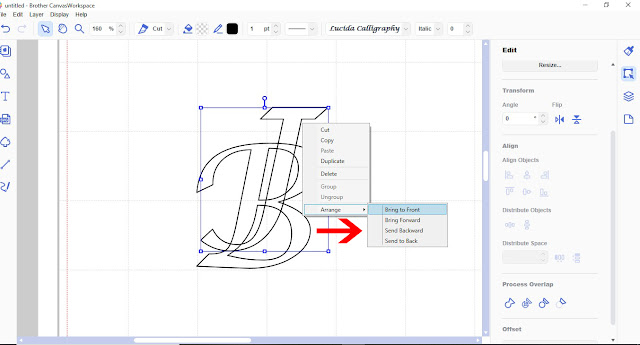

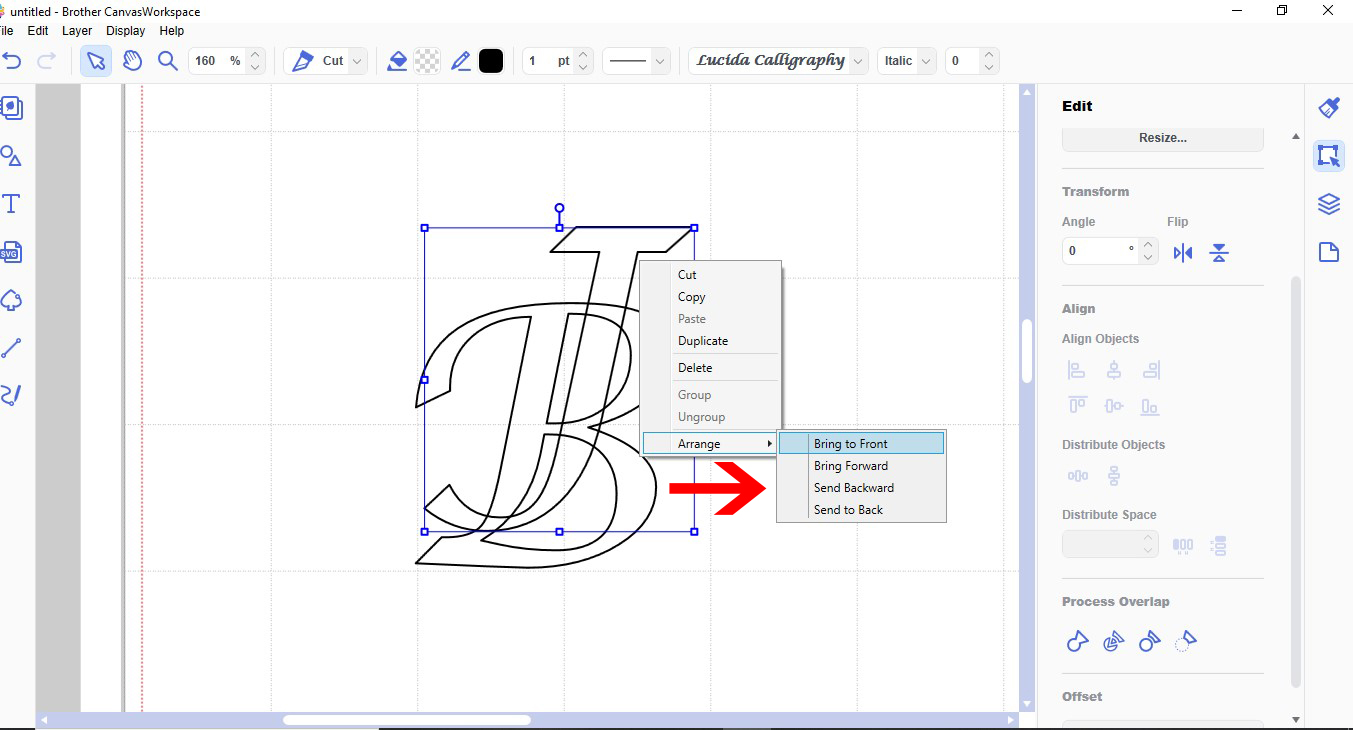

4- Select one of your letters, right click and bring to front. Make sure you have one sent to front and one to back.

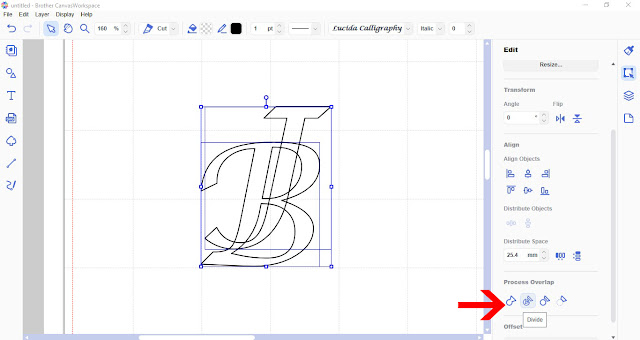

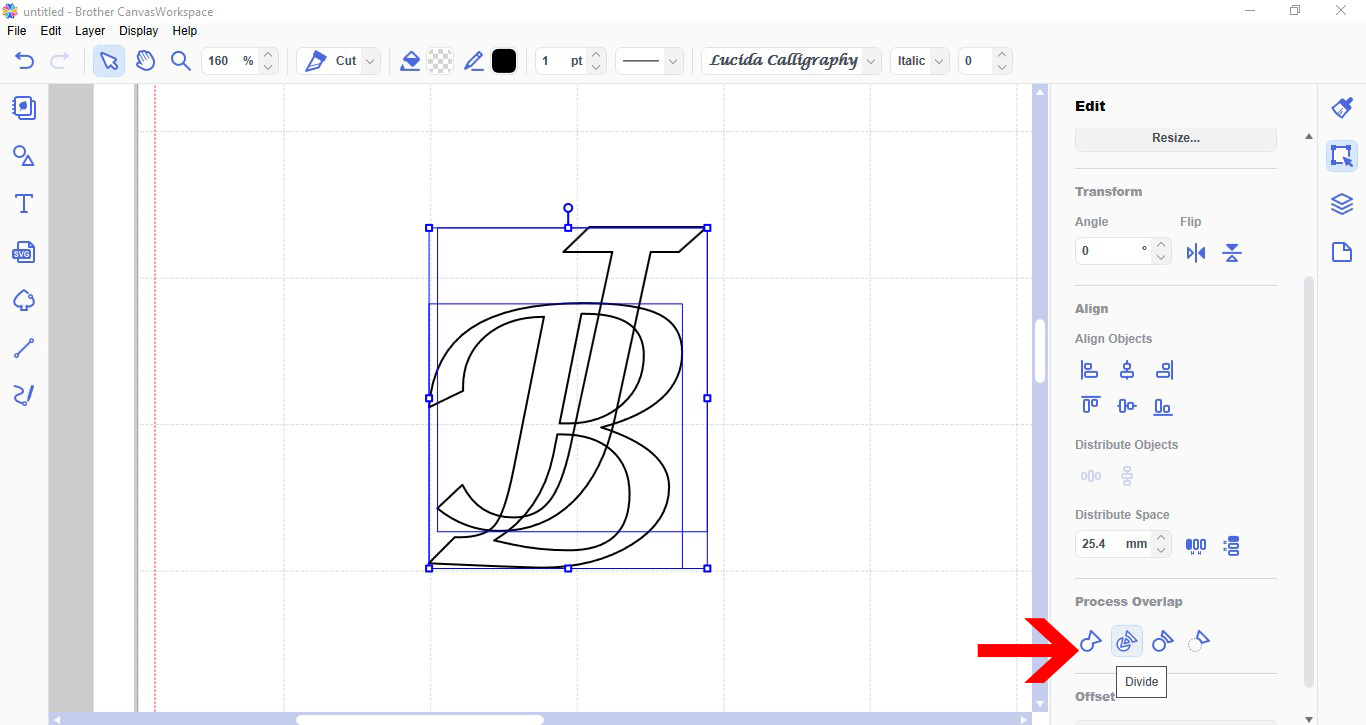

5- Select both letters and go to process overlap, click divide.

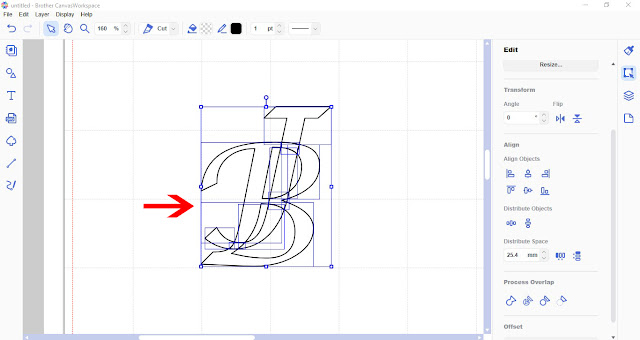

6- As you can see every intersecting part of the letters has been divided.

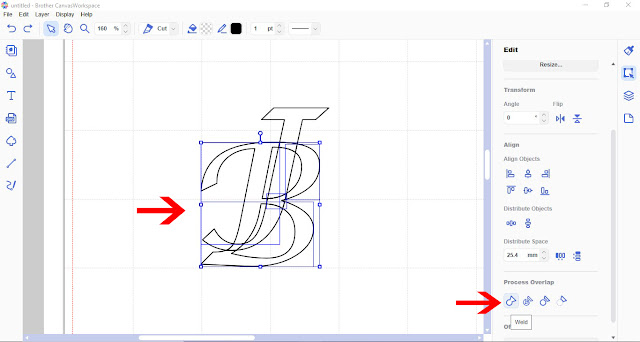

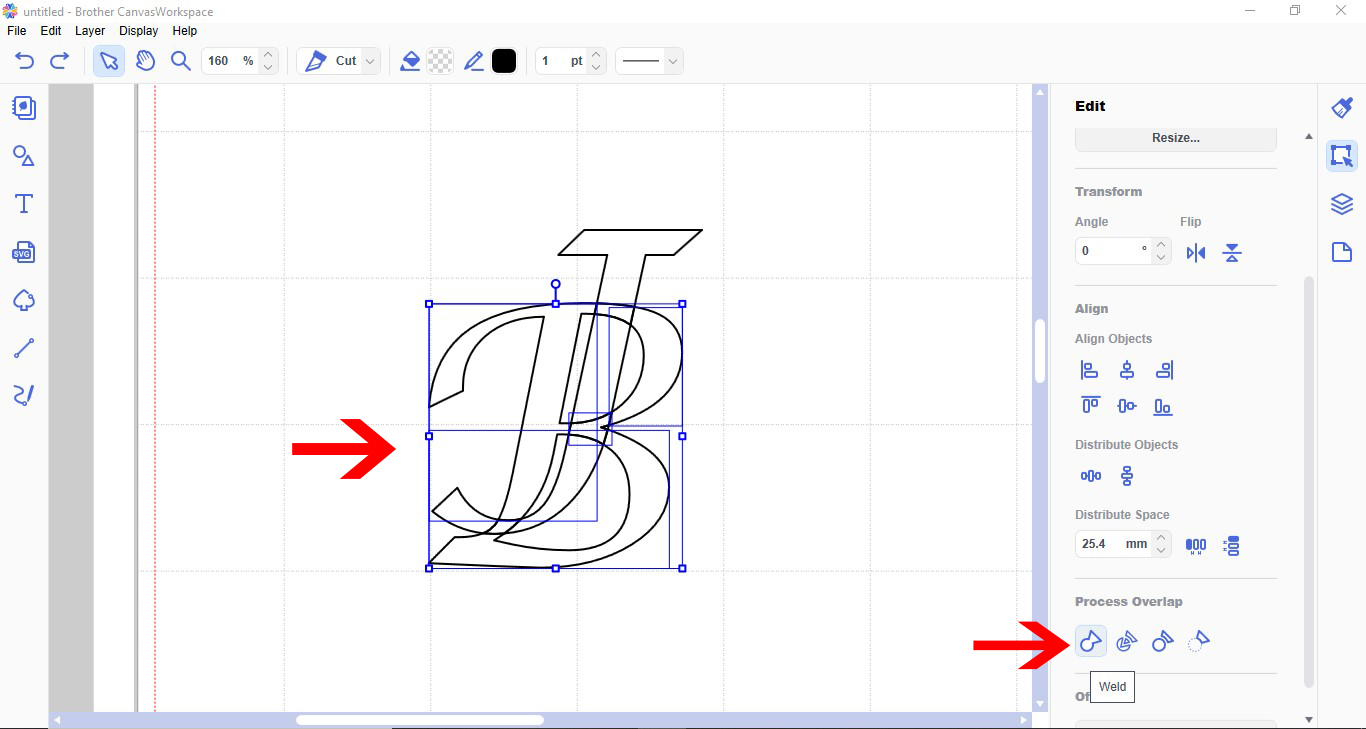

7- Select parts of the letters you want to appear at the front. Weld.

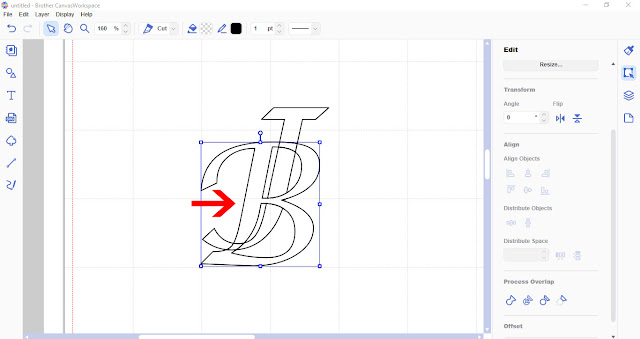

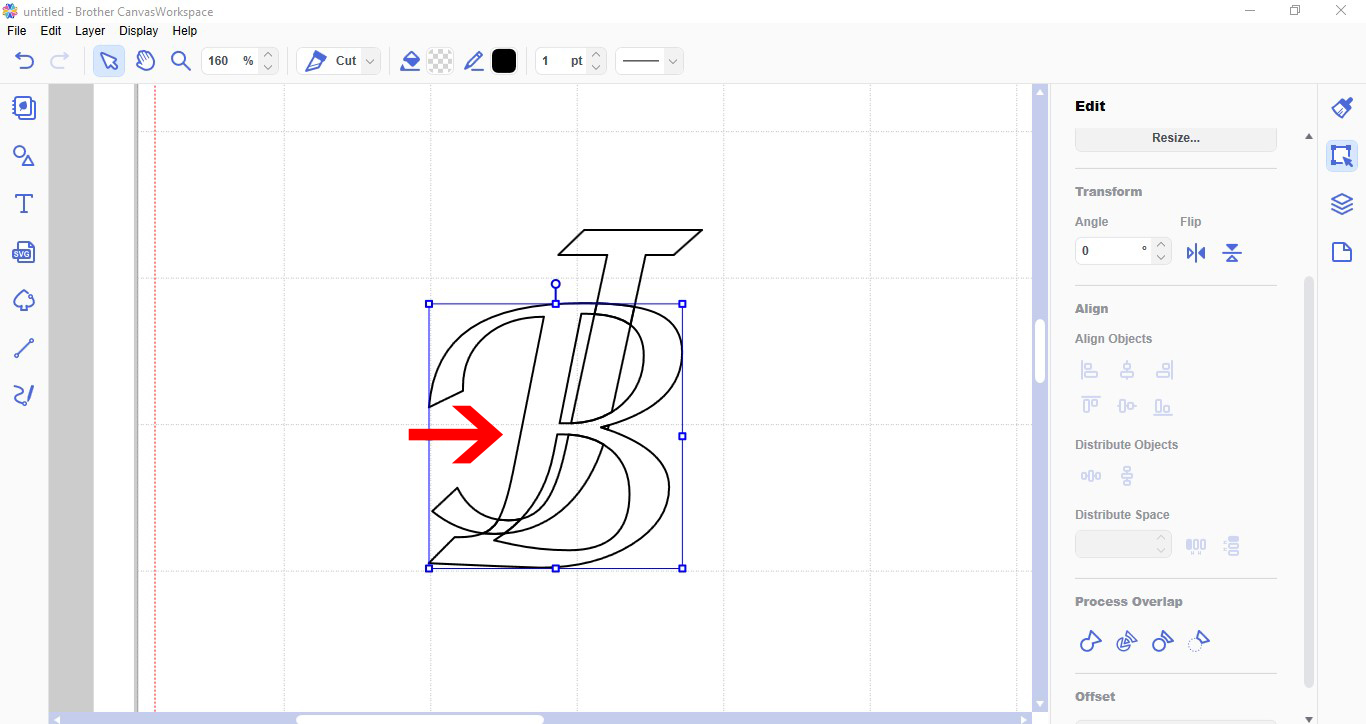

8- The letter B now looks like it is in the front.

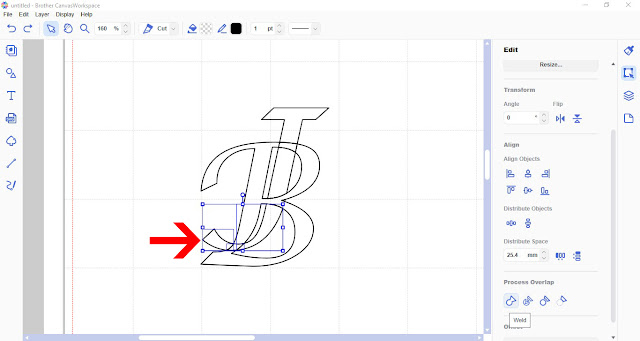

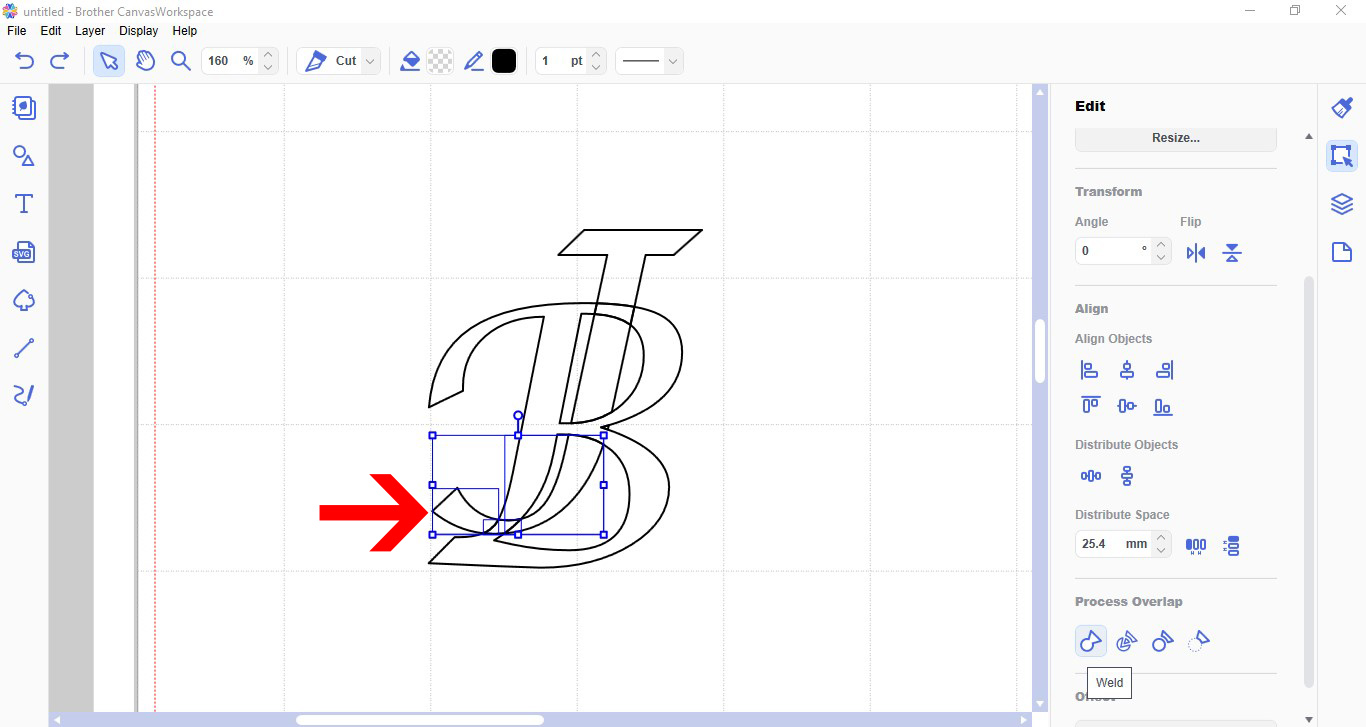

9- Select the next sections you want to look like are passing through the B. Weld.

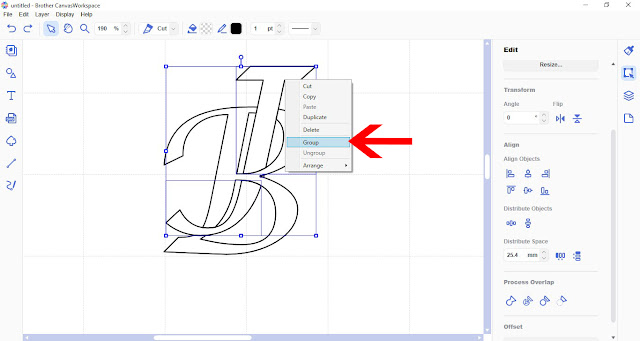

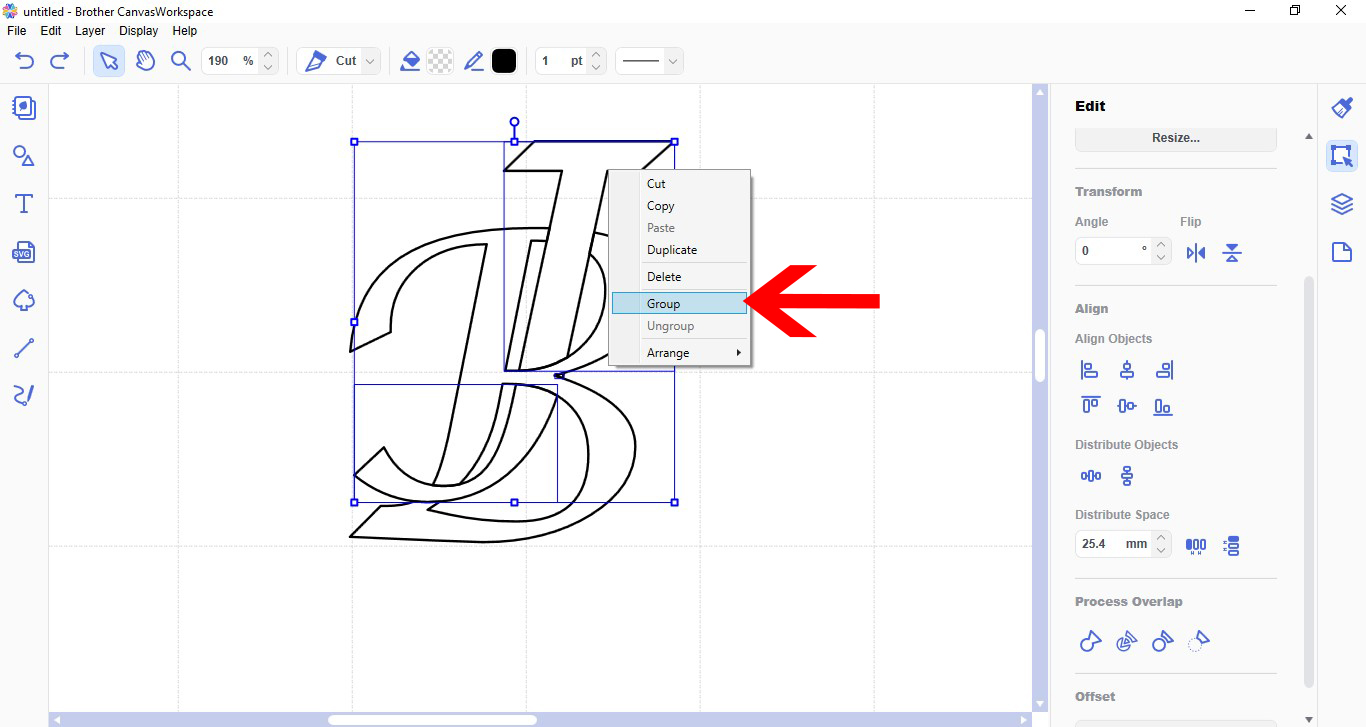

10- The parts of your letter now appear interlinked. Select all the parts of one letter. Right click and group.

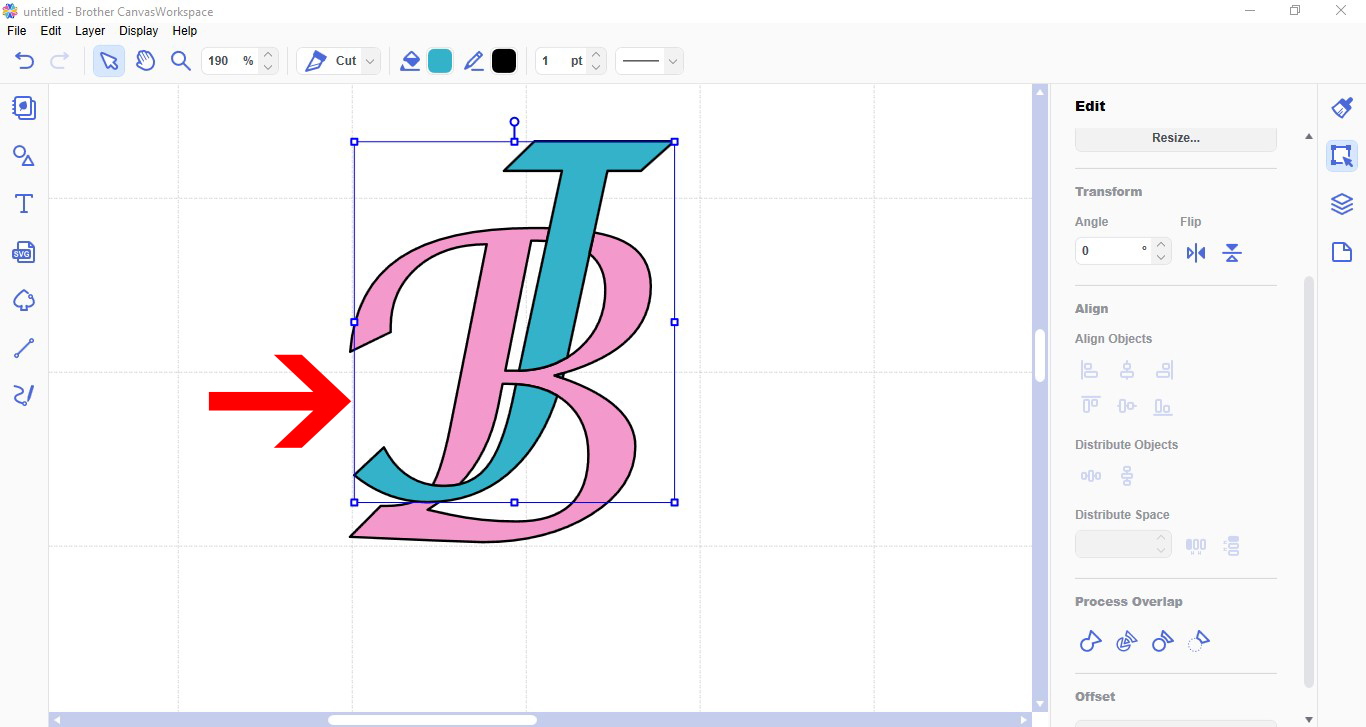

11- With the letter parts grouped. colour the individual letters.

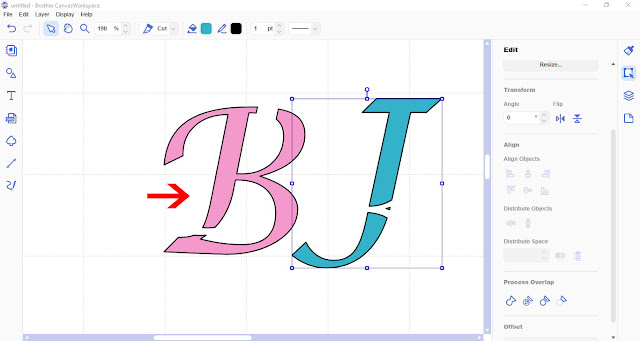

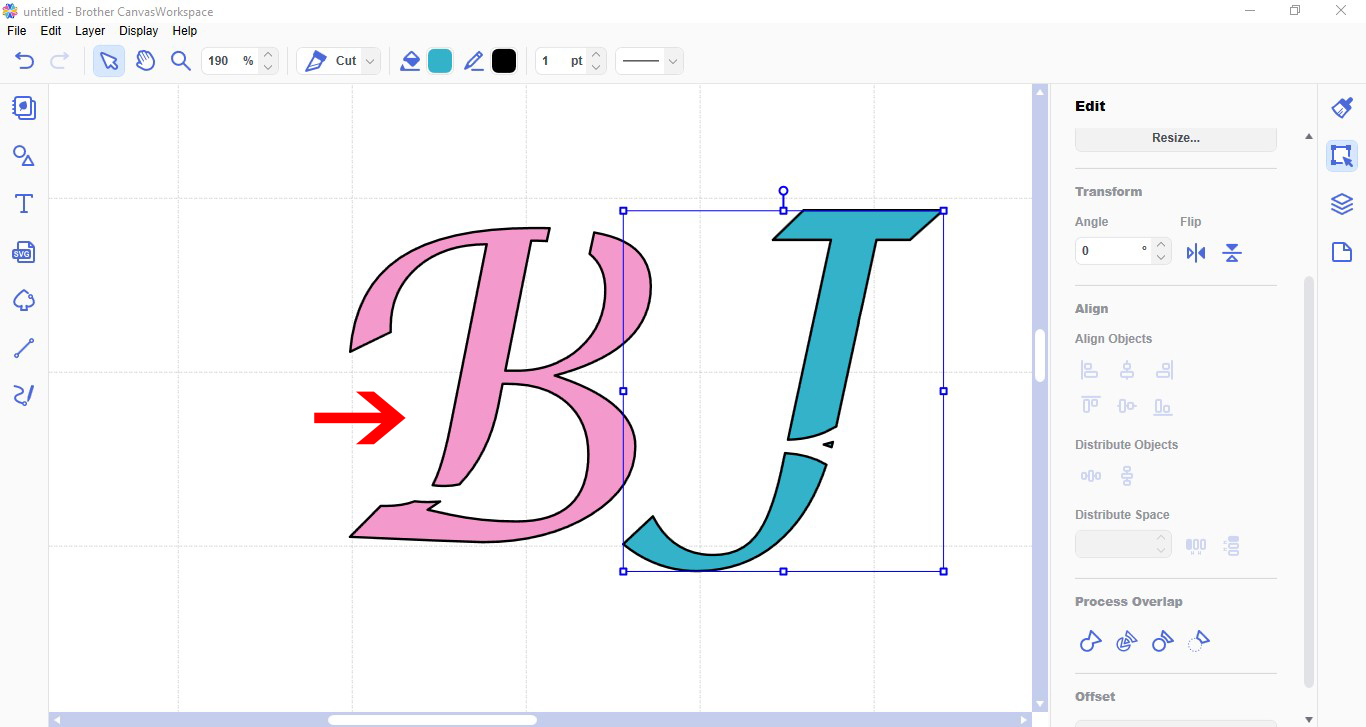

12- When you separate the two letters. As you can see they will cut in parts. They can be adhered together to appear interlinked.
