How to Create an Offset Stroke in DesignScape
  • By Kia Lor
  • 22 Nov 2021
  • 9 Mins
  • Beginner
  • DesignScape

How to Create an Offset Stroke in DesignScape

In 5 quick steps you'll learn different ways to use and create an Offset Stroke in DesignScape.

Today, we will go over how to make an offset stroke in DesignScape. You can use this technique to quickly outline your text.

DesignScape is available for Gold Plus Members only and is an excellent substitute for Photoshop and Illustrator. The program is internet-based, so it won't take up space on your hard drive. You can still use all of your fonts by easily importing them into DesignScape. We have a free 30-day trial available for the Gold Plus Membership if you're interested!

First, you’ll need to create a new document and import your font. We'll be using the Butterfly font in this tutorial, but you can check out our collection of free script fonts on Font Bundles for other fantastic font options.

Step 1 - Add Text Using the Type Tool

Click on the Type Tool (T) in the left toolbar, and select your font from the top toolbar or the Character panel. Click on the canvas and type out your desired text.

How to Create an Offset Stroke in DesignScape 15

Step 2 - Duplicate Text Layer

You can apply a stroke directly to the first text layer if you want, but we will be duplicating the text layer to keep the stroke layer and the text layer separate. In the Layers panel, right-click on the text layer and click Duplicate Layer.

How to Create an Offset Stroke in DesignScape 2

Step 3 - Open the Stroke Properties in the Layer Style Dialog

With the duplicate text layer selected, click on the eff button at the bottom right and select Stroke.

How to Create an Offset Stroke in DesignScape 2

Step 4 - Edit the Stroke Properties

The Layer Style dialog will open with the Stroke tab selected. Here you can change the stroke size, position, blend mode, opacity, and fill type.

How to Create an Offset Stroke in DesignScape 3

Change the Stroke Size

The stroke size affects the stroke thickness.

How to Create an Offset Stroke in DesignScape 4

Change the Stroke Position

The stroke position affects where the stroke is placed based on the outline path of the text itself.

  • Inside - places the stroke inside the outline path.
  • Center - places the stroke with its center running along the outline path.
  • Outside - places the stroke outside the outline path.

How to Create an Offset Stroke in DesignScape 5

Change the Stroke Blend Mode

Blend mode affects how the colors of the stroke interact with the colors under it. There are several different blend mode options. See the following image for a comparison of how the stroke color interacts with the white and purple colors below using the Darken, Normal, and Difference blend modes.

How to Create an Offset Stroke in DesignScape 16

Change the Stroke Opacity

The stroke opacity affects how transparent the stroke is. The following image shows how much the purple brush shape and the white background show through the stroke depending on the opacity.

How to Create an Offset Stroke in DesignScape 15

Change the Stroke Fill Type

The fill type options are Color, Gradient, and Pattern.

Color

When using the Color option, the stroke is simply a solid color. Tap the color box below Fill Type to change the color.

How to Create an Offset Stroke in DesignScape 9

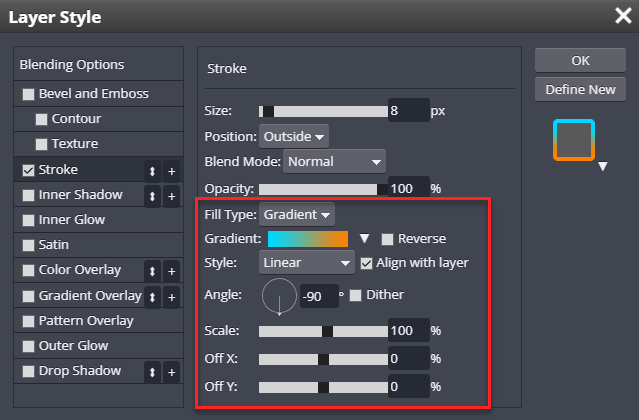

Gradient

This option fills the stroke with a gradient, and there are several properties you can play around with to achieve the look you want.

How to Create an Offset Stroke in DesignScape 7

The following is an example of a stroke filled with a gradient.How to Create an Offset Stroke in DesignScape 10

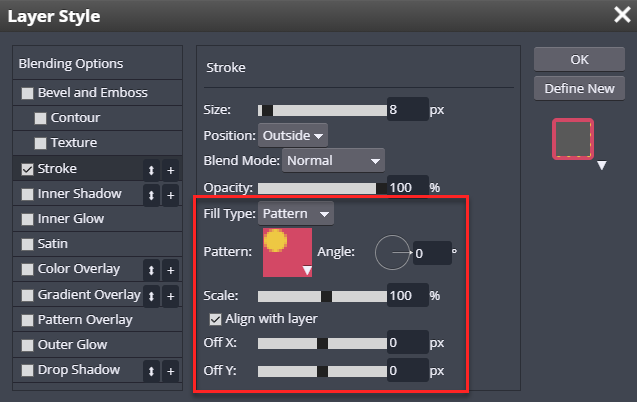

Pattern

Not only can you fill strokes with colors, but you can even fill them with patterns. This option is very cool and fun! The Pattern option also has several properties you can play around with.

How to Create an Offset Stroke in DesignScape 8

The following is an example of a stroke filled with a pink and yellow polka-dot pattern.

How to Create an Offset Stroke in DesignScape 11

Step 5 - Finish Editing the Stroke Layer

Change Text Color to Be the Same as the Stroke Color

With the Text Tool (T) enabled, select the stroke layer. Then click on the text color picker (next to the size) in the top toolbar, and click on the stroke portion of the text to change the text color (of the stroke layer) to be the same as the stroke color.

How to Create an Offset Stroke in DesignScape 13

Move Stroke Layer Below Text Layer

Because the stroke layer is on top, we can't see the text layer. We will need to move the stroke layer down. Click and drag the stroke layer below the original text layer.

How to Create an Offset Stroke in DesignScape 14

Notice the new order of the layers in the following image.

How to Create an Offset Stroke in DesignScape 15

Step 6 - Save/Export Project

Now you can save or export your project. You'll have to turn off the background layer to save it as a transparent PNG file, or if needed, you could turn off one layer and save it as separate PNG files.

You have finished creating an offset stroke in DesignScape! Use this technique to create unique looks for your text to enhance your designs.
